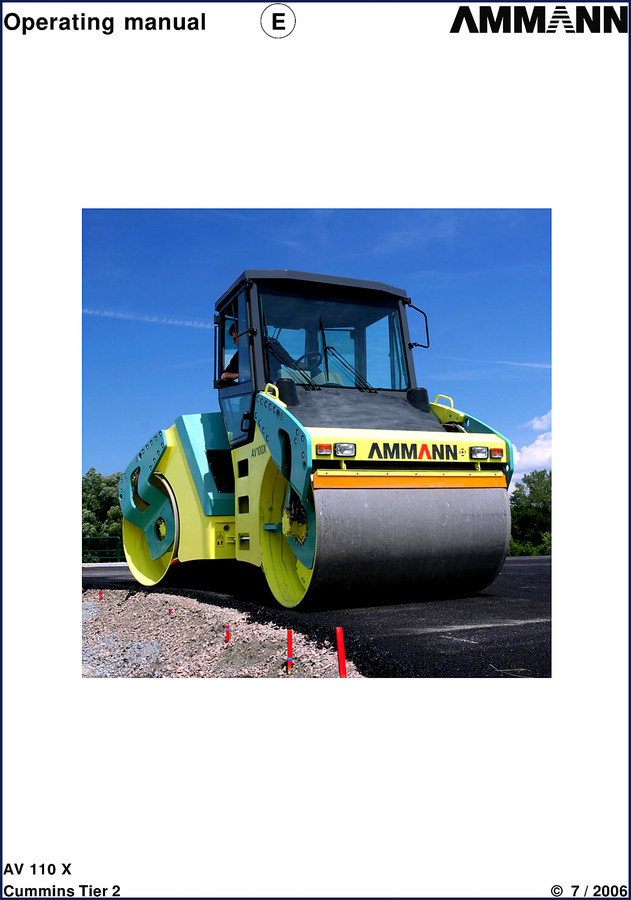

Ammann AV 110 X 2006 Operators Manual – Factory Specs You Can Trust

If you are running an Ammann AV 110 X 2006 Operators Manual on your workbench, you already know the difference between a real OEM document and a third-party reprint. I have seen too many operators rely on generic spec sheets that get the hydraulic oil viscosity wrong or omit the engine break-in procedure. This 154-page factory manual from Ammann gives you the exact data the engineers wrote. No guesswork, no aftermarket filler. Let me walk you through what is inside and why you need it.

Engine Specs and Technical Data

Section 1 of the manual (Specification Manual) covers the machine from the ground up. You get the engine data in chapter 1.3.4 – displacement, rated power, and operating rpm. That is critical when you are setting the throttle or diagnosing a power loss. The manual also lists the weights, vibration frequencies, and travel hydrostatic drive specs. If you are replacing a pump or adjusting the vibration system, you need those numbers from the factory, not from a forum post.

What Safety Procedures Are Covered?

Chapter 2.2 (Major Safety Precautions) is not a generic list. It includes ROPS cab requirements, banned operations, and hand signals. It also tells you exactly what the driver’s liabilities are under the traffic regulations. I have watched a guy try to tow a roller without the manual’s procedure – it bent the tow hitch. That section is worth the price of the manual alone. Every operator should read it before the key turns.

3 Maintenance Sections You Cannot Skip

The Maintenance Manual (Section 3) is organized by hour intervals. You have the 20-hour daily checks (oil level, coolant, hydraulic tank, belt condition) and the 250-hour / 3-month tasks (engine oil exchange, injection pump check, battery inspection). Each operation has a sub‑section like 3.6.1 for engine oil checking. The manual also gives you the fluid specifications – engine oil viscosity, gearbox oil, hydraulic oil, and grease types. Using the wrong oil in a Cummins Tier 2 engine will cost you a rebuild. Period.

Read the Operating Instructions Before You Start

Section 2 (Operating Instructions) includes machine description, control apparatus, and the exact start-up sequence: engine start, drive, emergency stop, sprinkling, and parking. It also covers how to tilt the bonnet for access. If you have ever struggled with a stuck emergency brake on a roller, the manual’s procedure will save you an hour of cursing. For those also working on Manual Transmission equipment, the principles of fluid power are similar – but the roller’s hydrostatic drive has its own quirks. The manual spells them out.

Hydraulic Systems: What the Manual Reveals

Chapter 1.3.7 through 1.3.10 cover the travel hydrostatic drive, vibration hydrostatic drive, pumps drive gear box, and hydraulic tank cooling. You get the operating pressures (if listed) and fill capacities. The manual even includes the tilting engine hood / emergency braking system. If you are troubleshooting a weak vibration, you need the factory flow and pressure specs. Aftermarket summaries leave that out. The OEM document gives you the diagram and the data together.

Related Manuals for Your Fleet

If you run other Ammann rollers, these factory operators manuals follow the same format:

• Ammann ASC 100 2006 Operators Manual – Factory Specs for Compaction
• Ammann Rammax 1585 2013 Operators Manual – Factory Specs for Trench Rollers
• Ammann AP 240 2012 Operators Manual – Factory Specs for Pneumatic Roller

Each one is 100% OEM – no reprints, no missing pages. If you maintain a Manual Transmission in a different machine, the lubrication specs differ – but that is a different manual. For the AV 110 X, this is the only one you need.

Does this manual cover engine oil specifications?

Yes, section 3.2.1 specifies the engine oil type and viscosity for the Cummins Tier 2 engine.

What is included in the safety precautions?

The manual dedicates an entire section (Major Safety Precautions) covering everything from ROPS cab requirements to hand signals. It also details banned operations and driver liabilities. If you have ever had a safety inspector on site, you know how critical these pages are. The manual lays out exactly what is required per regulations, not just suggestions. It also includes ecological and hygienic principles, so you stay compliant with disposal laws.

How often should I check the engine coolant?

Every 20 hours or daily, as per the maintenance chart.

Is this the same as a service repair manual?

No, this is the Operators Manual. It covers operation and daily/weekly maintenance (lubrication, checks, adjustments). For engine overhauls or transmission rebuilds you need the Service Repair Manual – but the operators manual gives you the foundation to avoid wrecking the machine before it needs a rebuild.

After spending 28 years in a shop, I can tell you that the difference between a smooth-running roller and a downed machine is often a missing spec from the manual. This Ammann AV 110 X 2006 Operators Manual puts every relevant number in front of you. Download the Factory Manual and keep it with the machine.
