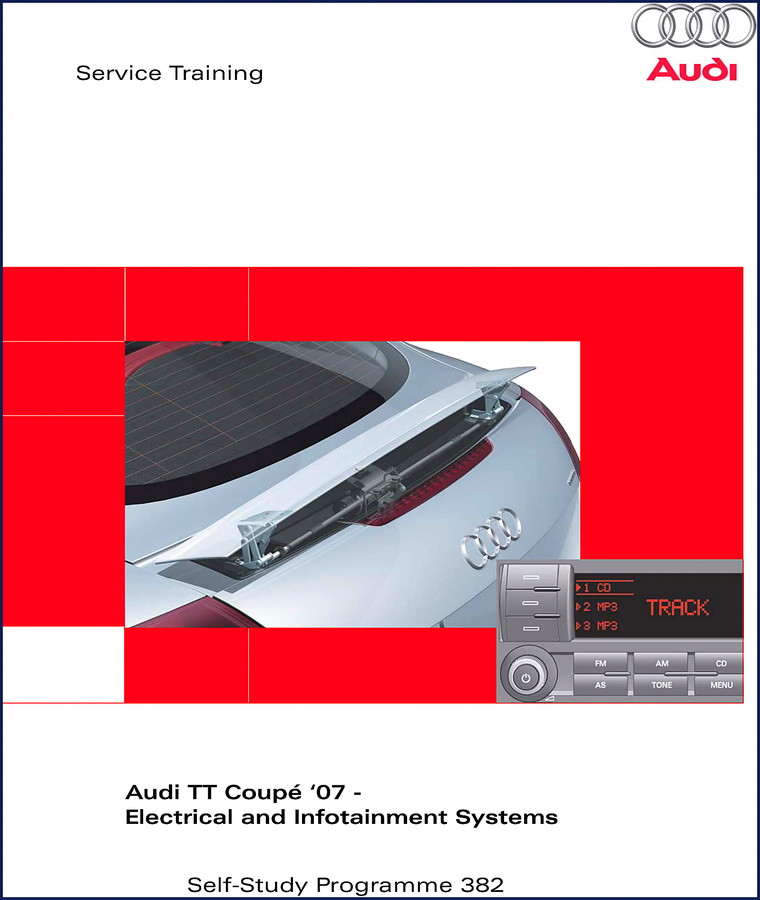

Aftermarket manuals that skip bus system details or give wrong pinouts for the J533 gateway are the reason you chase electrical gremlins for hours. I’ve seen it. The Audi TT 2007 Training Manual (Self-Study Programme 382) is not a repair manual – it’s the factory’s own walkthrough of how the convenience electronics and infotainment network on a 2007 TT Coupé actually work. 56 pages of OEM wiring philosophy, control unit locations, and data bus structure that aftermarket publishers ignore.

This training document came from Audi’s service training department. It teaches design and function, not repair procedures. But if you are diagnosing a dead radio, a J393 convenience module that won’t talk, or a BNS 5.0 navigation unit that loses GPS, this is where you start. Because you need to understand the network before you grab a multimeter.

What Does the Audi TT 2007 Training Manual Cover?

Open to page 4 and you get the topology and networking diagram. That single page shows you which bus each control unit lives on – drivetrain CAN, convenience CAN, infotainment CAN, and LIN subsystems. Follow that to page 6 for the installation overview of every control unit location. Need fuse and relay assignments? Page 8 lays them out. From there the manual splits into two main sections: Electrical system and convenience electronics starting on page 10, and Infotainment starting on page 36. Each section breaks down individual components with block diagrams, signal paths, and diagnostic hooks that aftermarket diagrams never include.

Network Topology and Control Unit Locations

The TT Coupé ’07 adopted the A3 ’04 electronic architecture but added an automatic rear spoiler triggered by the J393 convenience system central control unit. The manual explains how the J533 data bus diagnostic interface (gateway) manages communication between the three main CAN buses. You’ll see the exact wiring for the J285 control unit with display (dash panel insert) and the J519 onboard power supply control unit. If you are chasing a parasitic draw or a module that won’t wake up, the installation overview on page 6 shows where each box sits – including that hidden parking aid control unit J446 behind the rear trim.

I’ve used this manual to pin down a no-start caused by a failed gateway. Without the topology map, you waste hours unplugging modules randomly.

3 Key Electrical Systems: Convenience, Lighting, and Bus

The electrical system section (page 10–34) covers four critical areas:

• Data bus diagnostic interface J533 – gateway coding and diagnostic access
• Onboard power supply J519 – lighting management, wiper control, and battery monitoring
• Front and rear outside light circuits – LED vs halogen wiring differences
• Convenience system J393 – central locking, alarm, and rear spoiler activation

Each subsystem includes a block diagram and component list. That saves you from pulling the wrong fuse or assuming a relay is bad when it’s a bus communication fault.

The battery section on page 19 explains the battery management control unit and how the car monitors state of charge. This matters when you see a draw test that won’t stabilize.

Infotainment: Factory Diagnostics for Radio and Navigation

Infotainment starts on page 36 with the 2-DIN radios – Chorus, Concert, and Symphony. The manual covers the new reception concept and MP3-compatible CD drives. MP3 basics and ID3 tag handling are on page 41. For the navigation system, page 42 details the BNS 5.0 with MMI user interface and CD-based map data. Sound systems get their own coverage on page 47, including the BOSE Surround Sound setup with 12 speakers and a 255-watt amplifier. Even the Apple iPod adaptor (page 50) and aerial systems (page 52) are documented.

If a Symphony head unit won’t play MP3 discs, the manual shows the signal path and the voltage levels at the CD drive. That is data you cannot get from a Haynes or Chilton.

Related manuals you might need: Audi TT Coupé Design and Function Training Manual covers the body and chassis systems. Audi TT 2007 Training Manual is the same product. The Audi TT 2007 Suspension System Training Manual handles drivetrain and suspension diagnostics.

OEM vs Aftermarket: Why This Training Manual Wins

Aftermarket wiring diagrams are often reverse-engineered and contain errors. I’ve seen a popular online diagram show the wrong pin for the J519 headlight output – that will melt a plug. This manual was written by Audi engineers and validated on production cars. It includes the software version reference at the time of publication. For maintenance and repair, Audi tells you to use the current repair literature, but for understanding the system architecture and diagnosing bus-related faults, this training manual is the real deal. Check the Automotive Industry Overview for context on how manufacturers structure training documents. Automotive Industry Overview
