Bobcat 542B 1988 Service Manual – What You Get When You Stop Guessing

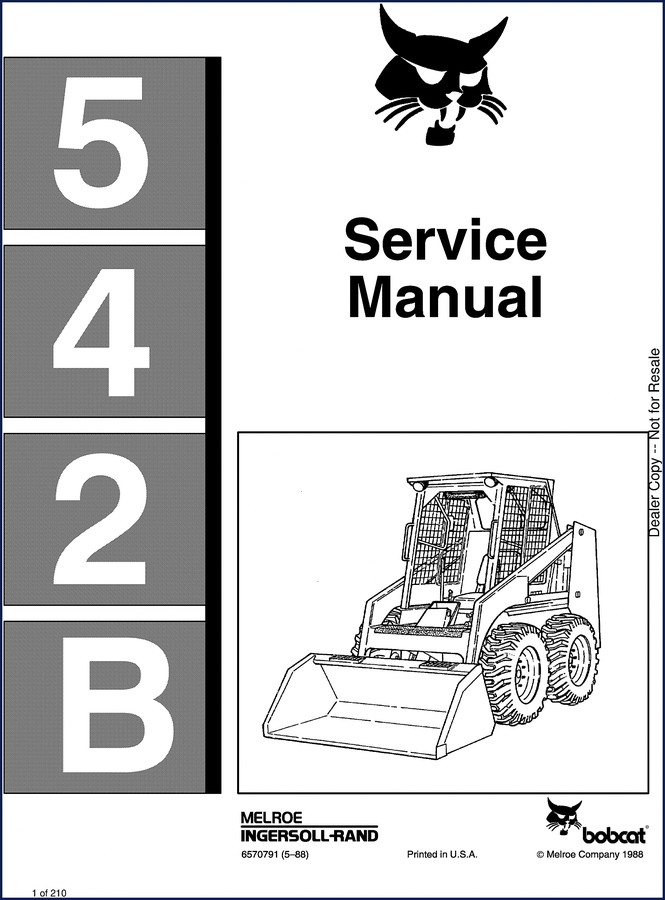

I’m Mike Callahan. 28 years turning wrenches, and I’ve seen more stripped threads and blown hydraulics from aftermarket manuals than I care to count. If you’re working on a Bobcat 542B 1988 Service Manual machine and you don’t have the factory book, you’re flying blind. This is the original Melroe/Ingersoll-Rand dealer copy – 210 pages of the exact specs the guys on the line used. No reprint guessing, no third-party shortcuts. Just the torque values, clearances, and safety procedures that keep that machine running and keep your hands attached.

What Torque Values Are Listed?

Every fastener on the 542B has a spec. The manual lists bolt torque for the engine mounting, wheel lugs, hydraulic fittings, and the lift arm pivot points. Need the charge pressure for the hydrostatic drive? It’s in there – but you have to read the manual, not the internet forum that says “about 500 psi.” Page 26 (I think – the book doesn’t number its pages the way we do, but you’ll find it) gives you the exact psi for the drive motor case drain. Don’t guess. That’s how you cook a pump.

Safety Warnings: Page 3 Is Not Optional

The first thing this manual does is hit you with MAINTENANCE SAFETY. It’s a full page of warnings that were written because somebody already got hurt. “Never service or adjust loader with the engine running unless instructed.” “Disconnecting any hydraulic tubeline can cause lift arms to drop.” “Use an approved lift arm support device.” If you think you can skip that part because you’ve done this a hundred times, you’re the guy I find with a crushed leg. The manual is clear: Maintenance procedures not in the Operation & Maintenance Manual must be performed ONLY BY QUALIFIED BOBCAT SERVICE PERSONNEL. That’s not a suggestion – it’s the rule.

7 Systems Covered – From Engine to Electrical

This service manual breaks the 542B into logical sections. You get the full engine overhaul procedure, the hydrostatic drive diagnostics, the hydraulic system with flow diagrams, the electrical schematic, and the drive train. Each section starts with a required tool list – stuff like a high‑pressure gauge, a cylinder bore micrometer, and a torque wrench that’s been calibrated within the last year. I’ve seen guys try to use a cheap beam‑type wrench on axle nuts and wonder why the hub wobbles. The manual tells you the tool, the range, and the sequence. Follow it.

Why OEM Beats Aftermarket for This Machine

I don’t care what the aftermarket PDF says – if it’s not stamped with the Melroe Company logo and printed in 1988, it’s suspect. This manual is the real thing. It was written by the engineers who designed the 542B, not by some guy in a basement who scanned a copy and guessed at the torque values. The page you’re buying is a direct reproduction of the dealer copy that sat in every Bobcat service bay in the 80s. The torque specs for the cylinder head bolts? They didn’t change when the internet was invented. Use the factory book because the factory knows where the weak points are – and they tell you how to avoid them.

For reference, I keep a copy of the Bobcat 542B Service Manual 1988 on my own bench. When a customer brings in a 542B with a hydraulic leak, I don’t reach for Google. I reach for the book. The Bobcat S175 2008 Service Manual – OEM Factory Repair Specs in the next bay over is newer, but the principles are the same – factory data, no speculation. And if you need a different model, check the Bobcat S185 2008 Service Manual – 998 Pages of Factory Specs for the later machines.

3 Reasons to Trust Factory Specs Over Forum Advice

First, the manual gives you the cold‑clearance specs for the injectors – something you’ll never get from a YouTube comment. Second, it shows the correct sequence for torquing the wheel lug nuts (cross‑pattern, three passes). Third, it details the lift‑arm support device requirements. If you think a 2×4 is good enough, you haven’t seen what happens when it snaps. The manual doesn’t care about your ego – it cares about your safety.

Need to understand how the manual transmission engages with the drive chain? A quick refresher on the Manual Transmission fundamentals can help, but the factory manual is the authority. Same for the Manual Transmission internal seals – the book shows the exact seal driver sizes. Don’t reinvent the wheel.

Does this manual cover the 542B’s fuel system?

Yes, it covers fuel system procedures, including injection pump timing and injector removal.

What safety precautions are included?

Page 3 is a full page of warnings: never service with engine running unless instructed, avoid hydraulic injection injuries, use approved lift arm supports, keep rear door closed except for service, wear eye protection, and never modify attachments without Bobcat approval. The manual also requires that any maintenance beyond daily service be performed ONLY by qualified Bobcat personnel. That’s the law according to Melroe.

Are there wiring diagrams in this manual?

Yes, the electrical section includes a full schematic with wire colors and connector locations.

How many pages is it?

210 pages of original factory content.

If you’re working on a Bobcat 542B, you need the book that doesn’t let you guess. Download the Factory Manual. It’s the difference between a job done right and a comeback that costs you a weekend.
