Cagiva NAVIGATOR Workshop Manual – Factory Torque Specs and Procedures

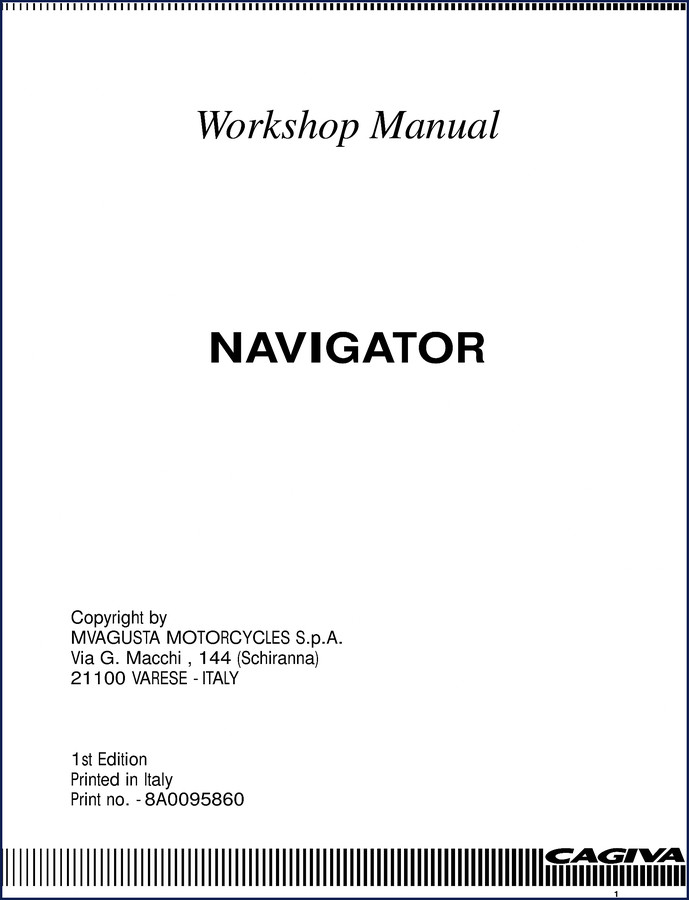

You are pulling a Cagiva NAVIGATOR top end because the owner says it’s smoking. The bike is a 2000 model, but that doesn’t matter. What matters is that the manual you’re using says “tighten head bolts to spec” without giving you the numbers. That’s how you get a warped head and a customer who wants his money back. I’ve been turning wrenches for 28 years, and I will tell you straight: aftermarket manuals are not worth the paper they’re printed on. The Cagiva NAVIGATOR Workshop Manual is a 407-page factory document that came out of the same factory that built the bike. It gives you the exact tightening sequence, the torque values in ft-lb, and the steps that keep you from breaking something expensive. This is the manual you want on your bench, not a PDF scraped from a forum.

Engine Coverage: Section D 119 – What the Factory Manual Reveals

The engine section starts on page 119 and runs through page 298. That’s 180 pages of nothing but the motor. You get the disassembly procedure for the cylinder head, the valve clearance specs, the piston ring gaps, and the crankshaft bearing tolerances. The manual uses the factory numbering system so you can order the right gasket kit without playing match-the-picture. If you are rebuilding a NAVIGATOR engine, you need the oil pump clearance checks and the cam chain tensioner adjustment procedure. The manual includes the shim selection chart for the valve adjustment – no guesswork. Every bolt in the engine has a torque value listed in the tightening torques section (page 394). That is not optional. Use a beam torque wrench, click-type, doesn’t matter as long as it’s calibrated. The manual tells you to replace the head gasket every time. I’ve seen guys reuse them and then wonder why the coolant is bubbling. Follow the factory procedure.

Injection – Air Intake System: Section C 45 – Fuel Delivery Without the Guesswork

The injection system on the NAVIGATOR is a Weber-Marelli unit. The manual covers the throttle body removal, the injector flow testing, and the TPS adjustment procedure. Page 45 starts the injection section. It includes the wiring diagram for the ECU, the pinout for the diagnostic connector, and the idle speed adjustment steps. If you have a rough idle or a stumble off idle, the manual walks you through the fuel pressure test and the vacuum line routing. There is a specific note about the air intake temperature sensor resistance values. Those are not in the Haynes manual. The workshop manual also gives you the procedure for synchronizing the throttle bodies. You need a vacuum gauge set and the manual tells you which ports to use. That is the kind of detail that saves you an hour of chasing a vacuum leak.

Tightening Torques Section L 394 – Why OEM Specs Are Non-Negotiable

Page 394 is a table of every fastener on the bike with the torque value in Nm and the equivalent ft-lb. The manual uses metric hardware, but I convert to ft-lb for my shop. The chart includes the cylinder head nuts (specified in a cross-pattern), the connecting rod bolts, the swingarm pivot nut, and the brake caliper bolts. The manual also tells you to apply threadlocker on certain fasteners. If you use a generic torque spec from a forum, you risk stripping the threads in the aluminum crankcase. The factory manual is the only source I trust. I’ve had customers bring in bikes where the previous tech used a universal chart and snapped a camshaft cap bolt. That is a $200 mistake. The OEM spec is the spec. No exceptions.

Suspension and Wheels: Section E 299 – Not Just Bolt Removal

The suspension section covers the front fork disassembly, the rear shock removal, and the wheel bearing replacement. The manual includes the fork oil volume and viscosity spec. It also tells you the fork spring preload adjustment procedure. If you are rebuilding the forks, you need to know the correct oil level without the spring installed. The manual gives you that measurement. The rear suspension linkage has a specific torque for the eccentric adjuster. I’ve seen the adjuster seize because someone used the wrong grease. The manual specifies the grease type. The wheel section includes the spoke torque pattern for the wire wheels. Most aftermarket manuals skip that. The factory manual is thorough.

Safety Warnings and Accident Prevention – Read This Before You Start

The manual starts with a section on accident prevention rules. It is not boilerplate. It tells you to support the bike properly when removing the engine, to disconnect the battery before working on the electrical system, and to use the specific tooling listed in section I (page 390). The manual also warns about the risk of fuel injection pressure – you need to relieve the pressure before opening the fuel line. There is a danger of fire if you don’t. I’ve seen a shop burn down because a tech loosened a fuel line without depressurizing. The manual is written for a professional mechanic, but the language is clear enough for a home garage enthusiast if you take your time. The required tool list includes a flywheel puller, a clutch holding tool, and a vacuum gauge. The manual gives you the part numbers for the genuine Cagiva tools. You can often find aftermarket equivalents, but the manual tells you the dimensions so you can source them.

FAQ – Common Questions About the Cagiva NAVIGATOR Workshop Manual

Does this manual cover the fuel injection system?

Yes, it covers the Weber-Marelli injection system from section C 45, including throttle body removal, injector testing, and ECU diagnostics.

What torque values are listed in the manual?

Section L 394 on page 394 provides a complete torque table for every fastener on the bike, including the engine, suspension, brakes, and chassis. The values are given in Nm and ft-lb. The manual also specifies the tightening sequence for critical fasteners like the cylinder head and connecting rods. This is not a generic list – it is the factory spec from Cagiva. If you are rebuilding an engine, you need this table. The manual also includes notes on when to apply threadlocker or grease, which is just as important as the torque number.

Is this manual for the Cagiva Navigator only, or does it cover other models?

This workshop manual is specifically for the Cagiva NAVIGATOR. It does not cover the Raptor or other models. For the Raptor, see the Cagiva Raptor 1000 V-Raptor 1000 Workshop Manual. For older equipment, check the Massey-Harris-Ferguson TEF20 1956 Workshop Manual – OEM Specs or the IKA Renault Tornado Engine Workshop Manual – OEM Specs.

What year models does this manual cover?

The manual does not specify a year range, but it covers the Cagiva NAVIGATOR from its introduction. The factory publication date is not listed, but the manual is original OEM. For a general understanding of manual transmission types, see the Manual Transmission article on Wikipedia. The torque specs and procedures are valid for all NAVIGATOR variants. If you have a specific model year question, contact the manufacturer.

If you are working on a Cagiva NAVIGATOR, you need the factory data. The aftermarket manuals are missing the details that keep you out of trouble. The Cagiva NAVIGATOR Workshop Manual gives you the torque specs, the wiring diagrams, the injection system procedures, and the engine overhaul steps. Stop chasing your tail with vague instructions. Get the spec sheet that matters. Manual Transmission knowledge is helpful, but for the Navigator, you need the OEM manual. Download the Factory Manual from AutoRepairManuals and put it on your tablet or print it out. Your workbench will thank you.
