Case CX290 2002 Service Manual

You got a CX290 throwing codes on the monitor, and that third-party PDF you bought last year shows a different wiring diagram. I’ve seen it happen: a tech wastes two hours chasing a ghost because the aftermarket manual had the pinouts swapped. The Case CX290 2002 Service Manual stops that. 582 pages of what the factory printed in April 2002. Every torque spec, every diagnostic procedure, every hydraulic pressure setting comes straight from Case’s engineering department.

Flip to Section 4 – Electrical System. Page 76 walks you through electrical system troubleshooting with the actual flowchart Case uses. No guesswork on which relay clicks. The manual shows the fuse box layout, the instrument panel, and the diagnostic code readout procedure. You need to re‑initialise the monitor after a battery swap? The exact sequence is in Section 4.

Electrical System Diagnostics – Section 4001

Electrical problems on a CX290 often trace back to the electronic control boxes. Section 4001 covers the main and engine electronic control boxes. The manual includes the protection circuit for the power transistor and the supply cut‑off delay. If you get a code for the fuel injection pump electronic regulator, the diagnostic tree tells you which wires to check first. That beats swapping parts.

Auto Engine Warm-Up: What Page 26 Tells You

Page 26 details the auto engine warm‑up procedure. Most aftermarket books skip the parameters – this one tells you the coolant temperature threshold and the RPM ramp. If you try to bypass the warm‑up cycle without understanding the logic, you’ll get a false code. The manual also covers automatic engine preheat and idle checking using battery voltage and coolant temperature. That level of detail matters when a machine won’t start in cold weather.

Does This Manual Cover the Fuel System?

Yes – Section 3. Fuel tank removal is in section 3001, and the fuel engine system subsection covers the injection lines and filters. The manual shows the low‑pressure side and the high‑pressure regulator. No generic fuel system diagram; it’s specific to the CX290’s pump and injector setup. Combine this with the Case CX290 Parts Catalog – OEM Factory Part Numbers to order the right seals the first time.

3 Critical Sections for the Undercarriage

Undercarriage work is heavy and expensive if you mess it up. Section 5 covers track removal, rollers, sprocket, and idler wheel with tension shock absorber. Section 6 gets into drive motor and final drive transmission, swing reduction gear, and travel reduction gear. Each procedure lists the required tool list – you’ll need a sprocket puller and a torque multiplier for the final drive bolts. The manual warns about safety when depressurising the track tension.

Hydraulic Pressure Settings – Why You Need Section 8001

Hydraulic system work without factory specs is dangerous. Section 8001 has specifications, troubleshooting, checks, and hydraulic pressure settings. Section 8000 covers depressurising and decontaminating the system using the vacuum pump. If you skip the bleed procedure, you’ll aerate the pump and lose swing control. The manual includes disassembly and assembly for the main hydraulic pump, control valve, attachment cylinders, swing motor, and travel motor. The caution valve and safety valve sections tell you how to avoid a 3,000‑psi surprise.

For the beginner or the home garage enthusiast working on an excavator, this manual is the difference between a successful repair and a hydraulic fluid bath. You don’t need to guess the pilot pressure – it’s in the book. You don’t need to guess the swing brake release sequence – Section 6. The factory also includes prior inspections and a reading of the organisation charts to walk you through the troubleshooting logic.

Source Validity – OEM vs Aftermarket

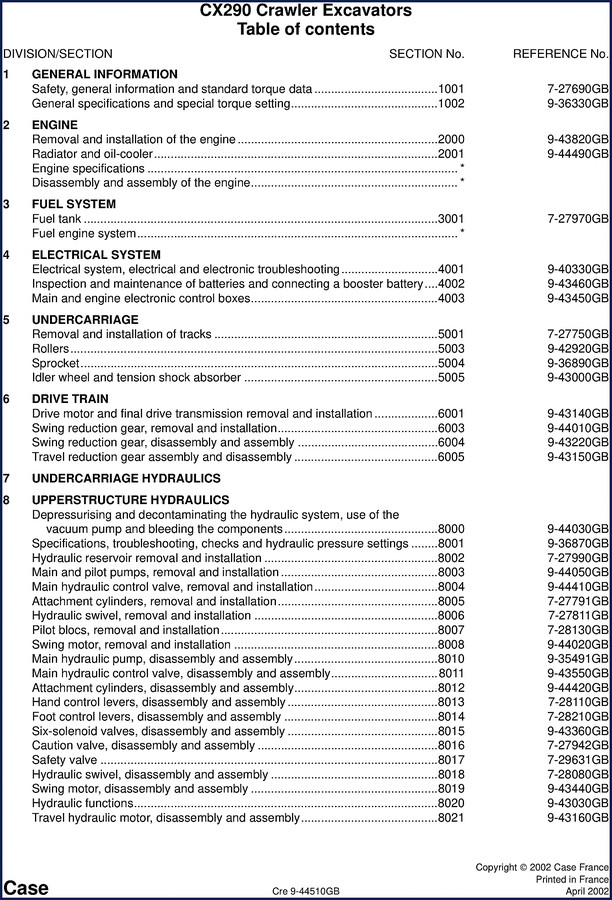

Aftermarket manuals for the CX290 often copy an earlier edition and miss the 2002 updates. This file is a direct scan of the original Case publication, Cre 9‑44510GB, printed in France in April 2002. No reprints, no third‑party reinterpretation. The copyright is Case France. Compare that to a generic service manual that lumps the CX290 with other models and you’ll see why 582 pages of model‑specific content save you from ordering the wrong parts. Pair it with the Case CX290 2002 Operators Manual – OEM Factory Document for daily operation guidance, or the Case CX290 2001 Technical Manual – OEM Factory Specs if you need earlier model data for cross‑referencing.

You can also check out Manual Transmission for general drivetrain concepts, but for the CX290’s specific transmission, this service manual is the only source you should trust. Manual Transmission is another external reference, but again, the factory document is your final authority.

Frequently Asked Questions

Is this manual in English?

Yes. The entire 582 pages are in English. Copyright and printing notes are in French and English, but all procedures, torque specs, and diagrams use English text.

Does it include torque specifications for the swing motor mounting bolts?

The manual has a dedicated “General specifications and special torque setting” section (reference 1002) in Division 1. It lists standard torque data for all common bolt grades plus special torque values for the swing motor, final drive, and attachment cylinders. For example, the swing reduction gear removal and installation section (6003) references the specific torque sequence. Do not rely on generic charts; this book gives the exact ft‑lbs for each fastener on the CX290. If you need the hydraulic pressure settings, Section 8001 has those too.

When you’re working on a machine that costs six figures, you don’t cut corners on documentation. Download the Factory Manual and keep it on your tablet in the shop. One lookup can save you an afternoon of backtracking.
