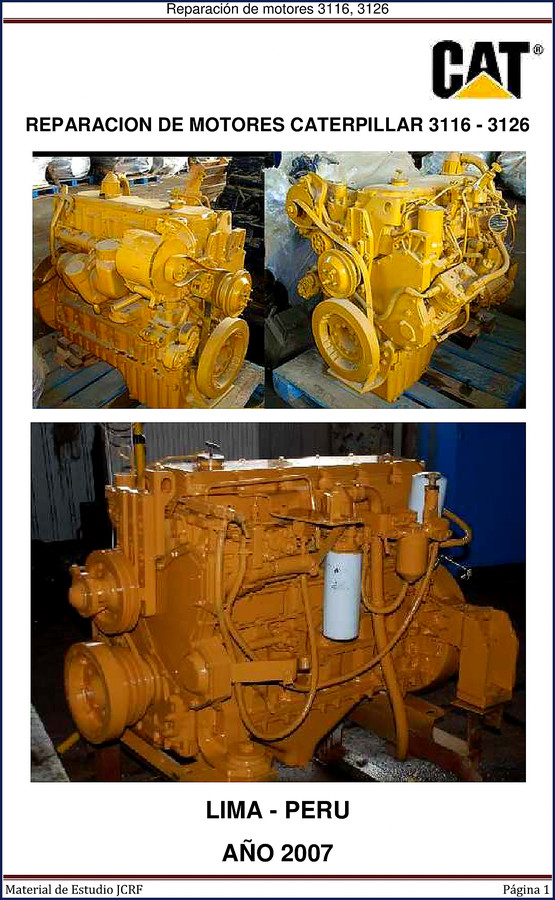

Caterpillar 3116, 3126 2007 Repair Manual

I’ve been turning wrenches for 28 years. I’ve seen more busted knuckles from guys using aftermarket manuals than from actual engine work. This Caterpillar 3116, 3126 2007 Repair Manual is the real deal – a factory document, not some third-party translation. It covers the 3116 and the 3126, two engines that share a lot of architecture but have distinct specs you need to respect.

Valve Removal Procedure – Page 4

You want to pull the valves? The manual walks you through it step by step. Tool list includes the Caterpillar 5S-1330 valve spring compressor. That’s a specific tool – don’t try a c-clamp. Keep everything clean. Contaminants cause accelerated wear. That caution is right on page 4. Follow the procedure in the manual: compress spring, remove retainer locks, lift out the valve. Install new seals. It’s that direct.

Does This Manual Cover the HEUI Fuel System?

Yes. The 3116 and 3126 use HEUI injectors. This repair manual includes the fuel system disassembly and assembly instructions. HEUI injection pressure is critical. You’ll find the high-pressure oil pump and injector removal steps in here. Aftermarket manuals often gloss over the specific seal and o-ring sizes. This factory document doesn’t.

131 Pages of Factory Repair Information

This isn’t a condensed booklet. 131 pages of procedures – full engine disassembly and assembly, from intake manifold to oil pan. Each section lists required tools by Caterpillar part number. For related training material, look at the Caterpillar 3126 HEUI Engine Service Training. That complements this manual.

Operator-level daily checks are in the Caterpillar 3116, 3126, 3114 2010 Operators Manual – Factory Specs. For more workshop-level detail on earlier models, the Caterpillar 3116, 3126, 3114 2005 Workshop Manual – Factory Disassembly & Assemb is also available. But this 2007 repair manual is the core reference.

OEM Documentation: Why It Matters

Aftermarket manuals pull specs from wherever they can. I’ve seen torque sequences that would warp a head. This factory manual preserves the exact order – for example, the head bolt tightening pattern. Don’t trust a generic repair guide. The 3116 and 3126 have different injector configurations. You need the factory data.

Get the Right Tool List Before You Start

The manual calls out specific tools: 5S-1330 valve spring compressor, plus pullers and adapters for the fuel system. I’ve had guys show up with a hammer and a pry bar – that’s how you ruin a camshaft. Read the tool list first. Manual Transmission knowledge won’t help you here, but the workshop procedure will. Manual Transmission is unrelated – focus on the engine manual.

FAQ

Is this manual in English?

No, it’s in Spanish.

What specific torque values are provided?

Torque values are given for critical fasteners like cylinder head bolts, connecting rod bolts, and main bearing cap bolts. The manual references Caterpillar specifications, not generic numbers. For example, the valve spring compressor tool is specified as 5S-1330. Torque specs appear in the assembly procedures. Always use a calibrated torque wrench – not a “feel” torque. The manual also includes notes on reusing components like valves and springs, with cross-references to reusable parts guides SEBF8002 and SEBF8034. Without those torque values, you risk leak paths or catastrophic failure.

You want a manual that sits on the bench and gets dirty. This is it. Factory pages, factory specs, no translation losses. If you’re working on a Caterpillar 3116 or 3126, this is the document to have. Download the Factory Manual now and stop guessing.
