Caterpillar CTG, CTGD 2002 Electrical Schematic – Factory OEM Wiring Manual

I’m Mike Callahan, 28-year ASE Master Tech. I’ve seen more burned-up transfer switches than most electricians have traced circuits. If you’re working on a Caterpillar CTG, CTGD 2002 Electrical Schematic ATS and don’t have the factory wiring diagram, you’re flying blind. This 60-page manual is the real deal—OEM, no aftermarket garbage, printed January 2002. You need the correct power circuit layouts for 3/4 pole and 2 pole configurations, and this has them, amp range by amp range.

What’s Inside This 60-Page OEM Electrical Schematic

Open the PDF and you’re looking at the Table of Schematic: CTG from 40–200 Amp up to 1600–3000 Amp, each with 3/4 Pole and 2 Pole sheets. CTGD covers 40–260 Amp, 400, 600–3000 Amp. Then there’s the Options section—C/D One Channel Clock, Two Channel Clock, C/D-365, HT, Q2, Q3, ZNET100, 6A. The Component Locations Index (pages 33–42) maps out cabinet door locations, MX100, customer connection, and the power panel. You get the relay/transformer box schematic for standard and delayed variants. And at the back? Tightening Torque for Lugs. Page numbers are hyperlinked—click to jump. No flipping through a binder.

CTG vs CTGD: Amp Range and Configuration Differences

CTG covers 40–200, 225–260, 400, 600–1200, and 1600–3000 Amps. CTGD starts at 40–260 and goes to 400, then 600–3000. The power circuit layouts differ: 3/4 Pole and 2 Pole. For example, CTG 40–200 Amp 3/4 Pole is Sheet 1 of 2 on page 3. CTGD 40–260 Amp 3/4 Pole uses a different sheet. The OEM manual keeps them separate because the wiring changes with amp ratings. Grab the wrong sheet and you’ll wire the neutral wrong—ask me how I know.

Options and Accessories: Clock, HT, and More

The CTG(D) Options section includes the C/D One Channel Clock, Two Channel Clock, and the C/D-365 model. Also HT (heater transformer?), Q2 and Q3 auxiliary contacts, ZNET100 communication, and the 6A option. Each option has its own schematic sheet. If your ATS has a clock, you need the correct page—page 35 for Two Channel Clock. Don’t use a generic aftermarket print; they’ll have the wrong pinouts. This factory manual is the only source you can trust.

Torque Specs for Lugs – Why the Page Matters

The manual ends with a “Tightening Torque for Lugs” section. That’s not in the table of contents as a page number, but it’s there. I’ve seen lugs torqued by feel come loose and arc. You need the ft-lb value for each stud size. Aftermarket manuals guess. This one gives you the factory spec. Use a calibrated torque wrench—no click-and-pray. The component location index (page 33) shows where the lugs are on the power panel.

Wiring Layouts: Power Circuit and Layout Sheets

Each amp range has Sheet 1 and Sheet 2. For CTG 40–200 Amp 3/4 Pole, Sheet 1 (page 3) shows the ATS power panel layout, bridge rectifier, main transfer operator, and all three lines—Normal (N1,N2,N3,NN), Emergency (E1,E2,E3,EN), and Load (T1,T2,T3,TN). Sheet 2 (page 4) covers the relay/transformer box schematic with control transformers, sensors, and coil control relays CCE and CCN. The color codes for transformer leads are printed: BK black, BK/W black/white stripe, BL blue, etc. That saves hours of chasing wires.

FAQ

Does this manual include the component location index?

Yes. Pages 33–42 list cabinet door, MX100, and power panel locations.

What amp ranges are covered for the CTG and CTGD?

CTG covers 40-200, 225-260, 400, 600-1200, and 1600-3000 amp ranges with both 3/4 pole and 2 pole layouts. CTGD covers 40-260, 400, 600-3000 amp ranges similarly. The manual also includes options like C/D clocks, HT, Q2, Q3, ZNET100, and more. Page 2 gives the full table of schematic references. That’s critical because wiring changes between amperages—you can’t guess. If you have a 600 Amp CTG and use the 400 Amp sheet, you’ll have the wrong control transformer connections. The OEM saves your ass.

Source Authenticity: Factory OEM vs Aftermarket Copies

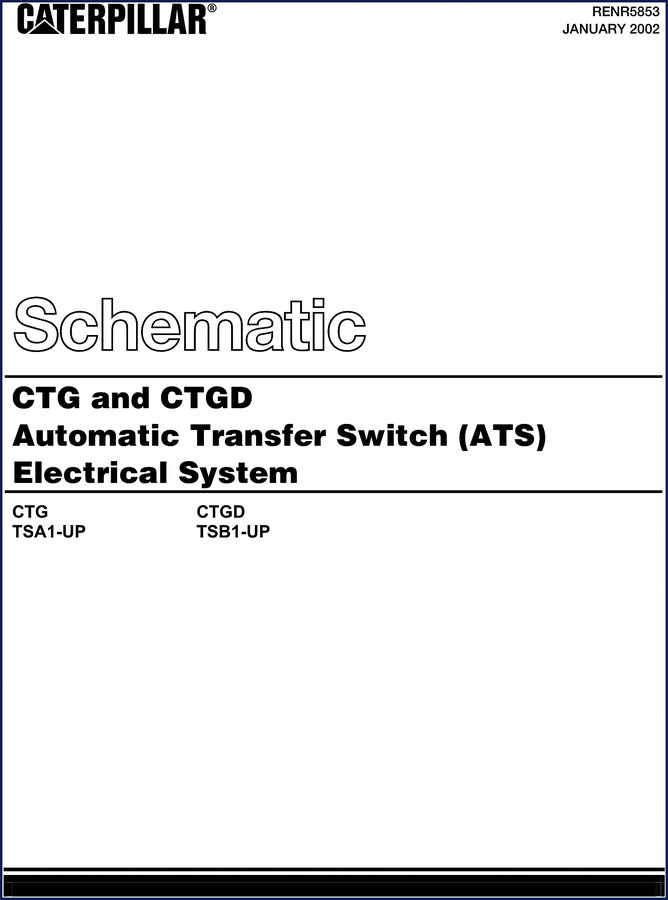

This is the original Caterpillar RENR5853 schematic. The PDF has the factory bookmarks, the glossary of standard features, and the Adobe Acrobat shortcuts. No reprints, no third-party scans. I’ve seen aftermarket manuals with missing pages and wrong wire labels—one nearly cost a shop a $12,000 controller. Don’t risk it. Use the real thing.

For other Caterpillar electrical diagrams, check out the Caterpillar 246C, 256C, 262C, 272C, 277C 2012 Electrical Schematic – OEM Factory for compact track loaders, or the Caterpillar D8T 2014 Electrical Schematic – Factory OEM Wiring Manual for dozers. Also related: Caterpillar D6R 2010 Electrical Schematic – OEM Factory Manual.

If you need a crash course in reading these diagrams, the Automotive Wiring basics apply, but ATS-specific logic requires factory documentation. For industry context, see the Automotive Industry Overview. But honestly, you don’t need background—you need the schematic. Download the Factory Manual now and get back to work.
