Caterpillar D6F, D6G Troubleshooting Manual – OEM Factory Procedures

If you are tearing into a Caterpillar D6F, D6G Troubleshooting Manual track-type tractor, you need the factory troubleshooting manual. Not a reprint. Not a generic guide. This is 32 pages of OEM procedures designed to get you to the problem fast. I have seen guys waste hours chasing ghosts because they used aftermarket data. That stops here.

What You Get in This 32-Page Troubleshooting Manual

Every page is pulled from the Caterpillar factory archive. You get the same pressure tap locations, the same test procedures used in dealerships. The manual walks you through visual checks, operation checks, and instrument tests. It tells you exactly what to do when the power train acts up. No filler. No generic diagrams. You open it and start working.

Power Train Diagnostics: Why Visual Checks Come First

Page 2 of the manual explains why you start with visual checks before hooking up any gauges. A leaky hose or a loose clamp can mimic a bad pump. The manual gives you a checklist: look at fluid levels, inspect lines, check for debris. Then move to operation checks. This sequence saves you from pulling parts that are fine. I have seen it happen more times than I count.

Safety Procedure on Page 1 – Don’t Skip It

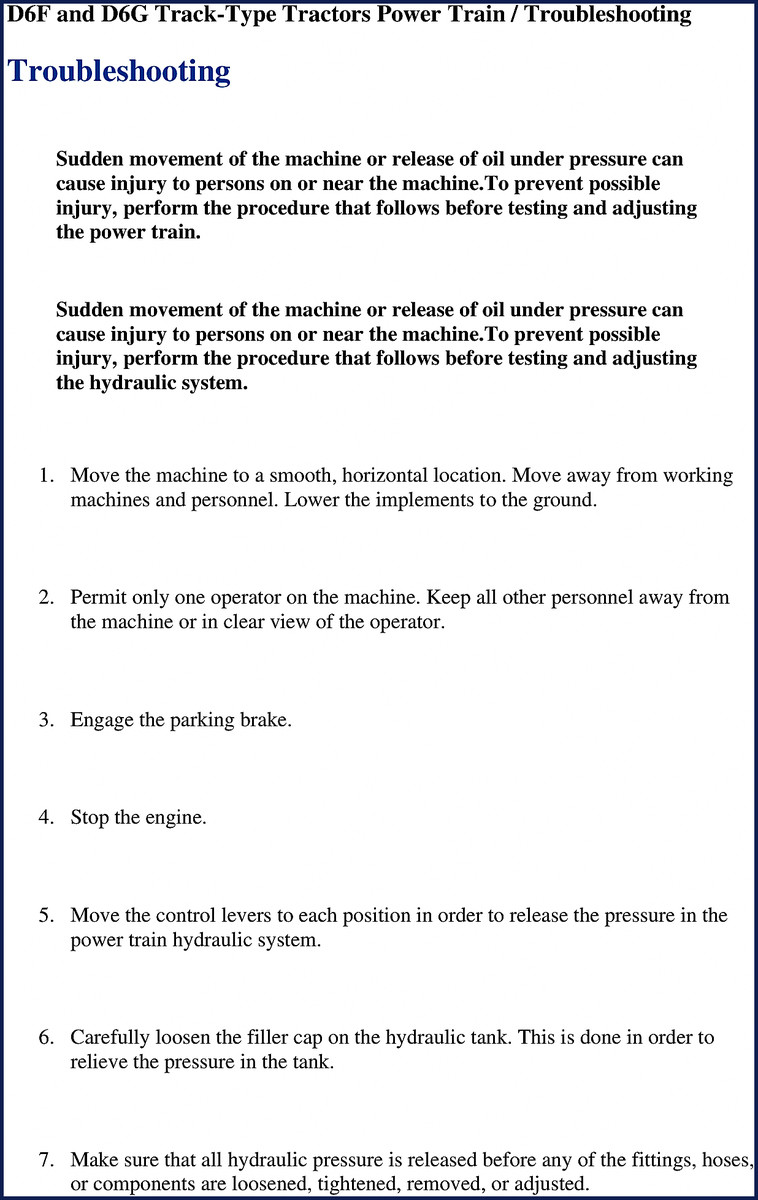

Page 1 is the safety lockout. The manual lists seven steps to release pressure in the power train and hydraulic system before you touch a fitting. Sudden machine movement or a pressurized oil stream can injure you. The procedure is clear: move to level ground, lower implements, engage parking brake, stop engine, work all control levers, loosen filler cap slowly, then verify zero pressure. Do it every time.

Does the Manual Cover Torque Specs and Fluid Capacities?

This is a troubleshooting manual, not a full service manual. It focuses on diagnostics. But it does include the pressure test points and the required test equipment. For example, it references the 6V-4160 Test Group for transmission hydraulics. Torque specs for final drive and transmission components are not listed here – you would need the corresponding service manual, like the Caterpillar D6G Technical Manual – 16-Page Factory Specs. That manual gets you the torques. Pair them together and you have a complete setup.

3 Steps to Diagnose Power Train Problems

Step one: visual checks. Step two: operation checks. Step three: instrument tests. The manual organizes everything around this flow. It lists probable causes for known problems, then cross-references specific inspections. If you still need more data, the manual tells you which pressure taps to hook up and what readings to expect. The power train on these tractors uses a Manual Transmission – understanding how the clutch packs and gear train interact is critical. The manual assumes you know basic driveline theory, but it gives you the factory test numbers.

Why Factory OEM Beats Aftermarket Documentation

Aftermarket manuals often copy the OEM content but miss the footnotes and updates. This manual is a direct scan of the original Caterpillar publication. The torque specs, the sequence of checks, the safety warnings – all factory verified. I have used aftermarket books that got pressure values wrong by 20 percent. That gets you a ruined transmission or a split hose. Spend the money on the real thing. While you are at it, check the Caterpillar CCB1 9EP1 8H51 6BS1 BCW1 2003 Troubleshooting Manual if you work on that model family, and the Caterpillar 3406B, 3406C 2003 Troubleshooting Manual – OEM Specs for engine applications. For a deeper understanding of manual transmission internals, see Manual Transmission basics.

Is this manual for D6F and D6G models only?

Yes. It covers D6F and D6G track-type tractors. No other models.

Does it include wiring diagrams?

This manual focuses on power train hydraulics and troubleshooting. It does not contain electrical wiring diagrams. It covers pressure taps, test procedures, and component checks. If you need electrical diagnostics, you will need the machine’s electrical schematic manual. However, the troubleshooting flow in this manual will help you isolate mechanical and hydraulic problems fast. For a wiring diagram, look for the D6F/D6G Service Manual.

Can I use this for a D6H?

No. This manual is specific to D6F and D6G. The D6H uses different components and different test points. Do not guess – get the right manual.

How do I download the manual after purchase?

After payment, you get instant access to the PDF. It is a fully searchable 32-page file. No waiting for shipping.

Stop chasing leaks with bad data. Get the factory document that the Cat techs used. Download the Factory Manual and start diagnosing right.
