Caterpillar D8R 2001 Parts Catalog – Factory OEM Part Numbers for 3406E-Powered D8R

You call your parts supplier, give them the serial number, and they send you a seal kit that doesn’t fit. That’s the difference between an aftermarket parts lookup and having the genuine Caterpillar D8R 2001 Parts Catalog on your screen. I’ve been wrenching on these machines since before they dropped the ‘R’ on the D8, and if you want the right part number the first time, you work from the factory book.

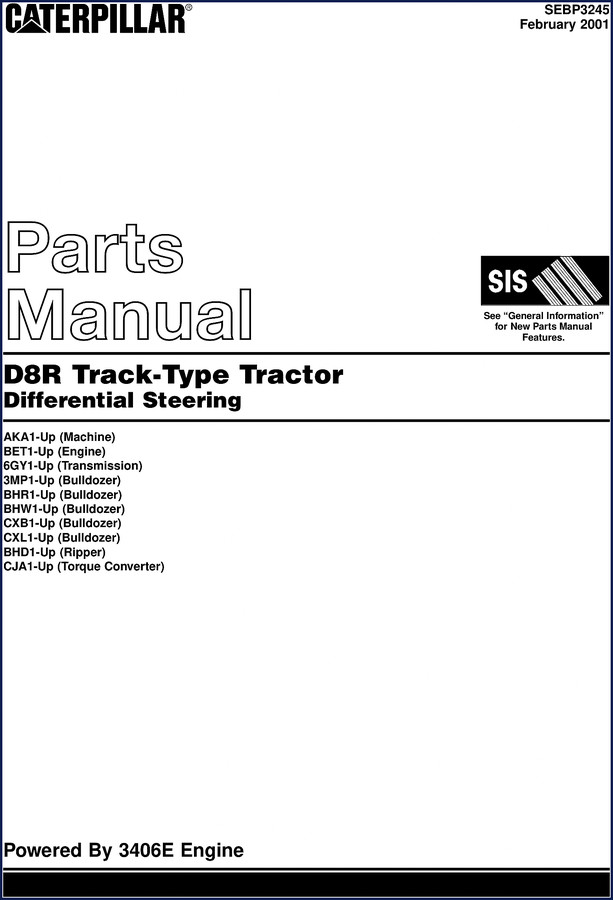

This is a factory-issued, 1086-page OEM Parts Catalog for the D8R Track-Type Tractor with differential steering, powered by the 3406E engine. Published February 2001, SEBP3245. Covers machine serial AKA1-up, engine BET1-up, transmission 6GY1-up, and multiple bulldozer/ripper attachments. This is not a reprint or a third-party compilation. It’s the same PDF the dealer parts counter uses.

Engine Arrangement and Basic Engine Groups

The catalog opens with general information and then dives into machine arrangement. Under ENGINE ARRANGEMENT you’ll find ENGINE AR-COMPLETE and ENGINE AR-CORE, plus installation groups. The BASIC ENGINE section is where the heavy lifting happens. Groups like CYLINDER HEAD GP, CAMSHAFT GP, PISTON & ROD GP, ROCKER ARM GP, and COVER GP-VALVE MECHANISM – that’s where you get the part numbers for the valve train. If you need a new valve cover gasket or a camshaft, you cross-reference your serial number prefix with the group. Page 1 includes the product identification information and serial number ranges, so you can confirm which parts apply to your machine. The detail in this section alone could save you a week of chasing wrong numbers.

7 Major System Groups in This 1086-Page Manual

The catalog is broken into these main system groups: Machine Arrangement, Engine Arrangement, Basic Engine, Lubrication System, Cooling System, Air Inlet and Exhaust System, Fuel System, Electrical and Starting System, Powertrain, Frame and Body. Each group contains subgroups for every component. For example, the Lubrication System includes the oil pump, filter, lines, turbocharger oil lines, and even a high-speed oil change group. The Cooling System covers radiators, fans (ejector, variable, reversible), water pump, coolant tank, and oil cooler. That level of detail is why 1086 pages aren’t wasted – every part number is listed with its description and illustration reference. You can pinpoint exactly which piston and rod assembly your engine takes, or which alternator bracket fits your machine’s build date.

That’s 1086 pages of factory data.

Which Sections Cover the Fuel System and Electrical System?

If you’re troubleshooting a fuel issue, go to the FUEL SYSTEM section. There you’ll find ADAPTER GP-FAST FILL FUEL, BASE GP-FUEL FILTER, FILTER GP-FUEL, FILTER GP-WATER SEP & FUEL, INJECTOR GP-FUEL, LINES GP-FUEL, PUMP GP-FUEL TRANSFER, TANK GP-FUEL, and VALVE GP-FUEL BYPASS. For electrical, the ELECTRICAL AND STARTING SYSTEM section has ALTERNATOR GP-CHARGING, BATTERY & WIRING GP, CONTROL GP-ENGINE ELECTRONIC, CONTROL GP-MACHINE, SENSOR GP-POSITION, SENSOR GP-PRESSURE, WIRING GP-ENGINE, WIRING GP-PLATFORM, and many more. The wiring groups include harness part numbers – critical when you’re replacing a damaged harness. Having the factory diagram reference means you get the correct pinout and connector.

OEM Parts Catalog vs Aftermarket: Why Factory Specs Matter

Aftermarket parts catalogs often combine supersession histories incorrectly. They might show a part number that was replaced five years ago, or omit the latest update. This factory catalog from 2001 includes all original part numbers and their replacements as of that publication date. The ‘REPAIR ALTERNATIVES’ section at the front tells you which parts can be repaired versus replaced. And the indexes in five languages (English, French, Spanish, Portuguese, German) let you look up parts by name if you don’t know the part number. That saves you the frustration of ordering a part that doesn’t match your machine’s build. I’ve seen too many techs order a wrong seal because the aftermarket catalog didn’t list the updated part number.

Get the Right Part Number the First Time

Use this catalog to verify part numbers before you place an order. Cross-check with your machine’s serial number prefix. The catalog includes serial number prefixes for the machine, engine, transmission, bulldozer, ripper, and torque converter. If you need a gasket for the valve mechanism, you look under BASIC ENGINE > COVER GP-VALVE MECHANISM, confirm the group with your serial number, and order the exact part. No returns, no downtime waiting for the correct part. That’s 1086 pages of factory data. If your D8R is a different model year, check the Caterpillar D8R 2000 Parts Catalog or Caterpillar D8R 2001 Parts Catalog – 1086 Pages of OEM Part Numbers for different attachment coverage. For repair procedures, the Caterpillar D8R 1998 Technical Manual – Factory Specs & Procedures is a separate manual. For a broader understanding of equipment manufacturing, see Automotive Industry Overview.

Does this parts catalog include torque specifications?

No, this is a parts catalog, not a service manual.

How do I find the correct part number for my D8R’s engine serial number?

The catalog uses serial number prefixes. On page 1 you’ll see the machine, engine, transmission, and attachment serial number ranges. Cross-reference your machine’s serial number with the prefix list to determine the correct group. Then go to the respective section (e.g., BASIC ENGINE) and find the group that matches. The index at the back also lists part numbers in numerical order and by name in multiple languages. Always verify the serial number prefix before ordering. If your engine is BET1-up, you use the groups listed under that prefix. The catalog also includes discontinued part numbers and replacements, so you can order the latest version. As noted in Automotive Industry Overview, Caterpillar documentation standards are industry-leading.

Is this a PDF or a physical book?

Digital PDF download. You can print pages as needed.

Does the catalog cover attachments like rippers and bulldozers?

Yes. The MACHINE ARRANGEMENT section includes bulldozer and ripper groups with serial number prefixes BHR, BHW, CXB, CXL for bulldozers and BHD for ripper. Also WOODCHIP AR and LANDFILL AR arrangements for specialized configurations.

This manual belongs on the screen of anyone who orders parts for a D8R. Don’t rely on generic catalogs or outdated microfiche. Download the Factory Manual from AutoRepairManuals and get the correct part numbers the first time.
