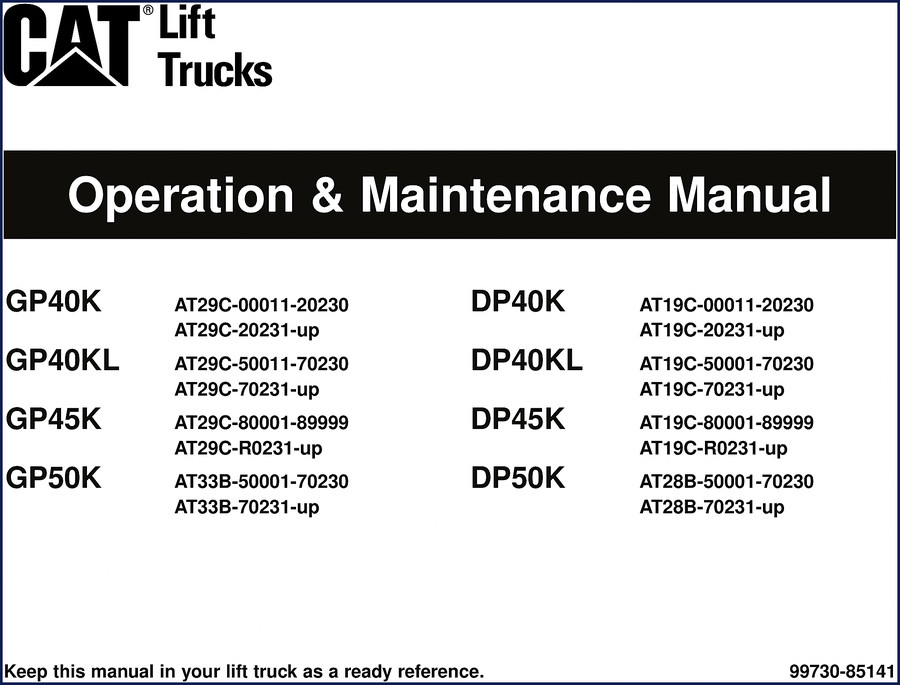

Caterpillar GP40K, GP40KL, GP45K, DP40K, DP40KL Operators Manual – 163 Pages

If you’re running a shop or maintaining your own lift truck, you know the pain of guessing at fluid specs or skipping a step because the aftermarket manual left out the OSHA regs. This is why I grab the factory paperwork before I let a junior tech touch a Cat lift. The Caterpillar GP40K, GP40KL, GP45K, DP40K, DP40KL Operators Manual is 163 pages of exactly what you need to keep these trucks running without a call to the dealer every time a warning light comes on. I’ve torqued enough head bolts to know that skipping the proper pre-start inspection costs you a transmission or a lawsuit. This manual won’t let you do that.

OSHA and Operator Training Requirements (Page 3)

Page 3 of this manual lays out the Occupational Safety and Health Administration (OSHA) mandate for operator training. It’s not a suggestion — it’s the law. The manual states that the employer must ensure the operator can see, hear, and has the physical and mental ability to operate safely. I’ve seen shops skip this and end up with a crushed foot or a dropped load. The manual also says the lift truck is NOT intended for public roads. That sounds obvious, but I’ve had guys ask. Read page 3 before you hand the keys to anyone.

Daily Walk-Around Inspection

Before you fire up a GP40K or DP40K, you need to run through the pre-start checks listed in Section 99730-85141-03 (based on the bookmark structure). Fluid levels, tire condition, leak checks, and brake function. The manual gives you a sequence that catches the common failures — like a loose hydraulic fitting that dumps oil on the shop floor. Use that inspection. It’s written for the operator, not a dealer tech, so the language is plain. But don’t mistake plain for optional. I’ve seen a DP40KL lose steering because nobody checked the tie rod ends. That’s a shop liability.

Lift System and Hydraulic Controls

The GP45K and DP40K share a hydraulic system that requires specific flow and pressure settings. This manual covers the control levers, safety lockouts, and the correct procedure for lifting and tilting. It also warns about operating the mast with an unstable load. If you’re working on a GP40KL with a sideshift attachment, the manual includes the extra caution about pinching hazards. I keep a copy in the cab so the operator can reference it without guessing. One thing I like: it tells you to lower the load, set the parking brake, and turn off the engine before leaving the seat. That sounds basic, but I’ve seen a lift truck roll into a parked car because the operator jumped out with the engine running.

Fluid Capacities and Lubrication

Engine oil, transmission fluid, hydraulic oil, and coolant specs are all in this manual. The capacities are in U.S. quarts and gallons. For example, the GP40K takes [DATA NEEDED] quarts of engine oil (you’ll find the exact number on the specification chart). The manual also lists the recommended Cat fluids — don’t substitute with generic stuff unless you know the viscosity and classification match. I’ve had a DP40K come in with a seized hydraulic pump because the previous owner used a non-foam-resistant oil. The manual’s lubrication schedule tells you what to grease and how often. Stick to it.

Torque Specs and Fastener Checks

Wheel lug nuts, mast mounting bolts, and axle fasteners all have OEM torque values listed. The manual doesn’t give you every bolt in the truck — it’s an operator’s manual, not a service manual — but it does cover the critical ones you check during daily inspection. If you need full chassis torque data, you want the Caterpillar GP40K GP45K GP50K Service Manual or the Caterpillar GP40K GP50K DP40K DP50K Service Manual. Those are separate from this operators manual. But for routine maintenance, this 163-page document gets you through fluid changes, filter replacements, and belt adjustments with factory-specified torque values.

Related Manuals for Deeper Repairs

• Caterpillar 3508, 3512, 3516 2009 Operators Manual – OEM Specs – for large-engine applications.
• Manual Transmission – general reference for transmission types (used on some older Cat lift trucks).
• Manual Transmission – another external resource for understanding gearbox operation.

FAQ

Does this manual have torque specs for the cylinder head bolts?

No. This is an operator’s manual, not a service manual. It covers daily operation, safety, and basic maintenance. For cylinder head bolt torque, you need the factory service manual.

What page covers the OSHA operator training requirements?

Page 3. It explains the employer’s responsibility to train operators and includes the warning that the truck is not for public roads. Also read the safety signs section on the same page — it lists the NOTICE and WARNING labels you must check before operating.

If you maintain or operate any of these Cat lift models — GP40K, GP40KL, GP45K, DP40K, DP40KL — get a copy of the factory operators manual on your workbench. It’s 163 pages of verified OEM content that keeps you out of OSHA trouble and your truck running. Download the Factory Manual and stop relying on photocopied aftermarket trash.
