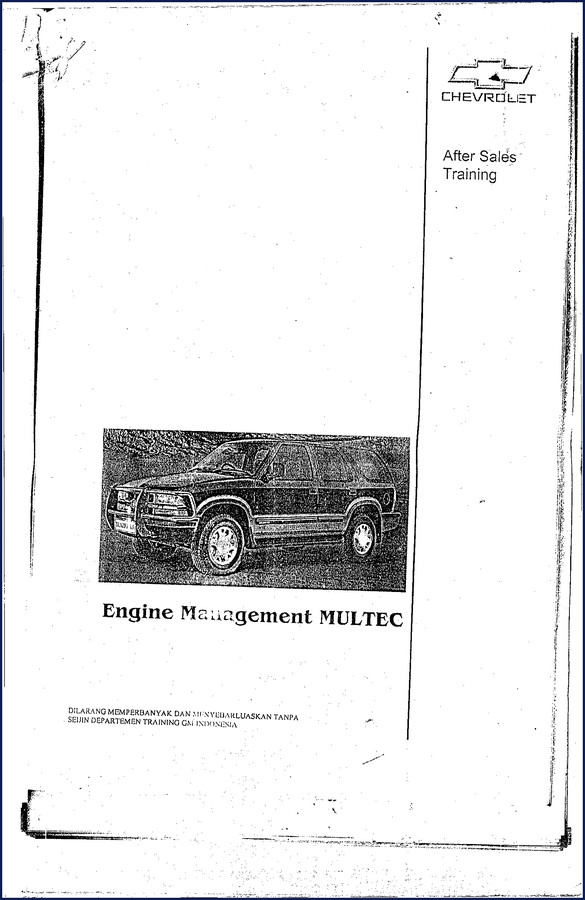

Chevrolet Blazer Training Manual – Engine Management MULTEC

If you’ve ever wasted an afternoon chasing a no-start on a Chevrolet Blazer because the aftermarket wiring diagram had the wrong pinouts, you know what I’m talking about. This 64-page Training Manual from Chevrolet’s own After Sales Training department is the real deal – factory-level documentation for the Engine Management MULTEC system used on the 2.2L SOHC and DOHC engines. No translations of translations, no third-party editing. This is what GM Indonesia used to train their techs. And it shows. The manual’s density of information per square inch beats anything you’ll find on a forum or a cheap PDF mill.

Fuel System Flow (Aliran Sistem Bahan Bakar)

Page 2 of the manual lays out the complete fuel system flow for the Opel Blazer (which is the same as the Chevrolet Blazer in North American markets – the 2.2L SEC SOHC and SOHC variants). The chapter covers the tank and fuel pump construction, the fuel filter, the filter separator, injectors, and the pressure regulator. If you’ve been guessing which line is return vs. supply, this section ends the guesswork. It includes a schematic on page 8 that shows the entire flow from tank to injectors. I’ve seen techs try to reverse-engineer these systems with a test light and a prayer. That’s how you get fuel leaks and fried ECMs. Use the schematic, follow the path, and you’ll nail it the first time.

ECM Block Diagram and Pin Code Listing

Page 23 gives you the block diagram of the Electronic Control Module (ECM) – the brain of the MULTEC system. Page 28 lists every pin code with its function. This is not a generic wiring diagram that “usually works.” This is the OEM table that GM’s engineers used to design the harness. If you’re diagnosing a crank-no-start or a misfire, you need to know which pin goes to the injector and which goes to the fuel pump relay. The manual also includes the complete circuit on page 27, the fuel pump circuit on page 34, and the injector circuit on page 37. That’s three separate circuits drawn out – no ambiguity.

Sensor Information: What the ECM Sees

Starting on page 39, the manual walks through each sensor: throttle position sensor, intake air temperature sensor, MAP sensor, coolant temperature sensor, crankshaft position sensor, vehicle speed sensor (two pages on that), and knock sensor. Each sensor gets its own construction, operating principle, and how the ECM uses the signal. For example, the MAP sensor section on page 42 explains how the ECM calculates engine load and adjusts fuel trim. If you’ve been chasing a lean code that comes and goes, this is where you’ll find the logic the ECM uses. The knock sensor module on page 53 shows the circuit that retards timing when it detects detonation. This type of detail is what separates a training manual from a parts catalog.

3 Reasons to Trust This OEM Training Manual

First, it came from Chevrolet’s After Sales Training department – not a third-party publisher that copies Wikipedia. Second, the content is specific to the MULTEC system used in the Blazer, not a generic engine management overview. Third, the manual includes the Diagnostic Trouble Code (DTC) list starting on page 65, which matches the actual ECM firmware. When you compare this to an aftermarket manual that says “code 33 means MAP sensor,” you’ll find the OEM manual tells you the circuit conditions and possible causes. That’s the difference between guessing and diagnosing.

For more training materials from the same OEM source, check out the Chevrolet Captiva Model Introduction Training Manual”>Chevrolet Captiva Model Introduction Training Manual, the Chevrolet Spark Model Introduction Training Manual”>Chevrolet Spark Model Introduction Training Manual, or the Chevrolet Cruze Model Introduction Training Manual”>Chevrolet Cruze Model Introduction Training Manual. These all follow the same level of factory detail.

Who Needs This Manual?

If you’re a home garage enthusiast working on a 1998–2005 Chevrolet Blazer (2.2L engine), this is for you. If you’re a shop owner who keeps burning billable hours because your techs can’t find the right ECM pin, buy this manual. It’s also useful for anyone studying engine management systems – the way GM explains the MULTEC system is clearer than most textbooks. The manual is in Indonesian, but the schematics and pin tables are universal. For broader industry context, read the Automotive Industry Overview”>Automotive Industry Overview and Manual Transmission”>Manual Transmission articles.

That 64-page count tells you something. It’s not a 1,200-page tome you’ll never open. It’s a focused, dense training manual that you can work through in an afternoon. Every page has actionable data. No fluff, no reprints.

Frequently Asked Questions

Is this manual in English?

No, it is in Indonesian. But the diagrams, pin tables, and trouble codes are language-independent.

Does it cover the 4.3L V6 engine?

Absolutely not. This manual is strictly for the 2.2L SOHC and DOHC engines with the MULTEC engine management system. The V6 Blazer uses a different ECM and fuel injection setup.

Can I use this for a 1999 Blazer?

If your 1999 Blazer has the 2.2L engine, yes. The MULTEC system was used on those models. Check your VIN engine code to confirm.

What about torque specs?

Torque values are not the focus of this training manual. It is a system overview and diagnostic guide, not a service manual. You will not find head bolt or main bearing torque specifications here. For that, you need the factory service manual. However, the manual does reference the correct fastener tightening sequence on the intake manifold (page 19) and the fuel rail installation. If you need full torque data, pair this with the Chevrolet Blazer factory service manual.

Stop burning time on generic wiring diagrams. Download the Factory Manual from AutoRepairManuals and get the OEM data that GM trained its technicians on. Your Blazer will thank you.
