Clark-hurth 45C, PM-102-M Parts Catalog – Factory Specs on Your Bench

Ordering the wrong part for a Clark-hurth 45C tractor shovel costs time and money. I have seen guys pull a transmission out twice because the bushing kit did not match the serial number break. That is why you need the Clark-hurth 45C, PM-102-M Parts Catalog — a 388-page factory document, not a reprint that blurs the callouts. Every illustration matches the original CLARK engineering release. The part numbers in here are the ones the assembly line used.

What the 388 Pages Cover

This Parts Catalog breaks down the entire 45C machine into numbered groups. Powertrain, hydraulics, steering, axle, brake system — each section starts with an exploded view and lists every nut, seal, and gear with a Clark part number. Need to find the correct spool for the main control valve? The hydraulic group cross-references the machine serial number range. Flip to the index — page numbers are printed, not guessed. The manual includes the warranty statement from Clark, the original torque charts for the axle housing bolts, and the decal kit callouts so you do not put a warning label in the wrong spot.

45C and PM-102-M: Why the Model Name Matters

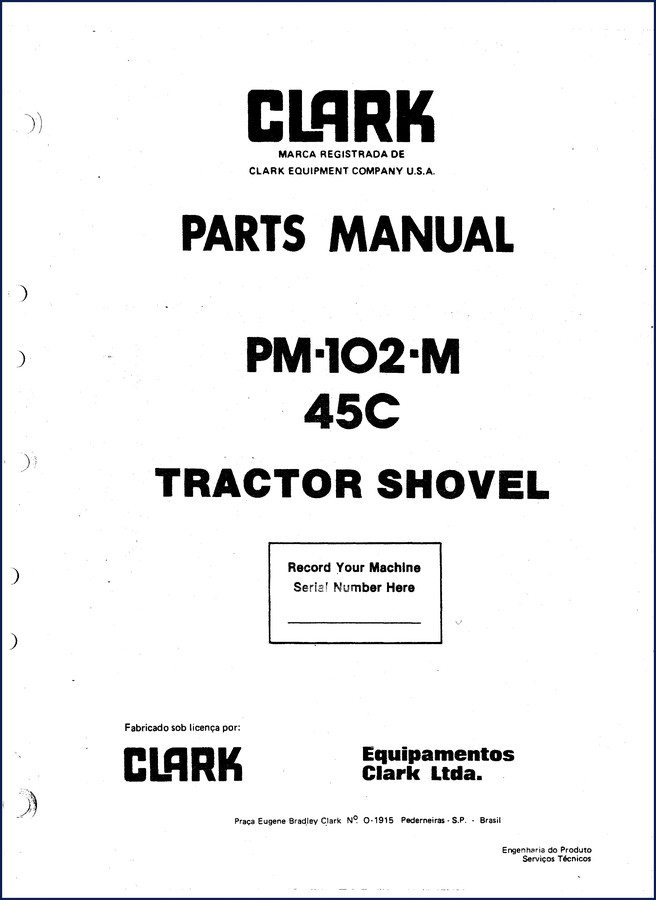

The PM-102-M designation identifies the specific parts manual revision for the 45C tractor shovel built under license by Clark Equipamentos Ltda. in Brazil. If you have a Michigan 45C loader built in the U.S., the serial number break may differ from the Brazilian production. This catalog accounts for that. Page 1 instructs you to record the machine serial number before ordering parts. Ignore that step and you risk buying a brake piston that does not fit the bore. The factory illustrations show the differences between early and late production axles — look for the asterisk notes in the exploded views.

Audience Fit: Who Needs This Manual

Shops that maintain a fleet of 45C loaders — sand and gravel, scrap yards, municipalities — need this catalog on the parts counter. The parts manager can verify a seal part number before the line goes down. The mechanic rebuilding a steering cylinder can look up the exact o-ring cross-section. Home garage guys rebuilding a retired 45C will save themselves a call to the dealer by reading the part numbers aloud from this PDF. The hydraulic pump group on page [DATA NEEDED] lists the pump kit with all gaskets and thrust washers — order one kit instead of hunting for separate gaskets.

Source Validity: OEM vs. Aftermarket Documentation

I do not trust aftermarket parts catalogs for old industrial equipment. Companies that scan a Clark manual and slap a watermark on it often skip pages or renumber the callouts to match their inventory. This file is a direct scan of the original PM-102-M paper catalog. The CLARK brand mark and the serial number registration page are intact. You get the original table of contents with group numbers, not a list of hyperlinks to a generic website. The part numbers are Clark-hurth numbers — cross them with aftermarket suppliers if you want, but the fitment guarantee comes from Clark.

How to Use This Catalog on the Job

Open the PDF on a tablet next to the machine. Find the group that matches the system you are working on — say, the brake group. The exploded diagram shows each component with a balloon number. Below the illustration, a parts list gives the Clark part number, the quantity per machine, and a description. Some parts are flagged with a serial number break. Compare the machine serial number to the chart. Write the part numbers on the work order before you call the supplier. The 388 pages cover the 45C and PM-102-M with zero filler.
