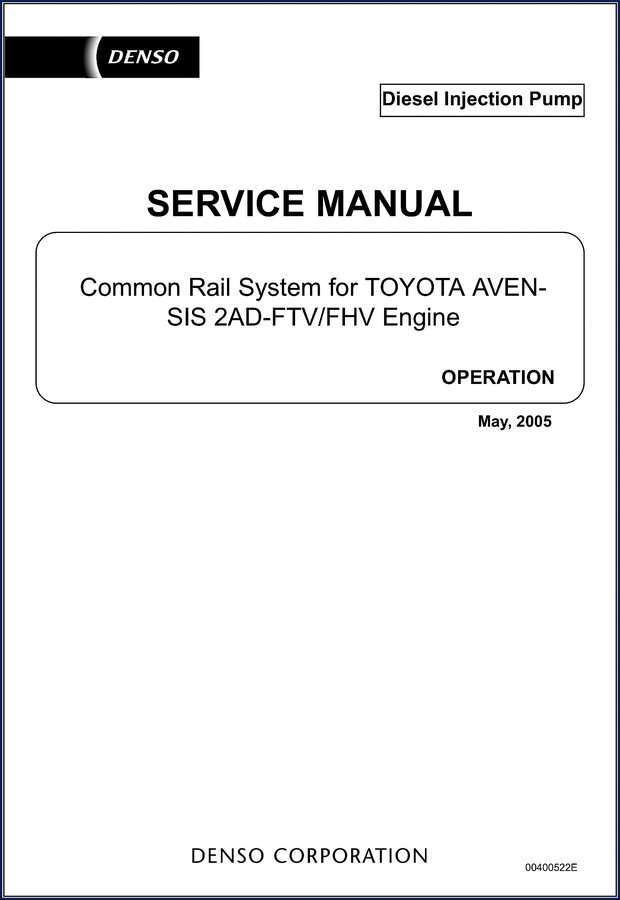

Denso Avensis 2005 Service Manual – What You Actually Get

I’ve watched guys throw aftermarket injectors at a 2AD-FHV rail because they didn’t understand the piezo stack response curve. That’s a grand in parts flushed because someone downloaded a generic “common rail” PDF that skipped section 5.2. This Denso Avensis 2005 Service Manual is the actual factory document Denso wrote for the Common Rail System on the Toyota Avensis – 32 pages of nothing but verified operation specs. No fluff, no reprints of some third-party rewrite.

If you’re a shop owner or a home mechanic who’s tired of chasing air leaks on the supply pump because you guessed the SCV resistance value, this is where you stop guessing. The manual is split into nine numbered sections, each one covering a specific subsystem. Page 1-4 walks you through the supply pump and SCV (Suction Control Valve) operation. Page 1-7 details the piezo injector operation for the 2AD-FHV engine – and yes, that’s the engine where the injector firing sequence can ruin a rail if you get the timing wrong.

Supply Pump and SCV: Critical Adjustments

Section 3 of this manual gives you the outline and SCV behavior. The SCV controls the fuel flow into the high-pressure pump. If you’ve ever had a rail that builds pressure slowly or throws a P0087, chances are the SCV driver circuit or the internal valve is the culprit. This manual doesn’t treat it as a black box – it explains the composition and the signals. You’ll see the ECU connector layout for the pump control terminals in section 6.1, which saves you from probing random pins with a multimeter. Aftermarket wiring diagrams often swap pin labels. This one doesn’t.

Diagnostic Trouble Codes (DTC) – Factory Table

Section 8.2 contains the actual DTC table used by Denso for this system. Not the generic OBD-II codes you find on forums – the manufacturer-specific codes that tell you exactly which injector driver or pressure sensor is faulted. The table includes the code number, the detection condition, and the suspect area. For a shop that charges diagnostic time, having this table prevents you from spending an hour chasing a code that’s actually a rail pressure limiter issue (section 4.2).

Does This Manual Cover the Piezo Injector?

Yes. Section 5.2 is dedicated to the operation of the piezo injector used on the 2AD-FHV engine. Piezo injectors need a specific voltage ramp to crack open. The manual explains the control timing (section 7.3) that the ECU uses to fire them. If you’re swapping injectors between cylinders or replacing the EDU (Electronic Driving Unit), you need to understand the injection pattern – section 7.2 shows the pilot, main, and post-injection events. This is not information you’ll find in a Haynes manual.

7 Systems Covered in 32 Pages

The manual is tight – 32 pages that pack the system components (pump, rail, injector), control system (ECU, EDU), wiring diagram, DTCs, and fuel injection timing control. For the price of a few hours of shop labor, you get the exact document Denso issued in May 2005. If you work on any Toyota Avensis with the 2AD-FTV or 2AD-FHV, this manual belongs in your toolbox. Pair it with the Denso Avensis 2AD-FTV 2AD-FHV 2005 Service Manual”>original print for the diesel injection module. For broader coverage of earlier TGN models, check the Denso TGN15, TGN16, TGN26, KUN15, KUN16 2004 Service Manual – OEM A/C Specs”>2004 A/C specs if you’re also handling climate systems. And if you’re into heavy-duty diesel, the Denso FIGHTER 6M60 2004 Service Manual – Factory Diesel Injection Guide”>FIGHTER guide covers a different platform but the same Denso logic.

ECU Connector Terminal Layout – Don’t Probe Blindly

Section 6.1 gives you the ECU connector terminal layout with pin numbers and signal descriptions. If you’ve ever back-probed the wrong pin and fried an ECU, you know why this page is gold. The manual also covers the EDU (Electronic Driving Unit) in section 6.2 – the unit that actually drives the injector solenoids. Without the terminal layout, you’re working blind. This factory diagram is scannable, printable, and has no greyscale reprint artifacts.

External Wiring Diagram for the 2AD-FTV/FHV

Section 9 contains the ECU external wiring diagram. This is the full schematic showing the connections between the ECU, rail pressure sensor, supply pump SCV, injectors, and the EDU. If you’re chasing a no-start or a low-power condition, you trace the power and ground paths using this diagram. I’ve seen too many techs replace a perfectly good HP pump because they ignored a corroded ground pin at the ECU connector. The wiring diagram shows you which wire goes where – no seat-of-the-pants reasoning.
