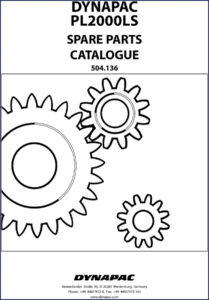

Dynapac PL2000LS Parts Catalog

I’ve seen too many mechanics waste a morning trying to match a worn-out bearing with a blurry photocopy from a third-party catalog. That’s why I tell every guy in my shop to use the real thing – the factory parts catalog. Here’s the Dynapac PL2000LS Parts Catalog, 258 pages of OEM part numbers and exploded views straight from the manufacturer. No guesswork. No aftermarket reprints.

You get the exact same documentation the dealer uses. Every bolt, seal, and bracket is listed with its Dynapac order number. If you’re rebuilding a milling drum or tracking down a fuel tank leak, this catalog kills the downtime. Let me walk through what’s inside.

Dynapac PL2000LS Parts Catalog – 258 Pages of Factory Breakdowns

Flip to page 1 and you’ll see the table of contents in two languages (English and German). The catalog splits into major assemblies: main frame, planer unit, material feeder, conveying system, steering, track group, drive, and engine. Each section starts with a numbered list of sub-assemblies. For example, the main frame section includes mounting parts, belt covering, accessories box, engine hood, fuel tank, seats, operator stand, and the option weight. That’s how you find the exact part without flipping through fifty pages.

Main Frame and Engine: Where to Find the Fuel Tank and Seat Mounts

The main frame section (pages 1–2 in the TOC) covers everything from the lift and tip up mechanism to the operator stand. You need a replacement fuel tank? It’s listed under “Fuel tank, seats” with part number 504-01135. The engine hood and tank covering are under 504-01130A. I’ve used these diagrams to confirm bolt lengths on the operator platform. Saves ordering the wrong fastener by a mile. The engine section starts with the split gear box (part 951058552), then exhaust system, air filter unit, guard, and cooling system. All OEM numbers.

Planer Unit: Cutting Drum and Belt Tensioner Specs

This is where the cold planer earns its keep. The planer unit splits into milling section, milling housing, back flap, cutting drum, belt tensioner, cutting drum bearing, and round shank bit. The cutting drum bearing (504-02670) and belt tensioner (504-02650) are common wear items. With this catalog you get the exact bearing part number, not a “cross-reference” from a generic supplier. That matters when you’re pressing bearings in after hours and the dimensions need to be dead-on.

Does This Catalog Cover the Engine and Exhaust System?

Yes. The engine section runs from page 2 onward and includes the split gear box, exhaust system (504-06130), air filter unit (504-06140A), guard (504-06150), and cooling system (504-06160). You’ll also find the engine serial number field on the title page. If you’re replacing an exhaust manifold or ordering a new air filter housing, you need those numbers. We also carry related manuals like Dynapac PL2000LS Parts Catalog and the DYNAPAC PL2000LS Spare Parts Catalogue 504.151 for different serial ranges. The DYNAPAC PL2000LS Spare Parts Catalogue 504.145 covers additional variations.

Conveying System and Track Group – Part Numbers You Need

The material feeder and conveying system include the rigid conveyor, covering, lift unit, funnel, collating conveyor, sliding shoe, and fastening lever. Each sub-assembly has its own part number. For example, the rigid conveyor is 504-03160. The track group (504-05110) and steering assembly (504-04110A) are separate sections. Combine this catalog with a service manual and you can plan a full undercarriage rebuild. The Automotive Industry Overview might be interesting background, but this catalog is pure construction equipment documentation. For general context on machine standards, see Automotive Industry Overview.

Why This OEM Parts Catalog Matters on the Job

I’ve been burned by aftermarket catalogs that swap in a different thread pitch or list a superseded part without warning. This is the original Dynapac print. No third-party edits, no reprints. Every page matches the parts bin at the factory. You can use it to verify old part numbers before you order or to decode a serial number. It’s not a repair manual – you won’t find torque specs or service procedures – but for ordering parts it’s the difference between getting the job done Friday afternoon and waiting on a wrong delivery Monday morning.

Does this catalog include torque specifications?

No. This is a parts catalog, not a service manual.

What sections are covered besides the milling section?

The catalog covers main frame, planer unit, material feeder, conveying system, steering, track group, drive, and engine components including split gear box, exhaust, air filter, guard, and cooling system. Each section provides exploded diagrams with part numbers and references to Dynapac order numbers. You’ll find the fuel tank, seats, operator stand, belt covering, and even option weight for the PL2000LS. Total 258 pages.

If you’re working on a Dynapac PL2000LS cold planer, get the factory parts catalog in your hands. Stop chasing down wrong parts. Download the Factory Manual now.
