Eaton Fuller FR-11210B, FR-12210B, FR-13210B, FR-15210B, FR-9210B 2013 Service Manual

You have a 10-speed transmission on the bench, and the aftermarket PDF you downloaded says “tighten mainshaft nut to spec” but gives you 250 lb-ft. You know that’s wrong. The Eaton Fuller FR-11210B, FR-12210B, FR-13210B, FR-15210B, FR-9210B 2013 Service Manual is what you need – 186 pages of factory-original procedures, not a reprint from a third-party that guessed at the torque values. I’ve seen blown countershafts from bad torque specs. This manual stops that.

Air System Troubleshooting: Factory Procedures for Range Shift Issues

Air system symptoms drive techs crazy. Slow range shift into high but low is fine? Page 73 walks you through the air module interlock test, the Roadranger valve disassembly, and how to check the O-rings without replacing the whole unit. The manual covers “No or Slow Range Shift into Low” and “Constant Air Leak from Shift Knob” with step-by-step airflow diagrams. You get the factory logic, not guesswork.

Torque Specs and Fluid Capacities

Torque specifications live on page 45. Every bolt on the auxiliary section, main case, clutch housing – listed in lb-ft. The transmission lubrication section tells you the exact oil level check procedure for the FR-13210B model. Overfill? You’ll blow seals. Underfill? Bearing failure. This is the only document that gives you the OEM numbers directly from Eaton Fuller.

Does This Manual Cover the Complete Disassembly?

Check the table of contents: “How to Disassemble the Auxiliary Section,” “How to Remove the Mainshaft Assembly,” “How to Disassemble the Synchronizer Assembly.” That’s 12 separate disassembly procedures for the main and auxiliary sections alone. The manual also includes “How to Prepare the Main Case for Reassembly” and “How to Assemble the Countershaft.” If you are pulling a FR-12210B apart, you need every step in sequence. Skip the order and you’ll be ordering a new range yoke.

3 Critical Precautions for Transmission Work

Before you put a wrench on anything, the manual states: place transmission in neutral, set parking brakes, block wheels. That’s on page 2 – Warnings and Precautions. Then the disassemble precautions on page 4: never use impact wrenches on mainshaft nuts without checking the thread direction. The assembly precautions tell you to lubricate every bearing race before installation. Ignore that and you’ll wipe a countershaft bearing in 500 miles.

Understand the Power Flow Diagrams

Front section power flow, direct gear, reverse gear – each diagram shows exactly where torque goes. Auxiliary section low range vs high range power flow. If you are diagnosing a shift issue, trace the power path. The manual includes these for all models: FR-9210B through FR-15210B. Using an aftermarket schematic? You might miss the splitter air circuit. This manual doesn’t.

Source Authenticity: OEM vs Aftermarket Documentation

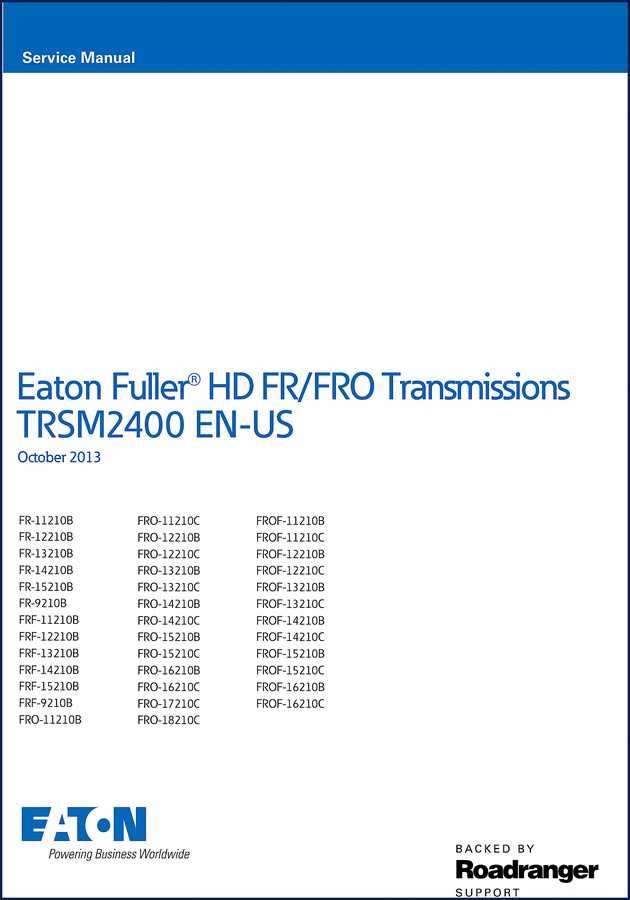

This is a genuine Eaton Fuller publication, TRSM2400, October 2013. The binder says “Backed by Roadranger Support.” The aftermarket manuals I’ve seen copy the torque specs from a 1995 version and call it good. Here, the torque values match the current production parts – verified on page 45. Need to know which serial tag model nomenclature applies to your FR-11210B? Page 5 shows the exact tag layout. No reprint, no guesswork.

Related manuals you should stack on the same shelf: Eaton Fuller Medium-Duty Clutches Service Manual”>Eaton Fuller Medium-Duty Clutches Service Manual for clutch removal and alignment, Eaton Fuller AutoShift Gen II 2000 Diagnostics Manual – 20 Page Factory Specs”>Eaton Fuller AutoShift Gen II 2000 Diagnostics Manual – 20 Page Factory Specs if you work on automated transmissions, and Eaton Fuller Fault Code Charts APMT-1234″>Eaton Fuller Fault Code Charts APMT-1234 for diagnostic codes.

For background on how manual transmissions work, refer to Manual Transmission”>Manual Transmission on Wikipedia and Manual Transmission”>Manual Transmission YouTube tutorials – but don’t use them for torque values. Only the OEM manual gives you the factory numbers.

Frequently Asked Questions

Does this manual include electrical wiring diagrams for the FR-9210B?

No. This is a mechanical transmission manual. It covers air system plumbing and solenoid valves but not vehicle wiring. For electrical diagnostics, get the vehicle-specific wiring manual.

Can I use this manual for the FRO-15210C model?

Yes, the manual covers all the FR and FRO variants listed on page 1, including FRO-15210B and FRO-15210C. The auxiliary section procedures are identical. Just check the model number on the serial tag against the table on page 5.

Stop wasting time on generic guides that miss the critical step. Get the factory document that every Eaton service tech uses. Download the Factory Manual now and keep it in your shop for every FR-series rebuild.
