Fiat-hitachi 4HK1, 6HK1 2008 Workshop Manual

If you’re chasing a head gasket leak on a 4HK1 or pulling the injectors on a 6HK1, the last thing you need is aftermarket torque values that leave you chasing oil streaks. I’ve seen guys split a cylinder block because they trusted a third-party spec sheet. That’s why you want the factory issue. This Fiat-hitachi 4HK1, 6HK1 2008 Workshop Manual came off Hitachi’s own press, printed in Japan in 2008. It’s the same binder the techs at the dealership crack open when they’re rebuilding a common rail diesel.

Engine Mechanical (4HK1, 6HK1): What You Get

The Engine Mechanical section is the spine of this book. It runs through the entire disassembly and reassembly of a 4HK1 and 6HK1 diesel engine, starting with the cylinder head cover and ending at the crankshaft. Each subsection—Cylinder Head, Piston and Connecting Rod, Timing Gear Train, Camshaft ASM—includes component diagrams, removal steps, and inspection criteria. The torque specifications are listed per joint, not lumped into a generic table. For example, the cylinder head bolts have a specific sequence and angle, and that sequence is spelled out under the Cylinder Head subsection. You don’t guess; you follow the factory path.

Torque Specifications – Not a Number to Guess

Every joint in this manual has a torque value. The Turbocharger and Exhaust Manifold section lists each stud and nut. The Flywheel torque specs are there. The Water Pump (4HK1) and Water Pump (6HK1) subsections have separate torque tables because the bolt patterns differ. If you’re working on a common rail fuel system, the Fuel Injector and Fuel Supply Pump sections give you the exact ft-lbs and inch-lbs. No rounding up. No ‘tighten to spec’ without a number. You’ll also find special tool numbers for jobs like the valve stem seal installer or the crankshaft front oil seal driver. That keeps you from welding up a homemade tool that scratches the seal bore.

Does This Manual Cover Cooling and Fuel Systems?

Yes. The Cooling System section covers the thermostat, drive belt tension, and water pump replacement for both engine models. The Fuel System section digs into the common rail, fuel filter ASM, injectors, and supply pump. If you need to bleed a common rail or swap a gauze filter, the steps are here. One thing to note: this manual does not cover the full vehicle wiring diagrams. That lives in a separate Engine Electrical volume. But for engine mechanical, cooling, and fuel work, everything you need sits between those 352 pages.

3 Sections That Keep Your Engine Alive

First, the Lubrication System subsection includes a function check procedure and a special tool list for oil pressure testing. Second, the Timing Gear Train section gives you the backlash and runout specs—skip that and you’ll be retiming a skipped gear. Third, the Cylinder Block inspection criteria tell you how to measure bore wear and deck flatness. Those are the three places a DIYer or a shop owner can save a block from becoming a boat anchor.

Source Authenticity: OEM vs. Aftermarket

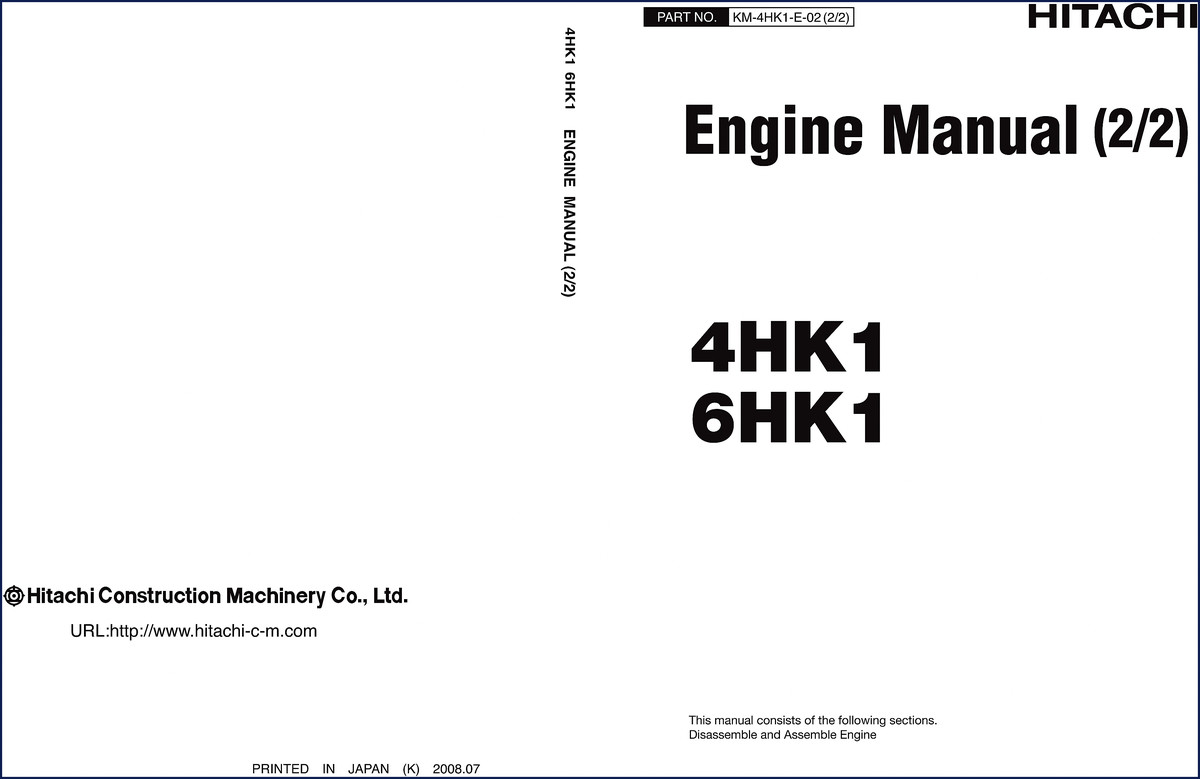

I won’t mince words: aftermarket manuals for industrial diesels are often copied from older editions or compiled from multiple sources with conflicting data. This manual is the original Hitachi Construction Machinery Co., Ltd. publication—part number KM-4HK1-E-02 (2/2). It’s 352 pages of factory-authorized service data, not a reprint. The 2008 edition includes updates to the common rail system that earlier manuals missed. If you’re serious about keeping a Fiat-hitachi excavator or generator running, you use the OEM binder.

If you need a companion manual for the engine mechanical section, check the Hitachi 4HK1 Engine Service Manual – Section: Engine Mechanical (4Hk1). For compact excavator work, the Fiat-hitachi ZX75US Workshop Manual – OEM Factory Service Specs and Fiat-hitachi Zx40U Workshop Manual – OEM Factory Service Specs fill in the surrounding chassis and hydraulic data. And if your job involves drivetrain work, the Manual Transmission service guide covers clutches and gearboxes. You’ll also find the Manual Transmission section useful for synchronizer rebuilds.

FAQ – Fiat-hitachi 4HK1, 6HK1 Workshop Manual

Can I use this manual for my Fiat-hitachi excavator?

Yes. The manual covers the 4HK1 and 6HK1 diesel engines used in Fiat-hitachi construction equipment. The service procedures apply to both engine models. Torque specs, component removal, and installation steps are included. If your machine uses one of these engines, you’re set.

Does it include wiring diagrams?

No, this manual focuses on engine mechanical, cooling, and fuel systems. Electrical wiring and control system troubleshooting are in the separate Engine Electrical section.

Is this a reprint or a copy?

This is an original OEM factory manual printed by Hitachi Construction Machinery Co., Ltd. in Japan in 2008. Not a reprint.

How many pages does it have?

The manual has 352 pages covering every major engine system: engine mechanical (including cylinder head, pistons, crankshaft, timing gears), cooling system (water pump, thermostat, drive belts), fuel system (common rail, injectors, supply pump), and more. Each section includes component diagrams, removal and installation steps, inspection criteria, and torque specifications. You also get special tool numbers for jobs like valve stem seal replacement and crankshaft front oil seal installation. It’s dense, factory-level data.

You’ve got the engine torn down, parts on the bench, and a torque wrench in hand. Don’t reach for a PDF from a forum. Download the Factory Manual and follow the sequence that keeps head gaskets sealing and crankshafts spinning true.
