FIAT Kobelco 50SR 2008 Parts Catalog

If you’ve ever ordered a part for a 50SR and ended up with a bracket that doesn’t fit or a hose that’s two inches too short, you know the cost of guessing. That wasted time – and the return shipping – eats into your day. I’ve been wrenching long enough to see guys trust a third-party parts list and then hold up a job because the fuel line they got was for a different cab variant. This FIAT Kobelco 50SR 2008 Parts Catalog takes that pain off the table. It’s the same book the dealer uses, 586 pages of exploded views and part numbers that match your machine’s serial number range.

Filter List and Sleeve: Start with the Basics

Flip to section 00-001 for the filter list. You’ll see every oil, fuel, and hydraulic filter with the Kobelco part number – not a cross-reference that might be wrong. Section 00-002 covers sleeves, 00-003 nuts, 00-004 paint colors. These are the little things that get skipped when you’re in a hurry, but they’re why this manual exists. A wrong nut grade on a hydraulic bracket can back out under vibration. The factory spec tells you exactly what grade and finish.

Engine Assembly and Fuel Lines: Section 01-005 and 01-013

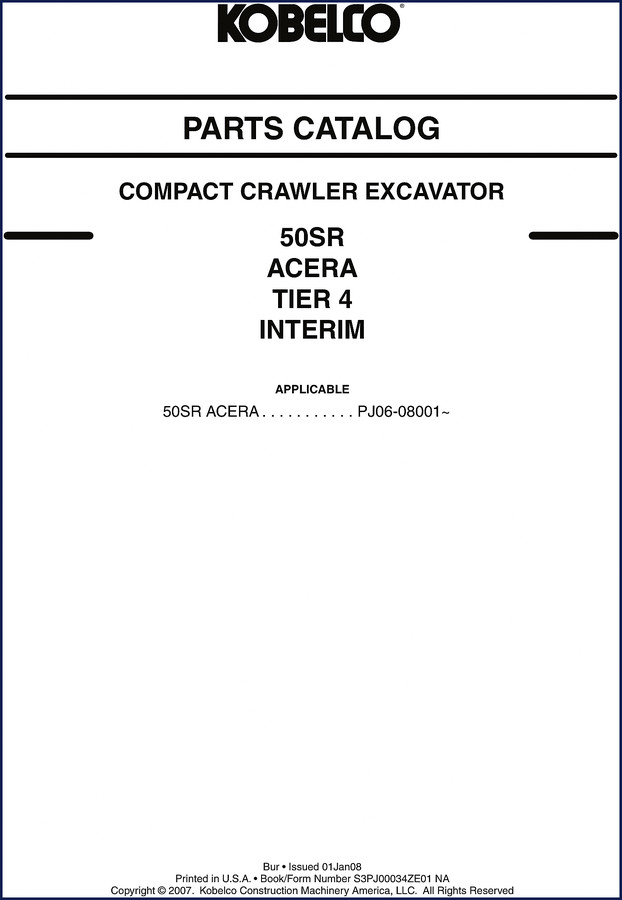

Section 01-005 shows the engine assy with all ancillary brackets and bolts. Section 01-013 is the fuel lines – and note that there are separate listings for canopy vs. cab machines. Page 1 of the manual clearly identifies the applicable model series as PJ06-08001~. That serial break matters. If you need the fuel tank assy for a cab version, you go to sections 01-016 and 01-017. Don’t buy a canopy tank and try to make it fit under a cab floor – I’ve seen that, it doesn’t work.

Do the Parts Fit Your Machine? Identifying the Right Assembly

Each upper structure section is split by attachment: standard, nibbler & breaker, cooler. For example, section 01-003 covers the swing bracket for nibbler & breaker applications. Section 01-005 is the base engine assy, but if your machine has a cooler package, you jump to section 05-002 for that engine install variant. The table of contents is your roadmap. Use it. Section 01-018 lists the hydraulic tank assy for nibbler & breaker – a different capacity than standard.

Hydraulic Lines: UPP, Return, and Nibbler Breaker Variants

Section 01-027 and 01-028 cover hydraulic lines, UPP, with two different routing configurations. Section 01-030 is hydraulic lines, return. If you’re working on a machine with auxiliary circuits like a breaker, section 01-029 gives you the exact tube bends and connector o-rings. Don’t reuse old o-rings from a parts bin – the manual lists the right size. The same logic applies to boom and arm hydraulics in sections 03-002 and 03-007. Each tube is drawn with its part number callout. Order the number, not the guess.

3 Reasons to Choose Factory Documentation Over Aftermarket

One: aftermarket parts catalogs often combine multiple model years into one generic list. This 2008 edition is specific to the 50SR Acera Tier 4 Interim, serial PJ06-08001~. Two: the exploded views show fastener torque symbols – not that this is a service manual, but the part numbers include bolts, washers, and locknuts that aftermarket lists omit. Three: the copyright notice on page 2 states Kobelco Construction Machinery America, LLC reserves the right to make changes, and this manual reflects the product as built. Aftermarket catalogs don’t have that revision control.

FAQ

Does this manual cover the entire machine, including the undercarriage?

Yes. Sections 02-001 through 02-011 cover the lower group, idlers, rollers, track shoes, dozer assembly, and hydraulic lines for the low structure. You’ll find part numbers for ring assy, slewing, and all track components.

Can I use this to order parts for a 50SR with a cab that has a cooler?

Check sections 05-001 through 05-018. They cover the cooler package specifically, including cab install, condenser, dryer, and harness. If your machine has the cooler option, those sections have the correct part numbers – don’t use the standard cab section.

Look at the scope of this thing: from filter list to name plate install (section 06-001), it’s every fast-moving part for a 2008 50SR. I’ve been in shops where a tech spent three hours cross-referencing a hydraulic hose because he didn’t have this catalog. You don’t have to work that way. FIAT Kobelco ED150, ED150-IE 2013 Parts Catalog OEM and FIAT Kobelco ED150, ED150-2 2009 Parts Catalog OEM Manual cover similar loaders in the family. For larger dozer service, see FIAT Kobelco LK650-II 1992 Parts Catalog – OEM Factory Specs. If you want to understand why factory specs matter, check the Automotive Industry Overview on standardization, or the Internal Combustion Engine fundamentals. The real takeaway: stop ordering from memory. Download the Factory Manual and get the right part the first time.
