FIAT Kobelco K909LC-II 1989 Parts Catalog

You are elbow-deep in a K909LC-II with a hydraulic leak, and you order a seal kit based on the part number someone scribbled on a sticky note. Three days and $200 later the seals don’t fit. The machine number is 2438, but the catalog cross‑references that to a different cab variant. This is the kind of frustration that costs you a Saturday and the profit on a full‑shift job. That’s why a factory FIAT Kobelco K909LC-II 1989 Parts Catalog belongs on your bench, not a blurry PDF grabbed from some third‑party forum.

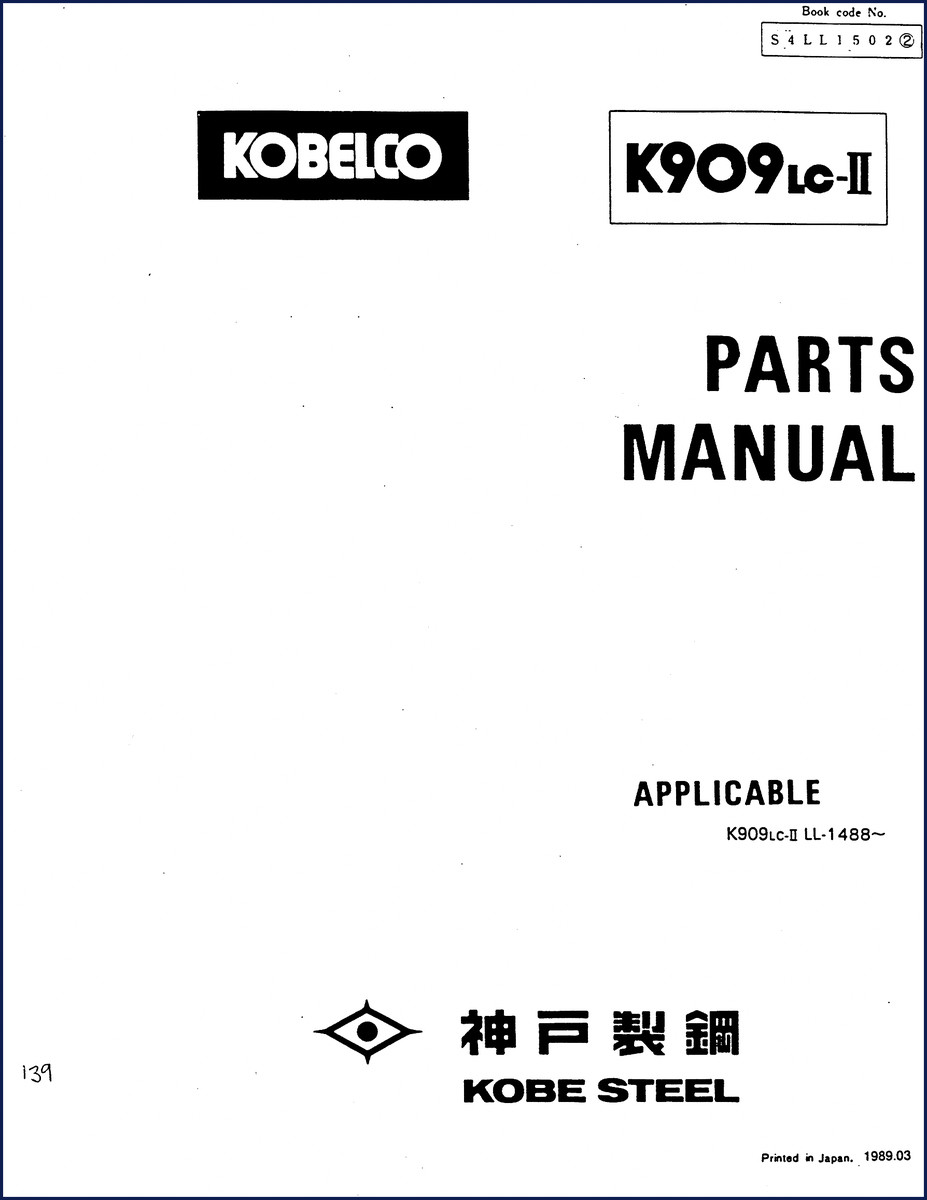

The document you are looking at is the exact document Kobelco printed in Japan in 1989. 330 pages, wire‑bound, printed on stock that has survived decades of coffee rings and grease stains. It covers machine serial number LL‑1488 onward. Every bolt, hose, and O‑ring is listed with its correct part number, quantity, and application range. I have seen too many guys order a swing damper for a machine that had a different hydraulic pump group because they used a generic aftermarket list. This book ends that game.

Parts Ordering Procedure: Why Page 4 Matters

Flip to page 4 (the ‘まえがき’ section) and you get the explicit ordering rules. You need the model, machine serial number, engine serial number, part number, part name, required quantity, and shipping address. That doesn’t sound like rocket science, but I have had techs tell me they “didn’t think the serial number mattered” – then they get a part for a machine that had a factory upgrade in late ’89. The manual lists machine and engine SN spaces on page 3. Fill them in before you lose the plate. This book is a tool, not a coffee table ornament.

Reading the Part Table: Item Codes and Compatibility

The parts breakdown uses a hierarchical symbol system straight out of the Japanese jump. Main assemblies have no item number. Their sub‑parts get numbers 1, 2, 3. If a sub‑part is itself an assembly, you see 1‑1, 1‑2. If it’s a service kit, the table lists “CONSISTS OF ITEM * TO *” at the bottom. The REMARKS column uses arrows (A←B) to show supersessions or interchangeable parts. That arrow means: if you order part A, you get part B instead – and it works. Do not ignore the arrows. I have seen guys return a $700 final drive bearing because they didn’t read the arrow and thought the box had the wrong part. Read the column.

3 Reasons to Use the OEM Catalog

• Number accuracy. Every part number comes from Kobelco’s engineering release. The aftermarket cross‑reference tables routinely drop the dash suffix that indicates a material change.
• Serial number tracking. The APPLICABLE column tells you which machine serial numbers use that part. A swing motor for serial number 2438 might not fit on number 2441 if there was a mid‑year design change.
• Kit breakdowns. The manual explicitly shows what is in a repair kit. You can order the separate gasket without buying the whole cylinder assembly if the catalog says it’s available individually.

The alternative is calling a dealer and reading a faded part tag over the phone, then waiting for a callback that may be wrong. I have done that. It’s slow, expensive, and leaves the machine down an extra day.

Does This Catalog Cover the Engine?

No. The engine is covered in a separate engine parts catalog (別冊エンジン部品型録). This book covers everything that bolts to the chassis: the final drives, hydraulic pumps, control valves, swing gear, cab components, and electrical harnesses. If you need pistons for the Isuzu 4‑cylinder, you need the engine catalog. If you need the hydraulic filter housing bracket, this is the book. Know the difference before you hit the order button.

Audience Fit: Who Should Own This Manual

If you are a shop owner with even one K909LC-II in your fleet, you need this. The backhoe is a 20‑ton machine that runs a lot of hours. Your parts room wants the exact exploded view so the counter guy can find the seal that goes under the boom foot pin. If you are a salvage yard picking these machines for parts, the serial number tracking saves you from selling a hydraulic pump that only fits the early production units. If you are a DIY owner‑operator, this manual pays for itself the first time you avoid buying a wrong bellcrank assembly. The book prints in English and Japanese – the illustration and part number language is universal.

Source Validity: Printed in Japan, 1989

This is not a reprint of a reprint. The PDF you get is scanned from the original factory publication, book code S4LL15022. Kobelco Construction Machinery America holds the copyright, and the manual includes the copyright page (page 2). Aftermarket data aggregators routinely re‑index part numbers, drop the hyphen, and create mismatches. Want an example? The REMARKS column in this catalog uses arrows and notes like “CONSISTS OF ITEM ** & *” – that formatting is critical to understanding what parts are interchangeable. Aftermarket versions flatten that into a text string and you miss the supersession logic. Stick with the factory scan.

Related manuals you might need: KOBELCO K909LC-II 1989 Parts Catalog”>KOBELCO K909LC-II 1989 Parts Catalog (the same one you are viewing), FIAT Kobelco ED150, ED150-IE 2013 Parts Catalog OEM”>FIAT Kobelco ED150, ED150-IE 2013 Parts Catalog OEM, and FIAT Kobelco ED150, ED150-2 2009 Parts Catalog OEM Manual”>FIAT Kobelco ED150, ED150-2 2009 Parts Catalog OEM Manual.

For broader context on construction equipment parts documentation, see the Automotive Industry Overview”>Automotive Industry Overview and Automotive Industry Overview”>Automotive Industry Overview.

Download the Factory Manual – get the 330‑page OEM parts catalog on your device or printed and bound. It is the only way to guarantee you are ordering parts against the correct serial number range.

FAQ

Does this parts catalog include exploded view illustrations?

Yes. Each assembly page has an exploded drawing with item numbers referenced to the table. The parts list shows part number, description, quantity, and the specific machine serial numbers that apply.

What if I need a part that is marked ‘No longer supplied’ in the REMARKS column?

That is not a common notation in this catalog. The REMARKS column mainly shows supersession arrows (A←B). If a part is obsolete, the column may show a blank or a note referencing a service kit. In any case, the manual gives you the correct OEM part number to ask the dealer about, and you can also check if a supersession part is listed. The scan is high resolution and the page 4 ordering procedure tells you exactly what information the dealer needs to find alternatives.
