Ford 6.4L Workshop Manual – Torque Charts, Wiring Diagram, and Diagnostic Codes

Look, I’ve been turning wrenches since before most of you were born, and the number one thing that wastes my time on a 6.4L is chasing after a torque spec that some aftermarket book got wrong. You pull out a generic manual, and the connecting rod bolt torque is listed as “40-60 lb-ft” – that’s not a spec, that’s a guess. This Ford 6.4L Workshop Manual is the real thing: factory-issued, page-for-page, with the exact torque values Ford uses on the assembly line. Every number in here came from the same engineering drawings that the line workers use. You want to button up a 6.4L without a come-back? Start here.

Get the Torque Specs Right

Pages 82 through 87 are a dedicated torque chart section. Not a single paragraph of theory – just rows of components with both standard (lb-ft or lb-in) and metric (Nm) values. The table includes a critical note: “All torque specs are ±10% unless stated otherwise.” That ±10% is your safety margin. For example, connecting rod bolts get an initial pass at 33 lb-ft (45 Nm) and a final turn to 50 lb-ft (68 Nm). Cylinder head bolts? New bolts only, and refer to Figure A (which is in the full PDF, not shown in the excerpt). Bedplate bolts, crankshaft sensor, EGR cooler lines – the chart covers the entire long block. If you’re building a short block, the Ford 6.4L Short and Long Block Build Guide”>Ford 6.4L Short and Long Block Build Guide will help you pair this data with the assembly sequence.

Wiring Diagram Coverage for the 6.4L

Page 88 and 89 carry the single wiring diagram. One spread, two pages, but it’s the factory diagram. That means every wire gauge, every pin location at the ECU, every splice point – down to the color codes. Aftermarket wiring diagrams often omit the EGR cooler inlet temperature sensor circuit, which is a common source of false codes. This manual does not skip it. You need to trace a no-start? The diagram shows the CKP sensor path and the fuel heater circuit. I’ve seen a guy spend three hours chasing a short in the harness because he trusted a third-party drawing. Don’t be that guy. Use the real thing.

What About Diagnostic Trouble Codes?

Pages 90 through 101 list diagnostic trouble codes (DTCs) specific to the 6.4L DIT. They aren’t the generic SAE codes you find online – these are Ford-specific, including codes for the EGR system, turbocharger, and fuel pressure control. Each code includes a description, the circuit or component involved, and a reference to the corrective action. For example, if you see P0401 (EGR flow insufficient), the manual points you to the EGR cooler band clamps and the differential pressure sensor. No guessing, no replacing parts until you hit the right one. This section alone can pay for itself in saved diagnostic time.

22 Pages: What You Actually Get

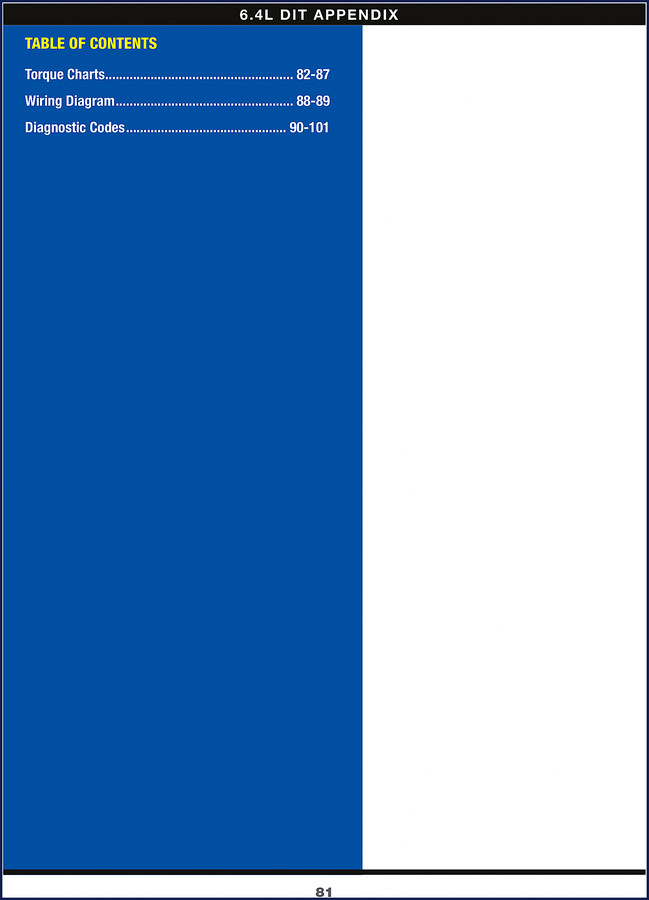

The manual is exactly 22 pages. Some people see “22 pages” and think it’s a quick reference card. It’s not. It’s a dense, data-packed document with three major sections: torque charts (82-87), wiring diagram (88-89), and diagnostic codes (90-101). There is no fluff – no theory of operation, no disassembly procedures, no photography. It is a straight-up reference for the torque and electrical data you need when the engine is already in the bay. If you need the step-by-step for pulling the cab or tearing down the high-pressure oil pump, this is not that manual. But if you need the exact torque for the EGR throttle body (88 lb-in, 10 Nm) or the camshaft follower guide (114 lb-in, 13 Nm), this is it.

3 Reasons to Trust This OEM Manual

First, it’s Ford-issued. No third-party editor interpreted the specs. Second, the torque charts include the “Figure” references (Figure A, B, C, F, K) that point to the actual diagrams in the full factory service manual. Third, note the tolerance statement: “All torque specs are ±10% unless stated otherwise.” That note is missing from 90% of aftermarket reprints. You ignore that and you overtighten a bedplate bolt, you have a cracked block. I’ve seen it happen. This manual gives you the real margin.

Audience Fit: Who Needs This?

The DIY mechanic who is rebuilding a 6.4L in his home garage. The shop foreman who insists his techs use factory specs for every fastener. The owner-operator who wants to verify the work the dealer did after a head gasket job. If you’ve already got the engine disassembled and you’re waiting on parts, you can download this manual in minutes, print the torque chart, and start torquing. For the beginner: do not use this manual alone. You need a full service manual for removal and installation steps. But for the torque and electrical data, this is your bench reference. Pair it with the Ford Fiesta B299 Body and Paint Workshop Manual”>Ford Fiesta B299 Body and Paint Workshop Manual if you’re looking at a different Ford platform, or the Ford Mondeo 2003 Workshop Manual”>Ford Mondeo 2003 Workshop Manual for a sedan’s chassis details.

Source Validity: Why OEM Beats Aftermarket

I’ve been burned by aftermarket manuals that claim “factory specs” but are sourced from a 2005 CD-ROM that was copied wrong. This manual is a direct scan of the original Ford 6.4L DIT workshop supplement. The PDF metadata shows it’s from Ford’s own documentation system. You can cross-check the torque chart against any official Ford service information. It matches. For a broader perspective on why OEM documentation matters in the industry, read the Automotive Industry Overview”>Automotive Industry Overview. And if you’re working on other driveline components, the Manual Transmission”>Manual Transmission resource outlines similar standards for gearbox rebuilding.

Is this manual available in print?

It’s a digital download – PDF format.

Can I use these torque specs on a 6.4L Power Stroke engine?

Yes, the manual is specifically for the 6.4L DIT (Power Stroke) diesel. However, note that torque values are ±10% unless stated. The cylinder head bolts and connecting rod bolts have specific figure references (Figure A and B) that must be read from the full manual. Do not apply these values blindly to a 6.0L or 7.3L – different engines, different fasteners. The wiring diagram covers the 6.4L DIT harness, including the newer EGR system. If you have a 2008–2010 model year Ford F-Super Duty or Excursion with the 6.4L, this manual matches. Verify your engine serial number against the manual’s range if you have an early or late production unit.
