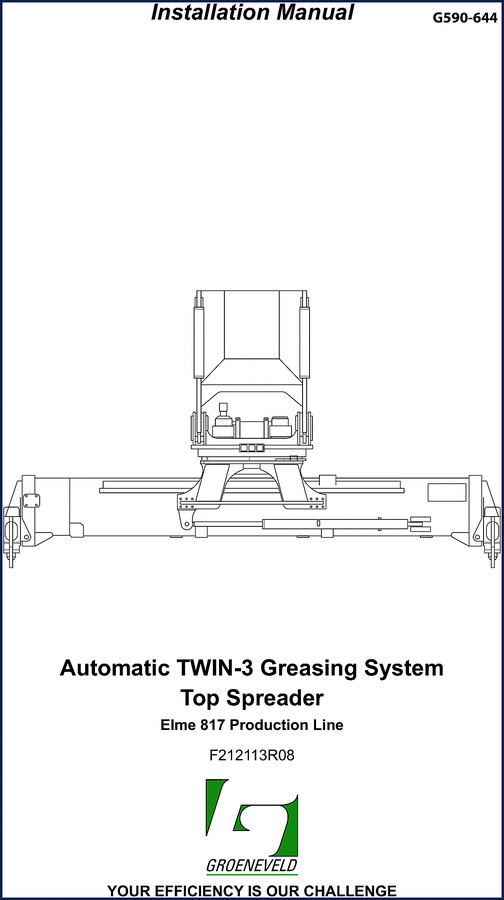

Groeneveld TWIN-3 Installation Manual – 92 Pages OEM

If you’re installing a TWIN-3 automatic greasing system on an Elme 817 spreader or similar equipment, you already know that guessing where the lines go or what torque to use on those distribution block fittings will cost you time and parts. I’ve seen guys skip the safety page and end up with a grease gun stuck under pressure. This Groeneveld TWIN-3 Installation Manual is 92 pages of factory documentation, not some aftermarket reprint full of blurry diagrams. It comes straight from Groeneveld, with the same specs they hand to their own installers.

System Layout: 8 Distribution Block Configurations

The manual opens with a complete system overview. Section 2 lays out every distribution block variant: the F209777 Twin 4-port block B1 (Hyster p/n 6997322), the F209778 Twin 2+2-port block B2/B4 (6997323), the F212273 Twin 2+2-port block B2/B4 (WTP), the F209779 Twin 7-port block B3 (6997324), the F209780 Twin 12-port block B5 (6997325), the F210665 Twin 22-port block B5, the F209781 Twin 12-port block B6 (6997326), and the F211957 Twin 12-port block B2/B4 (6992338). Each block has its own exploded view and part number references. Page 14 shows the B1 block installation with torque values for the fittings. Do not guess those.

Why Does This Manual Include Safety Precautions?

Groeneveld puts safety precautions on page 7 for a reason. That section covers pressurized grease hazards, pinch points during pump mounting, and proper lockout procedures before electrical work. Skip it and you risk a 3,000 psi grease line whipping loose. This isn’t theory; I’ve seen the aftermath.

Check the Grease Point Locations Before Mounting

Section 3 maps every grease point on the Elme 817 spreader. You get a diagram showing exactly where each line terminates. Page 33 has the full layout. Do not assume you can eyeball the routing. One misrouted line and you’ll have a dry bearing in a week. The manual gives you the exact locations so you can pre-cut your hoses before you start.

Groeneveld TWIN-3 Installation Manual: 92 Pages of Factory Data

This manual covers pump installation (page 39 for the Elme 817 spreader), electrical wiring (complete pinout diagrams), main line installation for the rotator and extension cylinder, OH frame mounting, and parameter settings. Section 9 walks you through programming the control unit. Section 10 details the testing procedure to verify system pressure and cycle time. Most aftermarket manuals stop at the mechanical install; this one gives you the full commissioning checklist. If you’ve ever rebuilt a Manual Transmission, you know the value of factory torque specs. The same principle applies here as in a Manual Transmission: you don’t skip the clearance measurements.

8 Block Types Documented with Part Numbers

Each block type has its own installation subsection. The 4-port B1, 2+2-port B2/B4 (standard and WTP), 7-port B3, 12-port B5, 22-port B5, 12-port B6, and the 12-port B2/B4 for OH frames. Hyster part numbers are listed where applicable. If your machine uses a specific block, you’ll find the exact routing and mounting bracket instructions. No generic diagrams. For related documentation, see the Groeneveld TWIN-3 Greasing System Installation Manual and Groeneveld TWIN-3 Installation Manual. If you have the Elme 7000 spreader, the Groeneveld TWIN-3 Elme 7000 Installation Manual covers that variant.

Does this manual cover the TWIN-3 system for Elme 817 Spreader?

Yes. The manual is specifically for the TWIN-3 automatic greasing system on the Elme 817 spreader production line. It covers pump installation, electrical wiring, distribution blocks, and testing.

Are torque specifications included for the distribution block fittings?

Groeneveld includes recommended tightening torques for the fittings in the installation instructions. Page 14 for the 4-port block shows the torque values. Do not guess these.

Can I use this manual for other Groeneveld systems?

This manual is TWIN-3 specific. Other systems use different blocks and wiring.

What is the difference between the B1, B2/B4, B3, B5, and B6 blocks?

The B1 is a 4-port block used for basic systems with four grease points. B2/B4 are 2+2-port blocks for standard or WTP configurations that allow two independent circuits. B3 is a 7-port block for medium systems. B5 comes in 12-port or 22-port versions for MPS/PPS systems requiring high capacity. B6 is a 12-port block also for MPS/PPS but with a different port arrangement. Each has a dedicated installation section with part numbers, hose routing diagrams, and mounting instructions. The manual covers all of them with separate procedures, so you can match your equipment exactly.

If you’re installing a TWIN-3 system, you need the original factory documentation. Download the Factory Manual from AutoRepairManuals and get the job done right.
