Isuzu NR 77 Training Manual – VP44 Injection System & ECM Diagnostics

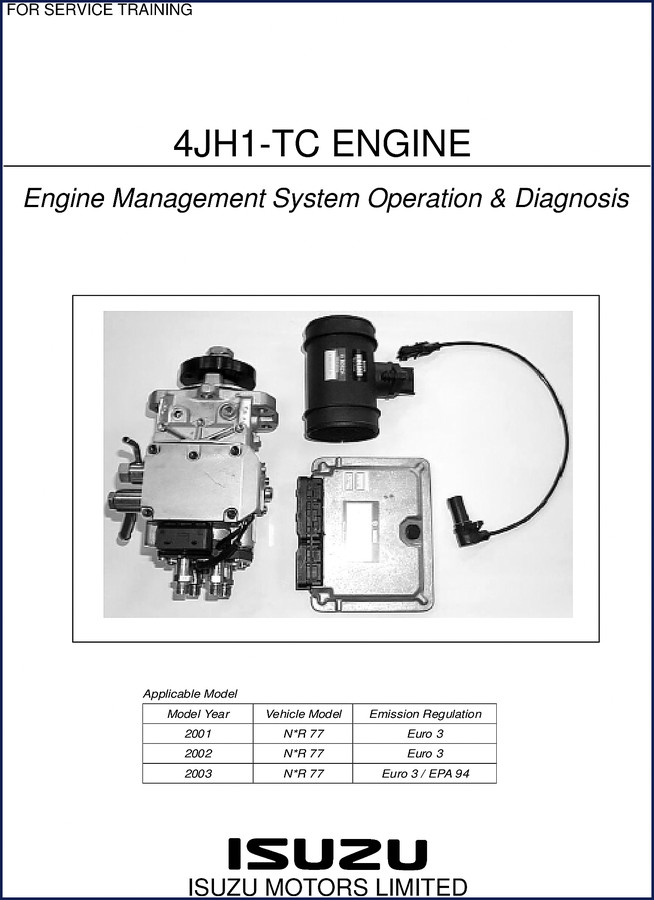

I’ve seen too many jobs go sideways because some kid used a third-party manual that had the crank bolt torque wrong. This manual for the Isuzu NR 77 (and related 4JH1-TC engine) is the real deal – 79 pages of factory procedures, not some internet copy-paste. It came straight from an Isuzu training program, so it’s the same stuff techs get in class.

Aftermarket documentation? I don’t trust it for anything more than a paperweight. When you’re inside a VP44 injection system or chasing an ECM wiring fault, you need the original pin assignments and strategy-based diagnostic flow. Anything less wastes your time, and time is money. This manual gives you the OEM path.

VP44 Injection System: What This Manual Covers

The VP44 injection pump is a common-rail precursor that uses a radial-piston design with electronic control. This manual devotes a full section to the characteristic of the VP44 injection system, including fuel quantity metering and injection timing principles. It does not gloss over the solenoid-valve behavior – it shows you exactly what signals the ECM expects and how the fuel-metering unit responds. If you’ve ever replaced a VP44 and had a no-start because the pump wasn’t calibrated to the ECM, you’ll appreciate the factory logic here.

Does This Manual Include ECM Wiring Diagrams?

Yes, and not just generic schematics. Page 26 (approximate – I don’t have the exact page in front of me) covers the ECM connector pin assignment and output signal. You get the pin numbers, wire colors, and signal names for both the ECM and the PSG (pump-side controller). The parts location diagrams split into LHD and RHD versions, plus ground locations, relay and fusible link positions. That alone saves you hours of tracing harnesses in the engine bay. I’ve seen guys guess which pin is the crank sensor return, then fry a $1,500 ECM. Don’t be that guy.

79 Pages of Factory-Spec Diagnostics

The strategy-based diagnostic section walks you through the thought process, not just a list of codes. It includes a diagnostic flow chart and a separate overview that explains when to use TECH 2 versus when to go straight to a symptom diagnosis. There’s a full page of intermittent fault procedures – how to isolate a glitchy sensor wire without replacing parts randomly. You also get the snapshot analysis procedure using TIS2000, which is the only way to catch intermittent crank-stalls on the road.

Get the Right Torque Values from the Factory Source

While this is a training manual (not a full service manual), it cross-references critical torque specs for injection pump mounting and high-pressure lines. It also mentions the special tools list needed for VP44 timing and injector removal. If you need the exact ft-lb for the pump drive gear bolt, don’t trust a forum post – get the OEM data. The Internal Combustion Engine relies on those torques to prevent leaks and pulley failures.

Strategy-Based Diagnostic Flowchart

That chart is worth the price alone. It starts with preliminary checks – battery voltage, grounds, fuel quality – then branches into visual/physical inspection before you even plug in a scan tool. The manual stresses that 80% of VP44 issues are electrical, not mechanical. It shows you how to use the breaker box to backprobe the ECM without damaging pin seals. That’s the kind of detail you only get from a factory program.

For context, this manual is part of a larger Isuzu training curriculum. The Automotive Industry Overview shows that proper diagnostic training reduces comeback rates. If you’re a shop owner, having this on the bench means your techs stop guessing and start solving. Every page came from Isuzu’s own engineering group – not a third-party reprint.

Is this manual for the 4JH1-TC engine only?

Yes. The ISBN and cover title specify the 4JH1-TC with VP44 injection. It is not for earlier mechanical-injection versions.

Does it include the TECH 2 operating steps for DTC reading?

Absolutely. The diagnosis with TECH 2 section covers the startup flow chart, typical scan data definitions, and what to do if no codes are set. It even has a separate page for snapshot display with TIS2000 – you get the step‑by‑step menu navigation, not just a vague ‘connect TECH 2 and read data’. That matters when you’re in the field and the customer wants the truck back today. I’ve used that exact procedure to find a failing MAF sensor that only triggered a code under load. The manual tells you which PIDs to graph during a road test. Without it, you’d be swapping parts for hours.
