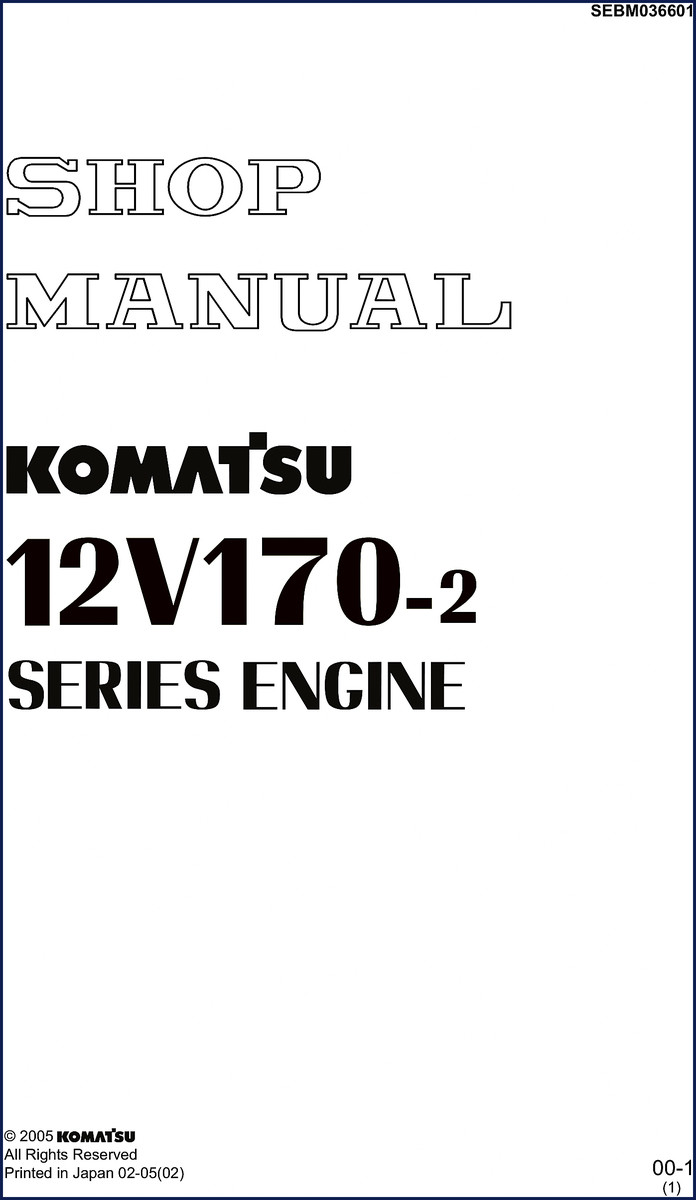

Komatsu 12V170-2 2005 Workshop Manual – 333 Pages of Factory Specs

You’ve got a Komatsu 12V170-2 2005 Workshop Manual on the stand and you need the real numbers. Aftermarket reprints that skip pages or guess at torque values? I’ve seen them. They cost you time and parts. This is the OEM document, 333 pages, direct from Komatsu. It covers the complete 12V170-2 series Engine – cylinder head torque, valve lash, cooling system flow rates, fuel injection timing. Every spec came off the factory floor in 2005 and this is the last word.

11 Structure and Function – What You Get

This section breaks down every system: air cleaner, turbocharger, after-cooler, cylinder head, cylinder block, main revolving parts, valve system, timing gear, flywheel, lubrication system, oil pump, filters, oil cooler, piston cooling valve, fuel system chart, injection pump, piping, injection nozzle, fuel filter, cooling system chart, water pump, thermostat, corrosion resistor, fan drive, alternator, starting motor, starting aid. That’s the full list straight from the table of contents. If you’re rebuilding a 12V170-2, you need the exploded diagrams and part relationships. The manual gives them with factory part numbers and oil flow paths. No generic drawings. The cooling system chart alone saves you from guessing which hose goes where. The water pump drive section shows the belt tension spec.

12 Testing and Adjusting – The Section That Pays

Ten pages of standard value tables for troubleshooting. Then a testing and adjusting tool list that tells you exactly which puller or dial indicator you need. Want to measure compression pressure? Page 12-10 shows the procedure and the pressure range in psi (283–313 psi at 600 rpm). Blow-by measurement? It’s in there. Adjusting valve clearance? That’s a separate heading – critical on this engine because the valve train geometry is specific to the 12V170-2. Fuel injection timing with the Komatsu electronic governor is covered with the exact sequence, including the timing marks and the lock-out procedure. If you skip this, you’ll have a no-start or smoke. This section also holds the data for fuel injection pressure adjustment shims and the fuel injection pump calibration data. That’s the stuff that aftermarket books either copy wrong or leave out. The troubleshooting section for the E-mode controller system lists 32 specific error codes – E0401 through E0443, plus startup and shutdown issues. Each code tells you the probable cause and the test point. That’s the kind of detail that turns a two-day diag into a two-hour fix.

Valve Clearance Adjustment: The Factory Procedure

Cold clearance for intake valves: 0.014 in. Exhaust: 0.030 in. The manual tells you the order to rotate the crankshaft, the locknut torque (28 ft-lb), and the recheck sequence. It also warns you about cylinder head warpage limits. Without the factory spec, you’ll either set them too tight and burn a valve or too loose and lose power. I’ve seen both. Use the book.

That’s it. No guesswork.

Does This Manual Cover the Fuel System?

Yes, and it’s thorough. Fuel system chart, fuel injection pump – including the drive and governor adjustments, fuel piping routing, fuel injection nozzle testing and cracking pressure specs, fuel filter replacement interval. The troubleshooting section for the E-mode controller system lists 32 specific error codes – E0401 through E0443, plus startup and shutdown issues. Each code tells you the probable cause and the test point. That’s the kind of detail that turns a two-day diag into a two-hour fix.

13 Disassembly and Assembly – Don’t Skip It

Sixty-plus pages of complete disassembly for the entire engine. Cylinder head removal sequence, piston and connecting rod assembly, timing gear removal, main bearing cap torque pattern. The assembly section includes the torque specifications for every bolt – connecting rod bolts, main bearing bolts, cylinder head bolts (in stages), flywheel bolts. All in ft-lb. No conversion needed. If you follow this, the engine will run right the first time. If you don’t, you’ll be pulling it back apart.

Is the fuel injection pump calibration data included in the manual?

Yes, page 12-50 has the full calibration data for the PF pump.

How do I adjust the valve clearance on a 12V170-2?

The manual gives the exact procedure in section 12, including the cold clearance specs (intake 0.014 in, exhaust 0.030 in – verify with manual) and the sequence. It also covers the necessary tools, the torque for the locknut (28 ft-lb), and the recheck after rotating the crankshaft two full turns. Without this, you risk wiping out the camshaft or burning a valve. That’s why you buy the factory manual, not a reprint.

If you’re serious about keeping this engine running, get the real data. Komatsu 12V170-2 2005 Workshop Manual – OEM Factory Specs is the exact document you need. For related models, check the Komatsu WA65-5 WA70-5 WA80-5 2005 Workshop Manual or the Komatsu WH609-1E0 WH613-1E0 WH713-1E0 WH714H-1E0 WH716-1E0 Workshop Manual. Also, if you’re pairing this engine with a Manual Transmission, the vehicle-specific manual will have the bellhousing bolt specs. Manual Transmission alignment is a separate skill, but this engine manual gets the power unit right. Download the Factory Manual and keep it on your bench.
