Komatsu 140M Workshop Manual

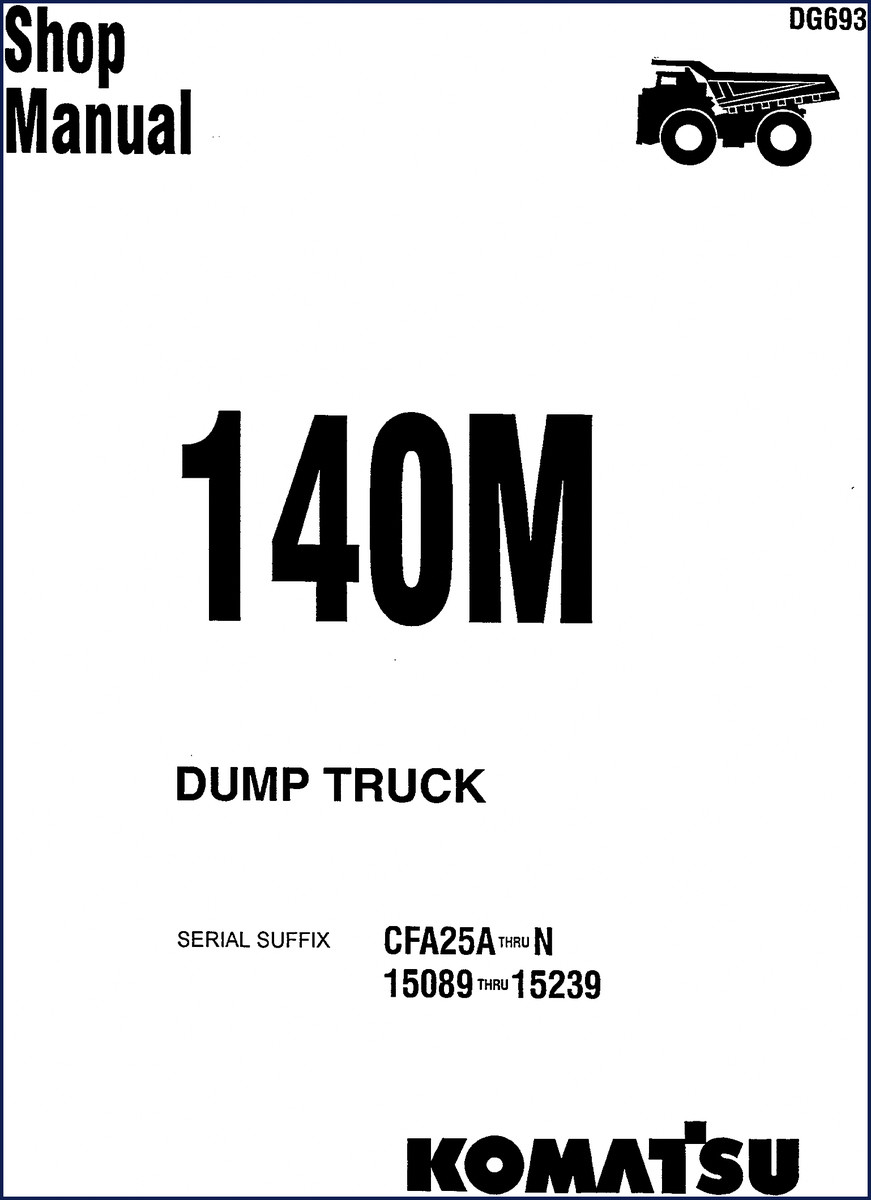

Been there. Waste an afternoon because some aftermarket manual gave you the wrong torque on a head bolt? That doesn’t happen with the factory Komatsu 140M Workshop Manual. This is the official OEM document. 447 pages. Not a reprint. Not a condensed version. It covers every system on the 140M dump truck – engine, fuel, cooling, transmission, brake – with the specs Komatsu used on the line.

Section C – Engine, Fuel, Cooling and Air Cleaner Coverage

Start with the heart of the truck. Section C goes through disassembly, service, and reassembly of the engine block, fuel injection components, cooling system, and the air cleaner assembly. Each procedure is written for a technician who knows their way around a wrench – no fluff, just step-by-step with torque values printed in bold. Need the injector pump spec? It’s in there. The radiator removal sequence? Page 200-range (exact page depends on your print, but it’s in the index). Don’t trust the generic coolant capacity chart from a third-party site – this manual gives the factory fill for the 140M.

What About the Transmission and PTO?

Section F handles the transmission and PTO. If you’ve ever pulled a Allison or a manual box apart with the wrong clearances, you know the cost. This manual gives the factory end-play, clutch pack clearance, and oil flow diagrams. For background on manual transmission fundamentals, take a look at Manual Transmission – but for the actual 140M specs, rely on these pages. The PTO section covers removal, shimming, and hydraulic feed lines. Don’t skip the warning about pressurized oil – it’s hot and under pressure.

Understand the Brake Circuit Before You Bleed

Section J – Brake Circuit – might save your life. The 140M uses a full air-over-hydraulic system with spring-charged parking brakes. The manual spells out the bleeding sequence, accumulator pre-charge, and adjustment procedure. Aftermarket summaries often leave out the purge order, which can trap air in the ABS modulator. Factory document includes the proper sequence and torque for banjo bolts. There’s even a Proposition 65 warning about diesel exhaust – read it. Safety isn’t a suggestion.

Komatsu WA65-5 WA70-5 WA80-5 2005 Workshop Manual covers a different platform, but the same level of detail applies. If you need info on the 140M’s power train, stay right here.

447 Pages: The Scope of This Manual

You get all eighteen sections: General Information (A), Structures (B), Engine/Fuel/Cooling (C), Electric System (D), Transmission/PTO (F), Drive Axle (G), Hydrair II Suspensions (H), Brake Circuit (J), Hydraulic System (L), Options (M), Operator’s Cab (N), Lubrication/Service (P), Alphabetical Index (Q), and System Schematics (R). Every system from the cab to the wheels is covered. The index alone is worth the time – it’s dense and cross-referenced. No flipping through pages of generic advice. Each section starts with a safety summary and tool list. That’s the kind of prep that keeps the job on schedule.

Source Validity: Why OEM Factory Documentation Matters

I’ve seen third-party manuals that copy Figure 3‑12 from this exact manual but leave out the note that says “torque tolerance ±10% unless stated”. The foreword on page 5 of the original PDF states: “All torque specifications have ±10% tolerance unless otherwise specified.” That kind of precision doesn’t survive a photocopy. This is the genuine Komatis factory manual – the same one the dealer tech uses. Komatsu WH609-1E0 WH613-1E0 WH713-1E0 WH714H-1E0 WH716-1E0 Workshop Manual and Komatsu PW95R-2 Workshop Manual – 520 Pages of Factory Specs follow the same philosophy. For more on manual transmission basics, you can read Manual Transmission – but when you need a specific value for the 140M, this is the only source.

Does the manual include wiring diagrams?

Yes. Section R has complete system schematics for the electric system and brake circuits.

How are torque values presented?

Each procedure lists the required torque in bold face type – for example, “100 ft.lbs. (135 N·m) torque”. Section A includes general torque charts for standard fasteners. The note on page 5 states that all torque specifications have a ±10% tolerance unless otherwise specified. Do not use generic values from a search engine; they are often for different materials or thread sizes.

If you’re working on a 140M, you need the real data. Skip the guesswork. Download the Factory Manual now.
