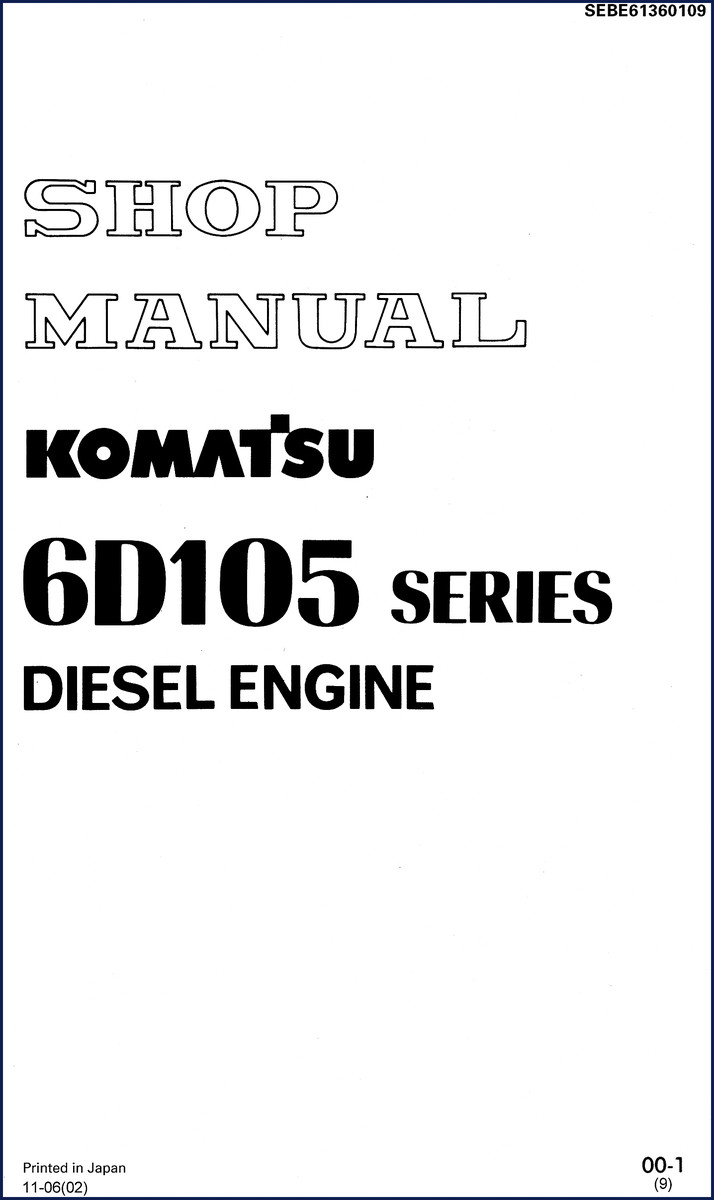

Komatsu 6D105 2006 Workshop Manual

If you’re wrenching on a Komatsu 6D105 diesel engine and you don’t have the factory manual, you’re gambling with your time and parts. I’ve seen too many guys chase misfueling issues because they guessed the injection timing. This is the 2006 Workshop Manual – 350 pages of Komatsu’s own procedures. No aftermarket junk. Komatsu 6D105 Series Diesel Engine Shop Manual is the real deal.

Engine Overhaul Coverage

This manual breaks down the engine body – cylinder head, liners, crankshaft, camshaft. Each section has disassembly and assembly procedures in chapter 13. You need to replace a cylinder liner? The manual tells you the press fit clearance. Valve seat angles are specified. Don’t trust a generic Chilton for these specs.

Valve Clearance: What You Need to Set

Section 12 includes adjusting valve clearance. The procedure is specific to the 6D105. Intake and exhaust valves have different clearances. You’ll find the exact feeler gauge thickness and the order to tighten the rocker arm locknut. Ignore this and you’ll get a burnt valve in 200 hours.

Fuel System Diagnostics

The fuel system section covers the injection pump, governor, feed pump, nozzles, and fuel cut solenoid. There’s a chart for construction equipment and generator applications. You get calibration data for the pump. If your 6D105 is hard starting, the troubleshooting table (starting defective or badness) lists 20 possible causes. KOMATSU 6D105 Diesel Engine Technical Manual goes deeper into pump specs.

7 Systems Covered

Intake/exhaust, engine body, lubricating, fuel, cooling, electrical, accessory. Each system has its own structure and function chapter (11) and testing/adjusting chapter (12). For example, the cooling system chart shows coolant flow paths. The thermostat opening temperature is in the maintenance standard section 14. Komatsu WA65-5 WA70-5 WA80-5 2005 Workshop Manual is a related chassis manual if you need the whole machine.

OEM vs Aftermarket: Know the Difference

Aftermarket manuals often combine multiple engine series into one book. That’s where torque specs get swapped. This is a genuine Komatsu publication, printed in Japan. The revision table in the front shows page updates. You’re getting the exact data the dealer uses. Don’t trust a PDF from some forum. Manual Transmission – that’s a different topic, but same principle: factory data is king.

Troubleshooting: 20 Real Fault Trees

The troubleshooting table covers everything from engine won’t start to oil in cooling system. Each fault has a list of causes and corrective actions. For example, “Engine oil pressure gauge fluctuates abnormally” – the manual walks through oil pump, regulator valve, and filter checks. This is where you save hours of diagnostic time.

Does this manual cover the fuel injection pump calibration?

Yes. Section 12 includes calibration data for the injection pump. You’ll find the fuel injection timing adjustment procedure and nozzle testing specs.

What torque values are listed in the maintenance standard?

The maintenance standard section (14) gives wear limits and clearances for cylinder head bolts, connecting rod bolts, main bearing caps, and more. However, the manual does not list torque values in ft-lb – it uses Japanese standard torque specifications in N·m. You’ll need a torque wrench that reads N·m. I always convert to ft-lb using a reliable chart. For cylinder head bolts, the sequence and angle tightening method is given. Manual Transmission is unrelated but follows similar OEM documentation principles.

If you’re rebuilding a Komatsu 6D105 or just chasing a fuel leak, get the factory procedures. The 2006 Workshop Manual is 350 pages of verified specs. Don’t guess. Download the Factory Manual.
