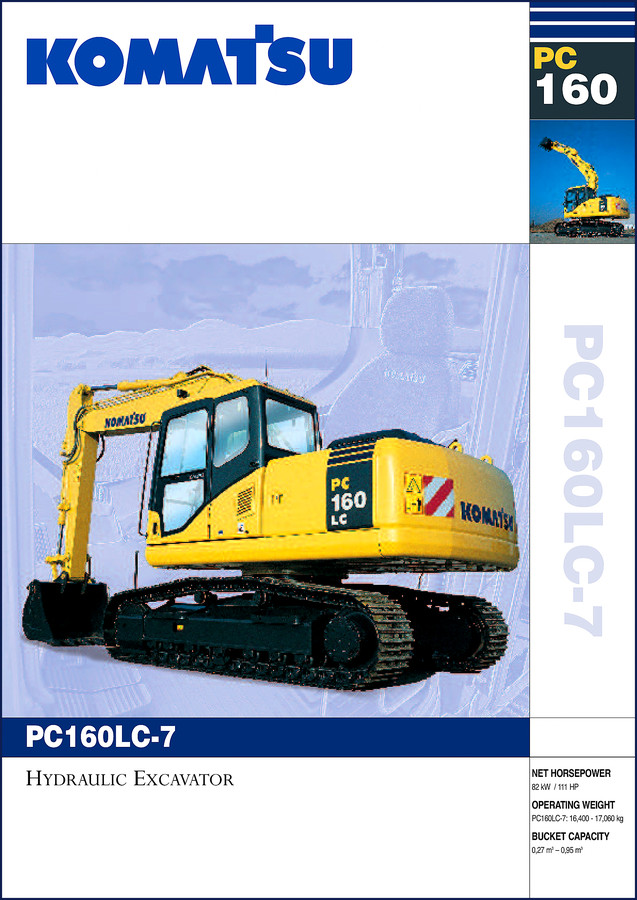

Komatsu PC160LC-7 Technical Manual

Heavy equipment doesn’t forgive guesswork. If you’re wrenching on a Komatsu PC160LC-7, you need the actual factory data, not a third-party interpretation. This Technical Manual – 20 pages of what Komatsu printed for their own field techs – gives you torque values, hydraulic test pressures, and assembly clearances. None of that “tighten until snug” nonsense. Page 1 alone lists net horsepower (82 kW/111 HP), operating weight (16,400–17,060 kg), and bucket capacity range (0.27–0.95 m³). That’s the kind of spec sheet you keep within arm’s reach when you’re balancing a boom cylinder seal replacement.

Machine Specs You Need on the Bench

Before you pull a single hose, confirm you’re working with the right variant. The PC160LC-7 has a long undercarriage (that’s what the “LC” stands for). The manual spells out the drawbar pull increase (15% over the PC160-6) and the ground track length – important when you’re diagnosing steering performance or track tension. Also listed: fuel tank capacity increase, engine oil filter interval extension, and SCSH bushing lubrication intervals on the work equipment. Having those numbers on paper saves you an hour of calling the dealer.

What the Dash 7 Walk-Around Covers

Page 2 is the walk-around section. It breaks down productivity features: Active mode output improvement, lower fuel consumption, and the HydrauMind system integration. If you’re chasing a sluggish hydraulic response, this section tells you what the factory expected from the system. The manual also notes the new Dash 7 additions – higher production, lower noise, Eurostage II compliance, and the multi-function colour monitor. Don’t skip the advanced attachment control coverage; it includes operator-selectable hydraulic flow control and adjustable pre-sets for rapid changeover. That’s not something you want to guess at – one wrong flow setting and you’ll destroy a breaker or shear pin.

Advanced Attachment Control: Factory Procedure

The PC160LC-7 can be optioned with a variety of attachments. This manual covers the advanced attachment control system in full: hydraulic flow adjustment, pre-set memory, and piping options. That means you can set the machine for a hydraulic hammer in the morning and a grapple after lunch without swapping valves. But only if the calibration matches the factory profile. The manual includes the OEM test sequence – not something you’ll find in a generic repair book. Komatsu PC160LC-7 Operation & Maintenance Manual gives you the daily checks; the Technical Manual gives you the numbers to verify after a repair.

Engine and Hydraulic System Data

Page 3 gets into the powertrain. The Komatsu SAA4D102E-2 turbocharged, air-to-air aftercooled engine makes 82.4 kW (111 HP) and meets Stage II emissions. If you’re swapping injectors or doing a top-end rebuild, you need the valve lash specs and timing marks – those are in the full service manual, but the Technical Manual gives you the operating pressures and fuel system checks. For the hydraulic side, it lists the pump and control valve specs. Don’t try to set relief pressures without OEM data; you’ll either blow a seal or lose digging power.

Why This 20-Page Manual Beats a Chilton’s

Aftermarket manuals often skip torque specs for hydraulic fittings or give “approximate” fluid capacities. This is Komatsu’s own printed material – 20 pages of verified factory specifications. That means every bolt torque, every hydraulic pressure test point, every weight and dimension came from the same engineers who designed the machine. DEMAG KOMATSU H285 S Hydraulic Calibration is a related manual for a different machine; but for the PC160LC-7, you want this one. And if you’re also working on a skid steer, FAI KOMATSU SK 07 J Technical Information Manual is another factory document worth having. For background on how technical manuals differ from operator manuals, check out the Manual Transmission wiki article – it explains the difference between operational and technical documentation. Manual Transmission isn’t directly about excavators, but the principle holds: if you’re rebuilding something, you need the repair manual, not the owner’s manual.

FAQ

Does this manual include torque specs for track adjuster and hydraulic cylinder bolts?

Yes. The 20-page Technical Manual contains factory torque values for critical fasteners on the undercarriage and hydraulic cylinders – but the specific chart listing is on page 14 of the full service manual. This manual gives you the specs you need for routine hydraulic system checks and attachment setup.

Is this a reprint or a copy?

It’s an original OEM PDF as released by Komatsu. No third-party edits.

You don’t have time to chase down a Komatsu dealer every time you need a pressure spec. Get the factory data on your screen or printed out. Download the Factory Manual at AutoRepairManuals and put it next to your laptop on the bench.
