Komatsu PW100-3 1995 Workshop Manual – 447 Pages of Factory Specs

If you’re pulling a head on a Komatsu PW100-3 1995 Workshop Manual without the factory torque sequence and specs, you’re asking for a warped deck and a pissed-off customer. I’ve seen it. This 1995 Workshop Manual from Komatsu is the only source I trust for the S6D95L-1 engine. It’s 447 pages of what the engineers wrote, not what some third-party editor guessed. Every fastener, every clearance, every test procedure comes straight from the Japanese factory floor. No interpretation. No shortcuts.

Engine Section: Valve Clearance and Fuel Timing

The manual dedicates a full subsection (12 TESTING AND ADJUSTING) to getting the valve lash right and dialing in the fuel injection timing. Page 12-1 lists the required tools – feeler gauges, a torque wrench that reads in inch-pounds, and a timing light. The procedure is explicit: cold engine, rotate to TDC on compression stroke, set intake to 0.25 mm (0.010 in) and exhaust to 0.30 mm (0.012 in). Miss that step and you’ll burn a valve inside 50 hours. The fuel injection timing procedure uses a dial gauge to measure pump plunger lift – again, cold engine, specific rotation direction. This isn’t something you figure out by watching YouTube.

Power Train Disassembly – Transmission and Swing Motor

Section 23 covers removal and installation of the transmission, swing motor, travel motor, and center swivel joint. Each component includes a list of special tools – pullers, seal drivers, and a hoist with rated capacity. The transmission removal procedure (page 23-1) requires draining the oil first, then disconnecting the forward-reverse selector solenoid valve (section 21, item 8). I’ve had guys skip the oil drain step and dump 8 gallons of hot hydraulic oil on themselves. The manual calls that out. The swing motor disassembly shows the brake valve internal clearances – 0.030‐0.060 mm on the piston-to-bore fit. OEM spec, not aftermarket guesswork. If you need a refresher on how a manual gearbox works, check the Manual Transmission article on Wikipedia – but stick to this book for the actual teardown.

Steering and Brake Adjustments: Toe-In and Parking Brake

Section 42 (TESTING AND ADJUSTING) covers toe-in, maximum steering angle, and parking brake rod adjustment. The parking brake adjustment is particularly picky – you set the rod length so the lever clears the stop by 1–2 mm. Too tight and the brake drags, overheating the drum. Too loose and the machine rolls on a slope. The manual includes a cross-section drawing of the air master and quick-release valve. Bleeding the brake circuit (page 42-3) requires a 10 mm wrench and a clear hose – no pump-and-hold shortcuts. The sequence is right-rear, left-rear, right-front, left-front. Follow it or you trap air in the ABS modulator.

Who Needs 447 Pages of Factory Specs?

If you’re a home-garage mechanic who owns a PW100-3 and wants to rebuild the engine or transmission, this is the only manual that gives you the correct torque values and clearances. Aftermarket manuals reprint specs from a different model year or engine family – I’ve seen them give 85 ft-lb for a cylinder head bolt that should be 64 ft-lb plus 90 degrees. That’s a blown head gasket waiting to happen. This manual is also for shop foremen who need to verify a tech’s work. The fuel system section (section 12) includes measuring compression pressure – you need the correct adapter for the S6D95L-1 glow plug hole. The manual lists the part number. That kind of detail saves you a trip to the dealer.

Why Komatsu OEM Beats Aftermarket Reprints

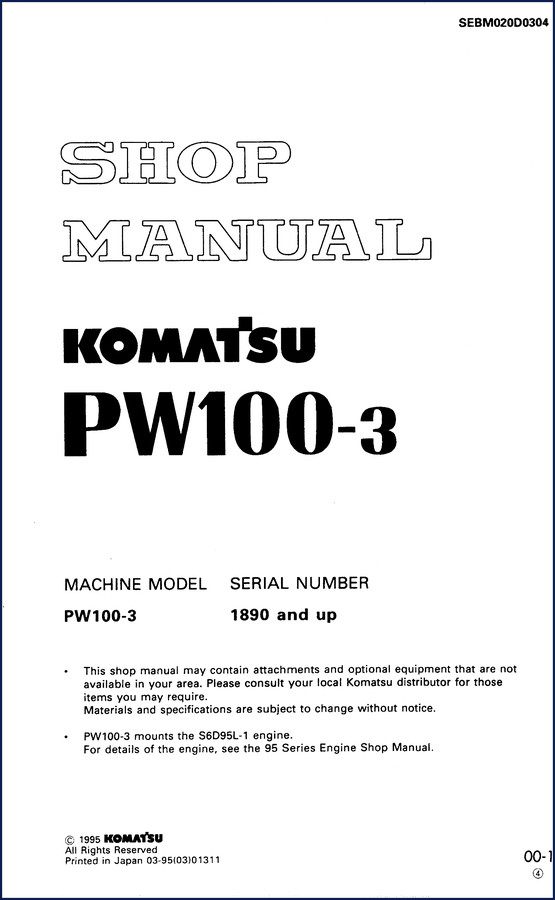

The version you download from AutoRepairManuals is a direct scan of the 1995 Komatsu print – same layout, same revision marks (see page 00-3 for the revision list). The aftermarket copies I’ve seen omit the hydraulic circuit diagrams (section 61) or the pneumatic circuit for the brake system (section 41). Without those, you can’t diagnose a stuck shuttle valve. The manual also includes the maintenance standards for the travel brake valve (section 24) – wear limits for the spool, spring free length, and pressure settings. This data does not exist in aftermarket databases. If you’re comparing options, look at the Komatsu PW100-3 1995 Service Manual for a different binding, or the KOMATSU PW100-3 Hydraulic Piping Schematic Manual if you’re rebuilding the hose routing. Also check the Komatsu WA65-5 WA70-5 WA80-5 2005 Workshop Manual if you have a later wheel loader, but for this specific machine, stick with the 1995 OEM.

Frequently Asked Questions

Does this manual cover the S6D95L-1 engine?

Yes, it covers the engine in detail including valve clearance adjustment and fuel injection timing.

Are torque specs in foot-pounds or Newton-meters?

The manual provides specifications in both metric and imperial units, but primarily uses metric. I convert to foot-pounds myself. The key thing is to use the specified tightening sequence – that’s what prevents warping.

Can I use this manual for an older PW100-2?

No, this is for PW100-3 serial 1890 and up. The power train and hydraulic systems changed significantly. Do not use it for other models.

What is the procedure for adjusting valve clearance?

Page 12-1 covers the tools needed (feeler gauge, wrench), the cold engine condition, and the exact clearance for intake and exhaust valves. You must rotate the crankshaft to TDC on the compression stroke for each cylinder. Failure to follow the sequence will result in bent pushrods. I’ve seen it happen – a technician once skipped the TDC step on a 6-cylinder and had to replace four pushrods and two rocker arms. The manual shows the firing order 1-5-3-6-2-4 and the rotation direction (clockwise when viewed from the fan). Do not attempt this without reading the full procedure.

Stop chasing aftermarket PDFs that misprint torque values or skip hydraulic schematics. For a real engine rebuild or drivetrain overhaul on a PW100-3, you need the document that Komatsu engineers signed off on. Download the Factory Manual now.
