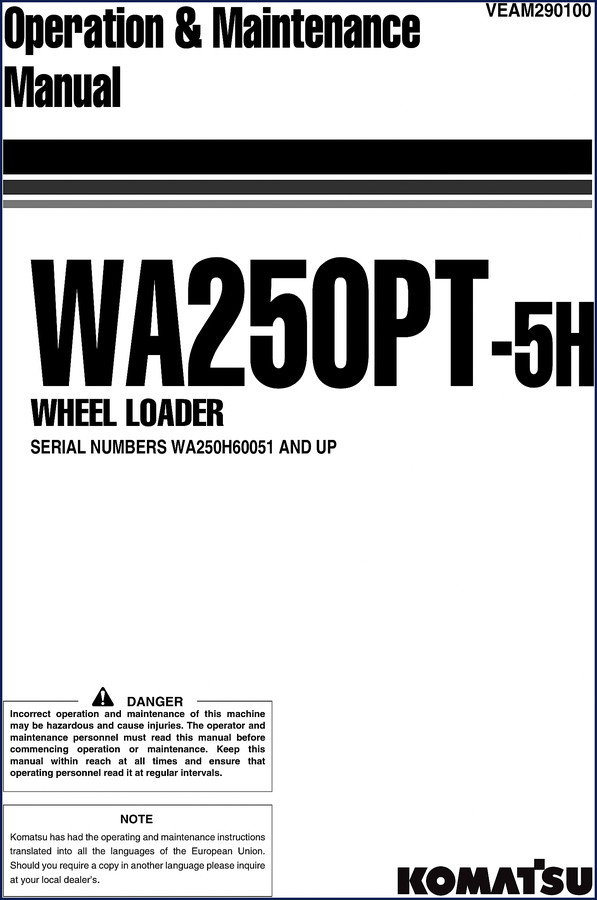

Komatsu WA250PT-5H Operators Manual

If you’re running a WA250PT-5H wheel loader and you don’t have the factory manual on the bench, you’re operating with one hand tied behind your back. I’ve seen too many guys guess at tire pressures or skip the walk-around check because they don’t know what to look for. This Komatsu WA250PT-5H Operators Manual puts the OEM specs in your hands – 255 pages of what the factory wants you to do, not some third-party rewrite. Komatsu builds these machines tight, and the procedures here are the ones that keep them running without a tow bill.

Dimensions, Weights and Operating Data

Before you move that machine onto a trailer or into a low-clearance shop, you need the numbers. This section gives everything: overall length, width, height, operating weight, tire sizes, and capacities. Page 1 carries the DANGER warning that tells you incorrect operation can cause injuries – and that’s where you start. The manual doesn’t let you skip the fundamental data. It lists the WA250PT-5H serial number range (WA250H60051 and up) so you know the manual matches your unit.

Where Are the Safety Labels?

The SAFETY chapter includes a diagram showing every safety label location on the machine. I’ve had guys tell me they “knew where the decals were” – then they wrecked a hydraulic line because they missed the pinch-point warning. This manual makes you walk around and check each one. It also explains the presentation of safety labels, so you can spot a faded or missing decal before it becomes a problem. Don’t bypass this.

Machine Monitor: Understanding the Warnings

The machine monitor section is worth the price alone. It breaks down the central warning lamp, character display portion, emergency stop item, caution items, and the warning/limit functions for travel speed. You get the pilot display, meter display, and inspection items. Page 4 shows the storage location for the manual itself – in the pocket at the rear of the operator’s seat. That’s where you keep this book, not buried under a seat cushion.

If you ignore a caution message because you didn’t know what the icon meant, you risk engine damage or brake failure. The manual spells out each warning type and what to do. Aftermarket guides skip half of these details.

Cold Weather Operation: Fuel and Coolant Precautions

San Antonio doesn’t get subzero often, but a loader that lives up north or sits on a winter site needs these specs. The manual covers low-temperature precautions: fuel and lubricants, coolant mixture, battery care, and warming-up the steering hydraulic circuit. It tells you what to do after completion of work in cold weather and what to check after the cold spell ends. This isn’t guesswork – it’s Komatsu’s tested procedure. Use the wrong coolant concentration and you’ll crack a block.

When the Machine Runs Out of Fuel – Towing and Troubleshooting

Every operator will hit empty sooner or later. The troubleshooting chapter walks you through what to do when the machine runs out of fuel, plus towing the machine with the engine running or dead. It includes towing pin usage and safety. The engine procedure tells you how to restart without damaging the injection system. I’ve seen a mechanic run a lift pump dry and burn it out because he didn’t know the bleed sequence. This manual prevents that.

Related manuals you might need: Komatsu WA250-5H WA250PT-5H 2003 Workshop Manual – Section: Structure, Function , Komatsu WH609-1E0 – WH716-1E0 Operators Manual | 272 Pages OEM, Komatsu WD900-3 2004 Operators Manual – Factory OEM Specs. For background on transmission types, see Manual Transmission and Manual Transmission on Wikipedia.

Does this manual include the engine serial number location?

Yes – page 1-2.

What does the manual say about tire pressure?

The manual has a full section on precautions with tires: handling tires, proper tire pressure, and storage. It also covers precautions for using the load and carry method with incorrect pressure. That section is critical for preventing blowouts or uneven wear. If you run the wrong pressure on a loader, you risk tire separation or rim damage. The manual specifies the exact pressures and inspection intervals. Don’t skip it.

Komatsu WA250PT-5H Operators Manual is the factory document. No aftermarket compilation, no missing torque specs, no guesswork. Download the Factory Manual and keep it in the operator’s seat pocket where it belongs.
