Kubota D1503-M-EB, D1703-M-EB, D1803-M-EB, V2203-M-EB, V2403-M-EB 2007 Technical Manual

You’ve got a Kubota diesel on the bench and the aftermarket CD gives you a torque spec that doesn’t match the bolts you’re holding. I’ve seen it happen. That’s why this 2007 Kubota D1503-M-EB, D1703-M-EB, D1803-M-EB, V2203-M-EB, V2403-M-EB 2007 Technical Manual exists. 17 pages of factory spec data, pulled straight from KISC. No guessing. No reprints. OEM print.

Servicing Specifications: Engine Body and Valve Train

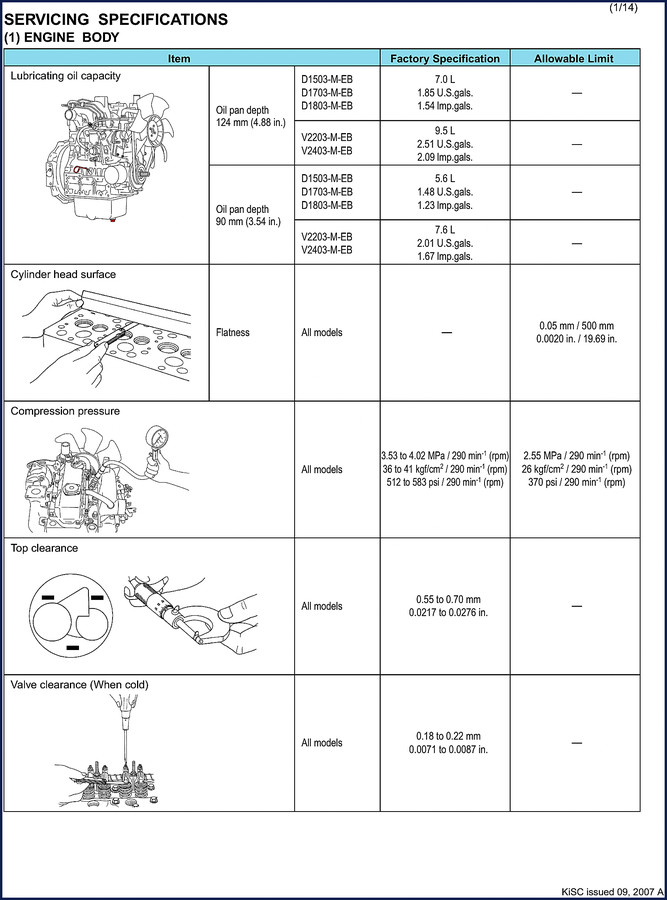

Page one lays out the engine body specs you actually need. Lubricating oil capacity depends on oil pan depth. For the D1503-M-EB, D1703-M-EB, and D1803-M-EB with a 124 mm pan, you’re looking at 7.0 L (1.85 U.S. gallons). The V2203-M-EB and V2403-M-EB take 9.5 L with that pan. Change the pan depth to 90 mm and those numbers drop. The manual spells it out in a table. Also listed: cylinder head flatness limit – 0.05 mm over 500 mm. That’s the kind of spec you don’t fudge.

Compression Pressure and Cylinder Head Flatness

Compression pressure for all models is factory spec 3.53 to 4.02 MPa at 290 rpm. Allowable limit drops to 2.55 MPa. If you’re chasing a hard-starting D1803-M-EB, that’s the number to check. Top clearance is 0.55 to 0.70 mm. Valve clearance cold sits at 0.18 to 0.22 mm. These appear on page 1 and page 2 of the PDF. Write them on the whiteboard before you pull the valve cover.

Does the Manual Cover Tightening Torques?

Yes. The TOC lists a dedicated section for tightening torques. I don’t have the exact values in front of me without the file open, but it’s there. Kubota publishes these for every fastener on the engine – head bolts, main bearings, rod caps. If you’re working on a V2403-M-EB and you guess a head bolt torque, you’ll warp the deck. Factory data eliminates that risk.

3 Reasons to Trust the OEM Print

First, the source: KISC issued this September 2007. That’s Kubota Industrial Service Corporation. Not a third-party aggregator. Second, the data matches the casting numbers on the engines. Third, the manual specifies allowable limits, not just factory new. You can assess wear on valves, springs, and guides. For example, valve spring tilt limit is 1.0 mm. Setting load at 35.0 mm is 117.6 N for all models. That’s the difference between a running engine and a burnt valve.

Valve Clearance and Top Clearance Data

Valve stem O.D., guide I.D., clearance limits – all tabulated. Intake face angle is 1.047 rad (60°), seat angle 0.785 rad (45°). Seat width spec is 2.12 mm. Push rod alignment limit is 0.25 mm. Rocker arm shaft to rocker arm clearance max 0.062 mm. These aren’t nice-to-haves. They’re pass/fail. The manual even gives tappet O.D. and guide I.D. for the D1503 through V2403.

I’ll say this bluntly: buying a reprint from some online outfit that scanned a photocopy? You’ll get blurry numbers. This download is a clean PDF of the original factory manual. Every number legible. You can zoom in on the valve timing diagram – 8° before TDC for intake opening, 20° after BDC for exhaust opening. That’s critical for setting injection timing on these indirect-injection engines.

If you’re a home garage mechanic with a Kubota-powered generator or a compact tractor, this manual saves you the trip to the dealer. You get the same sheet they’d print. Need to check oil capacity for a D1503-M-EB with a shallow pan? It’s 5.6 L. Want the compression limit for a V2203-M-EB? Page 1 shows 2.55 MPa / 370 psi. Stop relying on forum posts.
