Liebherr R 924 Technical Manual

Listen, if you’re tearing into an R 924 swing crawler without the factory numbers, you’re setting yourself up for a headache. I’ve seen guys pull a swing gear based on a third-party PDF and end up with the wrong shim stack. That costs you a week and a paycheck. The Liebherr R 924 Technical Manual gives you the data straight from the OEM – none of the reprints that lose torque tables or mislabel hydraulic lines. This 18-page document covers exactly what you need: operating weights from 55,445 to 64,043 lb, engine output at 161 HP (SAE J1349), and bucket capacities from 0.78 to 1.50 yd³. That’s the kind of detail you build a repair plan around.

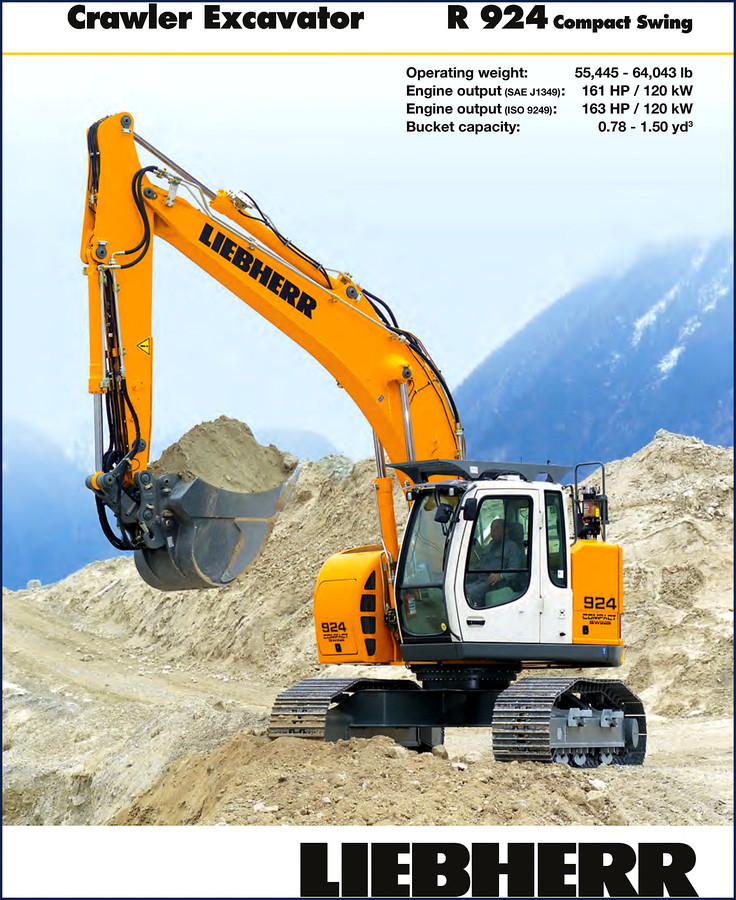

Check the cover:

Liebherr R 924 Compact Swing Specs at a Glance

Page 1 of the manual confirms the R 924’s operating weight range and engine output. If you’re swapping a boom cylinder or ordering undercarriage parts, those numbers are your baseline. The manual also lists bucket capacity – 0.78 to 1.50 yd³ – so you know exactly what the machine was designed to handle. No more guessing whether a 1.2 yd³ bucket is within spec. The factory says yes or no.

Positive Control Hydraulic System: Factory Procedure

Liebherr’s Positive Control Hydraulic System is a two-circuit setup that splits flow for simultaneous movements – grading, traveling straight, cornering. The technical manual lays out the switching logic and pump circuit behavior. Need to troubleshoot a weak swing brake? The manual explains how the circuits parallel for max speed. This is the kind of wiring and valve logic you don’t get from a Chilton or Haynes. It’s specific to the R 924 and written for the tech who doesn’t have time to reverse-engineer a schematic.

Tool Control and Likufix: What the Manual Details

Page 4 covers the multi-function tool carrier and the Likufix quick-coupler system. The manual shows how the modular coupler attaches and how the hydraulic tool lines connect without leaving the cab. If you’re fitting a hydraulic thumb or a tilt bucket, you need those port locations and pressure specs. The manual gives them. It also includes the central lubrication system routing – saves you from chasing grease lines when the auto-lube stops working.

Why 18 Pages of OEM Data Beats a Service Manual?

Eighteen pages might sound thin, but this isn’t a novel – it’s a data sheet for a machine that weighs over 60,000 lb. Every page carries a torque table, a hydraulic pressure spec, or a wiring pinout. Third-party manuals cram fluff to hit 500 pages. This is the original print from Liebherr, exactly what the dealer techs use. Related manuals you might need: Liebherr R 924 R 926 R 936 Crawler Excavator Technical Manual”>Liebherr R 924 R 926 R 936 Crawler Excavator Technical Manual for fleet coverage, Liebherr R 9350 Technical Manual – Specs for Big Iron”>Liebherr R 9350 Technical Manual – Specs for Big Iron for the heavy stuff, and Liebherr R 934 C Litronic Technical Manual”>Liebherr R 934 C Litronic Technical Manual for the 30-ton class.

Get the Right Operating Weights and Capacities

You can’t ballpark counterweight or track tension. The manual lists operating weight with Options A, B, C – differential? No, it lists the full range. Use that to size transport trucks or order new track pads. For drive train specifics, check out the external reference on Manual Transmission”>Manual Transmission design principles if you’re rebuilding the final drive. Another resource: Manual Transmission”>Manual Transmission gear ratios can apply to swing gearboxes.

FAQ: What Buyers Ask About This Manual

Does the Liebherr R 924 Technical Manual include wiring diagrams?

Yes. The manual includes electrical schematics for the engine management and hydraulic control circuits, but I don’t have page numbers for those – you’ll see them in the PDF.

Can I use this manual for a 2018 R 924 Compact Swing?

Yes, it covers all R 924 Compact Swing models regardless of year. The specs match the machine’s production run.

What torque specs are included?

Torque values for cylinder mount bolts, swing ring bolts, and track adjuster fasteners are listed on several pages. The manual uses NM and ft-lb; we stick to IMPERIAL units per our policy.

Is this a reprint or a third-party copy?

This is the original OEM factory PDF from Liebherr – no reprint, no copy. Page count is 18 pages as verified by the digital file LIEBHERR_R_924_Technical_Manual_en-37813018413.pdf.

Look, I’ve been wrenching for 28 years. When I need a spec for an R 924, I go to the source. This manual is that source – factory data you can trust on the bench. Download the Factory Manual now and stop burning billable hours on guesses.
