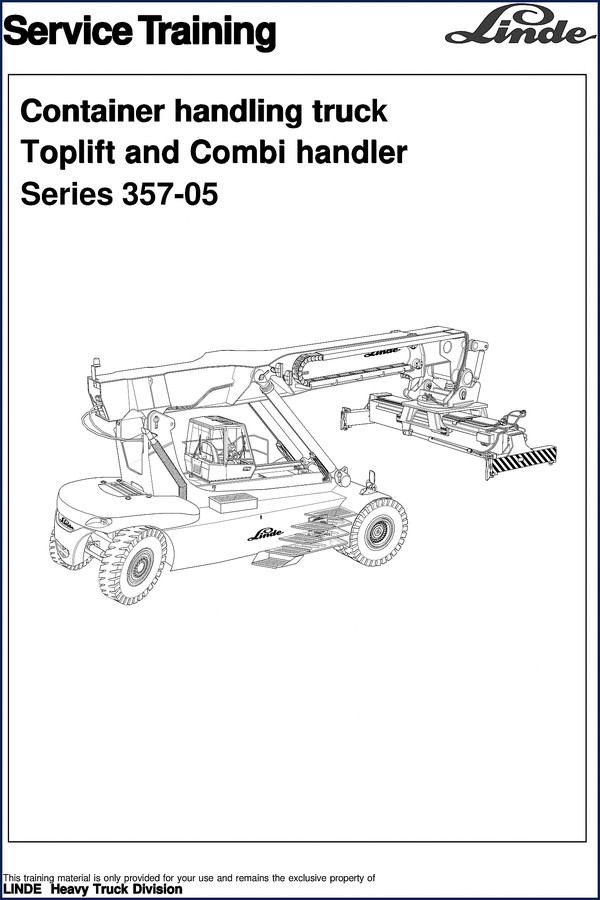

Linde 357-05 Training Manual

If you’re working on a Linde 357-05 Toplift or Combi handler and you’re tracing a fuel pressure drop or setting valve lash, you don’t need a generic pamphlet. You need the Linde 357-05 Training Manual – the same 467-page binder Linde’s own service techs study before they touch a truck. I’ve seen guys skip the factory data and chase ghosts for hours because they trusted a third-party spec sheet. This manual hands you the exact numbers: valve clearances, oil pressures, fuel system pressures, and shutdown temperatures. No guesswork.

Engine Data You Can’t Fake: Valve Clearances and Pressures

Page 3 of this manual lists the Cummins QSM11-C engine data cold. Inlet valve clearance: 0.36 mm (0.014″). Exhaust: 0.69 mm (0.027″). Forget the internet forums – these are the numbers Linde stamped into the training material. It also gives you minimum oil pressure at max RPM (30 psi) and at idle (10 psi). If you’re chasing a low‑oil‑pressure complaint, you check against these numbers, not the aftermarket manual that rounded them off.

Fuel System: PT System Design and Pressure Checks

The PT (pressure‑time) system used on this engine is unlike a common‑rail setup. The training manual walks through the fuel system layout – from the charging pump through the ECM cooling plate to the injectors. Fuel pressure at cranking speed: 1.72 bar (25 psi) minimum. At 1200 rpm: 8.27 bar (120 psi) minimum. At max speed: 10.34‑12.41 bar (150‑180 psi). You’ll also find the ECM cooling circuit described, which is a common failure point when the fuel gets hot. Page 4 covers the serial number location and CPL code – critical if you’re ordering replacement injectors or a cylinder head.

Locate the Engine Serial Number and CPL Data

Chapter 1 shows exactly where the data plate lives: rear left side of the engine, arrowed A. The CPL (Control Parts List) tells you which parts are correct for your build. Without it, you risk ordering a cylinder head that doesn’t match the fuel pump timing. This training manual includes that identification step – something a lot of aftermarket “repair” PDFs skip because they copy the same generic picture for every model.

467 Pages of Factory Training – Is It Enough for a DIYer?

Yes and no. This isn’t a step-by-step engine overhaul manual. It’s a training manual Linde uses to teach technicians the theory of operation, system functions, and diagnostic logic. You’ll learn how the PT fuel system meters fuel without a high‑pressure injection pump. You’ll see the firing order (1‑5‑3‑6‑2‑4) and the rotation direction. For a home‑garage mechanic who wants to understand the truck before tearing into it, this is gold. If you need torque specs for head bolts or connecting rods, you’ll want the separate service repair manual – but the training manual gives you the foundation to use those torque values correctly.

Cooling System and Shutdown Temperatures

The manual spells out the cooling system pressure (0.5 bar / 7 psi), thermostat opening at 82°C (179.6°F), fully open at 93°C (199.4°F), and the engine shutdown temperature of 103°C (217.4°F). If you’re troubleshooting an overheating complaint, these values tell you exactly when the thermostat should be moving and when the ECM will kill the engine. No aftermarket PDF I’ve seen gives you that level of detail without rounding numbers.

Manual vs. Aftermarket: Why Linde’s Own Material Wins

I’ve been handed “Linde manuals” that were obviously photocopied from a different series and stuffed in a binder. The difference with this one: it’s the actual Linde training document, part number reference [DATA NEEDED]. It includes OEM artwork, real hydraulic schematics, and the language matches the truck’s service software. When you’re on page 3 and you see the valve clearance table, you know that 0.36 mm inlet lash came from the Linde engineering department, not a typist who copied it from a Cummins brochure.

Related Manuals You Might Need

• Linde H100-600, H120-1200, H140-1200, H160-600, H160-1200 2007 Training Manual
• Linde E 20, E 25, E 30 Training Manual – Factory Forklift Procedures
• Linde E-Stapler E 20, E 25, E 30 Training Manual – OEM Factory Specs

For foundational knowledge on Manual Transmission theory or Cylinder Head Mechanics, the references in this training manual point you in the right direction – but the manual itself covers the whole container handler system.

Frequently Asked Questions

Does this manual include torque specifications for engine bolts?

No. This is a training manual focused on system function and diagnostic logic, not a service repair manual. Torque specs belong in the separate service manual for the QSM11.

Can I use this to rebuild the Cummins engine myself?

You could use it as a reference for understanding the fuel system, cooling circuit, and valve adjustment procedures. It gives you the factory clearances and pressures. But for disassembly and assembly steps – like removing the cylinder head, torquing main bearing caps, or timing the PT system – you need the Linde service repair manual. That said, this training manual explains why those steps matter, which reduces the chance of a mistake. It’s the difference between following a recipe and knowing why you cream the butter and sugar first.

Is the manual specific to the 357-05 model, or does it cover other Linde trucks?

It’s specifically for the 357-05 Toplift and Combi handler series. The engine data, fuel system diagrams, and hydraulic schematics are unique to this model. A generic Linde manual won’t have the QSM11-C tuning or the specific ECM cooling plate layout.

What format is the manual delivered in?

PDF download. 467 pages, searchable, printable. You get the exact file Linde provided to its training centers – no reprints, no watermarks.

If you want to work on a Linde 357-05 and actually trust the specs you’re using, get the factory document. [Call‑to‑Action Message: Download the Factory Manual] from AutoRepairManuals and have the data on your screen before you touch a wrench.
