Manitou MT1745HSL Parts Catalog
If you’re trying to order parts for a Manitou MT1745HSL without the factory parts catalog, you’re going to waste time and money. I’ve seen guys order the wrong brake master cylinder because the aftermarket PDF showed a different revision. That’s not a problem with this 450-page OEM Parts Catalog from Manitou North America. It’s a direct scan of the original document – catalog 547863, revision R12-03 – for the Series 2-E2 Turbo MONO-ULTRA models. Every exploded diagram, every part number, every serial number break point comes straight from the manufacturer. No reprints, no third-party redraws.
Boom Hydraulic Cylinders: Identifying the Right Seal Kit
Page 245 kicks off the lifting cylinder assembly (10CA211). The catalog breaks down each cylinder individually – inner boom extending (page 253), outer boom extending (page 257), compensating (page 249), leveling (page 271), locking (page 267), stabilizer (page 275), and tilting (page 263). Each assembly has its own illustration code. If you need a seal kit for the compensating cylinder, you can cross-reference the part number right there instead of measuring seals by hand. That’s the kind of detail that keeps a machine running and a billing cycle on track.
Brake Hydraulic Circuit – Page 105: What You’ll Find
Brake systems on these telehandlers are finicky. The manual devotes code 6BA147 to the brake hydraulic circuit on page 105, plus separate sections for the brake lever assembly (6BA122, page 103) and brake lever installation (6BB107, page 113). You get the factory layout of lines, fittings, and the master cylinder. I’ve used these pages to track down a leak that turned out to be a banjo bolt with the wrong shoulder length – something a generic parts list would never catch.
Does This Catalog Include Serial Number Intervals?
Yes. Look at the symbol key on page 3 of the manual. You’ll see symbols for “From Serial No.” and “Up to Serial No.” – clearly marked with any point in production. When a part changes mid-year, the catalog tells you whether it applies to your machine or not. That alone saves a phone call to the dealer. The this Wikipedia article on diesel engines explains how serial number tracking improves reliability, and this manual applies that same principle to every component.
Engine Block and Camshaft Coverage – Parts for the Powertrain
Two dedicated sections cover the engine: cylinder block assembly (AP1490, page 357) and camshaft timing gear (AP1494, page 375). The crankshaft assembly is on page 361. These are the pages you need when you’re rebuilding or sourcing bottom-end parts. The alternator installation (AP1501, page 397) is also included, which matters if you’re swapping a failed unit and need the correct bracket and pulley part numbers. this Wikipedia article on diesel engines covers the general theory – this manual covers the specific Manitou application.
3 Critical Sections for Brake System Repairs
If you’re touching the brakes, you’ll need at least three different sections from this catalog: the brake lever assembly (page 103) for pivot hardware, the brake hydraulic circuit (page 105) for lines and master cylinder, and the drive axle brake disc front (AX1536, page 455). Don’t start a brake job without verifying part numbers across all three. A missing circlip on the lever pivot can cause a pedal to stick – I’ve seen it.
Source Authenticity: OEM First Printing vs. Aftermarket

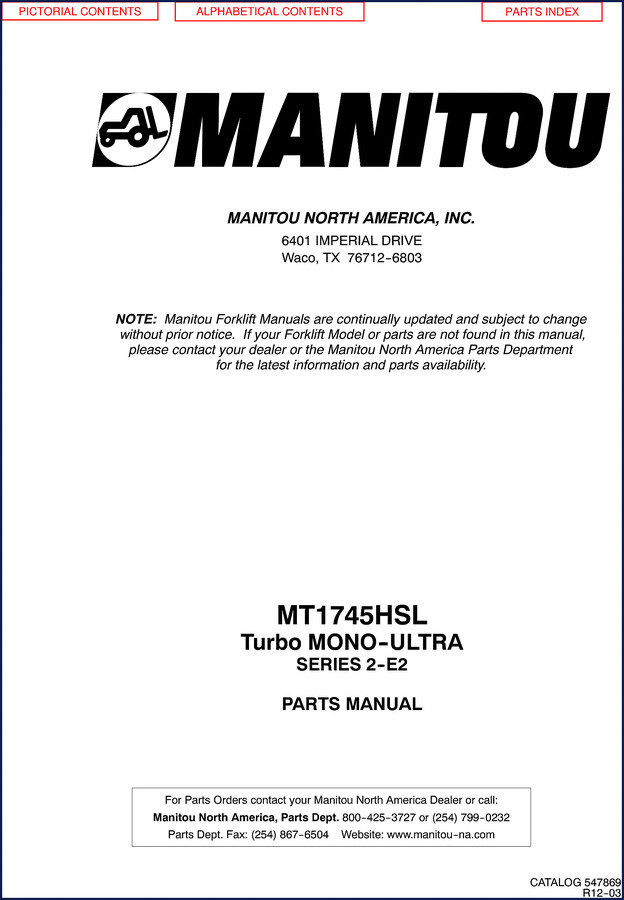

Aftermarket parts catalogs often redraw illustrations and skip serial number breaks. This one is a direct reproduction of the original Manitou publication. The title page shows Manitou North America’s address in Waco, TX, and the parts department phone numbers. You’re getting the same document the dealer uses when you call with a serial number. No scanned headers lost, no blurred diagrams. If you’ve ever tried ordering a hydraulic fitting from an aftermarket list and got the wrong thread pitch, you know why this matters.
- How do I know this catalog matches my specific MT1745HSL?
- Check the model designation on page 1: MT1745HSL, Turbo MONO-ULTRA, Series 2-E2. Then cross-reference your machine serial number using the symbols inside the catalog. If yours falls within the listed ranges, you’re covered.
- Can I return the PDF if I find a mistake in the part numbers?
- This is a digital download of the original OEM document. Manitou releases revision updates – for example, this one is R12-03 – and if a part number changed after that revision, the manual won’t reflect it. Verify the revision date against your machine’s production date before purchasing. No refunds for obsolescence.
Stop wasting shop hours hunting around aftermarket sites for part numbers that may or may not fit. Download the Factory Manual and keep this 450-page reference on your tablet or bench. Your parts counter will thank you, and your customers will get their machine back faster.
