Massey Ferguson 290 2000 Parts Catalog – Factory OEM Specs

You have a Massey Ferguson 290 sitting in the barn with a hydraulic leak or a tired transmission. You pull a part off, and the number is worn to nothing. Then you start chasing internet forums, cross-referencing aftermarket catalogs that swap supersessions like they’re trading cards. That’s wasted time. I have been turning wrenches since before some of you were born, and I have seen more damage caused by wrong part numbers than by worn-out tools. A factory Parts Catalog stops that guesswork cold.

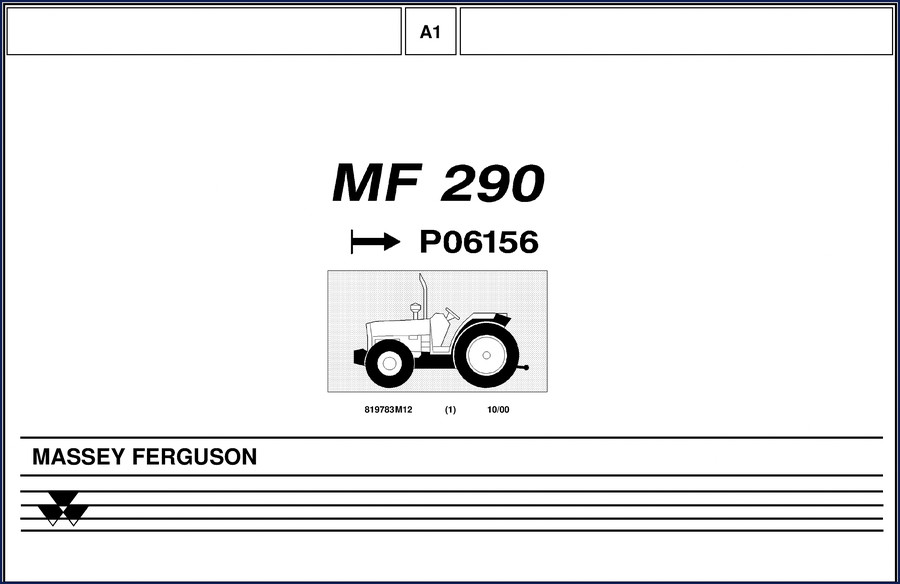

This is the Massey Ferguson 290 2000 Parts Catalog – a 2000 publication, 450 pages of OEM exploded views and part numbers. It is not a reprint or a third-party compilation. It is the exact document MF dealers used to order parts when the 290 was still in production. If you need a piston ring set for the Engine group (group 10) or a bearing for the Transmission (group 25), the number in this book is the one that matches the factory build.

10 Engine: What the Manual Covers for Your MF 290

Group 10 is the engine section. It covers the short block, cylinder head, valve train, oil pump, and front timing cover. Each component is shown in an exploded diagram with a callout number that links directly to the part number list. You get metric bolt sizes (M12 x 35/30, 12-point head – see page 5 of the PDF), gasket kits, and seal part numbers. There is no interpretation. The number you see is the number you order.

For the Massey Ferguson 290, the engine is a Perkins diesel. This catalog lists every fastener, gasket, and internal part. I have used factory catalogs from MF for years, and the accuracy of the supersession data in these books is why I refuse to trust aftermarket documentation on principle. Aftermarket catalogs often combine multiple model years into one chart and drop critical notes like “used with engine serial number above 70000.” This manual gives you the original engineering numbers.

25 Transmission: Finding the Right Parts

Group 25 covers the transmission – main shaft, countershaft, shift forks, synchros, and housing. The OCR data shows a rear housing section with part number 00013105 3−0001−104−A. That is a real MF part number. You can verify it against the numerical index at the back of the Parts Catalog. Transmission parts are expensive. Ordering the wrong input shaft bearing because a third-party site listed a superseded number without telling you costs time and money. This catalog shows you the original part, the current supersession (if any), and the group breakdown so you know exactly where each part lives.

If you are rebuilding a 290 transmission, you need the exploded view from this manual. The Transmission section alone saves you from pulling the wrong cluster gear. I have seen guys install a 6-speed cluster in an 8-speed housing because they used a generic cross-reference. That mistake destroys the case. Do not be that guy.

Group Index vs Numerical Index: How to Navigate

The manual has three index methods: a group index by section (Engine, Transmission, Rear Axle, etc.), an alphabetical index, and a numerical index. The group index starts on page 3 of the PDF (marked “GROUP INDEX ALPHA”). The numerical index lists every part number in ascending order. If you have a part number from an exploded view and want to find its description, you flip to the numerical index. If you want to find the part for a specific assembly, you go to the group. Massey Ferguson engineers designed these indexes for a mechanic holding a greasy part, not an office clerk. You can find what you need in under 30 seconds. That is faster than any digital search when your hands are covered in oil.

OEM Parts Catalog vs Aftermarket: Why This Matters

I have had customers bring me aftermarket catalogs that showed the wrong oil seal dimensions for a MF 290 rear axle. The aftermarket book listed a 2.5-inch shaft diameter when the factory axle uses 2.362 inches. That 0.138-inch difference means the seal leaks within 50 hours. The factory Parts Catalog lists the correct seal dimensions – not in text, but in the part number itself. Every number in this book traces back to the Massey Ferguson engineering release. You can also check related manuals like Massey Ferguson 290 2000 Parts Catalog – 450 Pages OEM or the MF300 series Massey-ferguson MF300 Parts Catalog – 607 Pages – Factory OEM if you work on larger tractors. For the older 500 series, we also stock Massey-Ferguson MF500 1977 Parts Catalog – 517 Pages Factory OEM.

The Massey Ferguson 290 2000 Parts Catalog is not a repair manual – it is a parts identification reference. If you need torque values or service procedures, you pair this with the factory service manual. But for ordering parts, this book is the final authority. The Automotive Industry Overview has come a long way, but the fundamentals of sourcing genuine parts remain the same: use the factory-issued part number. The Automotive Industry Overview may be broad, but this catalog is narrow – it covers only the 290 with absolute precision.

Who Needs This Manual? Home Mechanics and Small Farm Owners

If you own a MF 290 and do your own maintenance, this Parts Catalog is a necessity. You can call a dealer and read off the group number and part number – they will not argue with you. Home garage enthusiasts often get stuck when they cannot identify a part because the casting number does not match any catalog. This manual gives you the exact exploded layout so you can point to the part on the page and say “I need this.” It also covers ancillary equipment (group 15), hydraulics (group 70), sheet metal (group 100), lighting (group 120), and accessories (groups 150, 160, 170). That is everything on the tractor from the front axle to the rear PTO.

One note of caution: if you are restoring a Massey Ferguson 290 built before 2000, check the serial number. The 2000 edition includes updates for late production. If your tractor is older, the part numbers for items like injector lines or steering cylinders may differ. Always verify with your serial number range using the information in the manual itself.

FAQ

Does this parts catalog include torque specifications?

No. This is a parts identification manual only. Torque specs come from the service manual.

How do I find a specific part number if I only know the part name?

Use the alphabetical index at the front of the manual. It lists parts by description in English, French, German, Italian, and Spanish. For example, look up “bearing” and you get the group and page reference. Then turn to that group’s exploded view to locate the exact component. The numerical index at the back then gives you the part number and description. If you have a part number from a previous repair, the numerical index tells you the group and page. This manual covers 450 pages of data – every engine, transmission, rear axle, front axle, hydraulic, sheet metal, lighting, and accessory component. The front axle and steering section (group 60) is especially useful when rebuilding steering boxes; the exploded views show all seals and bushings separately.

Massey Ferguson built the 290 to be field serviceable, but only if you have the right parts. Stop chasing internet cross-references. Download the Factory Manual and get back to working on the tractor.
