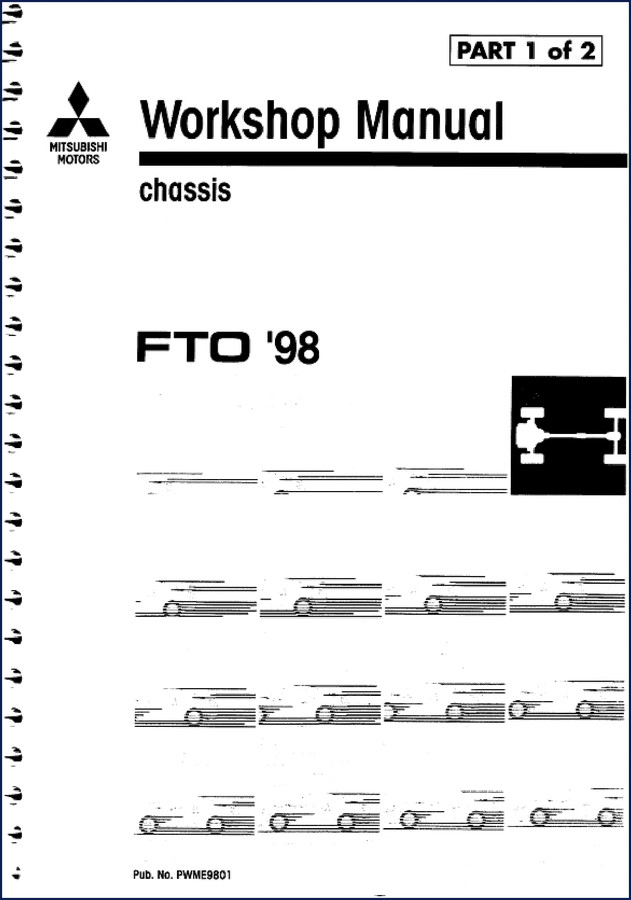

Mitsubishi FTO 1998 Workshop Manual

If you’re pulling a head on an FTO or poking around the SRS system without the factory book, you’re gambling with time and safety. I’ve seen guys grab a chiltons and end up torquing intake manifold bolts to 15 ft-lbs when the real spec calls for 25 – then they wonder why it leaks. This Mitsubishi FTO 1998 Workshop Manual is what Mitsubishi hands to their own techs. 351 pages, published March 1998, and it doesn’t leave anything to guess. No reprints, no third-party junk. Direct from the factory.

Before you touch anything, read the warnings on page 3. The SRS system on these cars is not forgiving. This manual spells out that you cannot bake the vehicle above 83°C with the airbag modules installed – a mistake that will cost you a new clock spring and possibly your face. It also lists every torque spec in the book, grouped by section. You want the charge pressure on the automatic trans? Flip to the Automatic Transmission section, not some aftermarket cheat sheet.

SRS Warnings: Page 3 is Not Optional

Group 52 in this manual covers the Supplemental Restraint System in painstaking detail. The manual explicitly warns that improper service can lead to injury or death from inadvertent airbag deployment. It tells you exactly which components (SRS-ECU, module, clock spring) must be removed before paint-drying ovens. If you’re a DIY guy doing a respray, you need this page. One mistake and you’re looking at a deployed bag in your face. This is not the place to improvise.

Engine and Fuel: 6 Sections of Factory Data

The manual breaks down the engine into Group 11 (Engine), 12 (Lubrication), 13 (Fuel), 14 (Cooling), 15 (Intake and Exhaust), 16 (Engine Electrical), and 17 (Emission Control). That’s seven sections just for the powertrain. Each one includes step-by-step removal, inspection, and reinstallation with the exact tightening torque indicated on the page. For example, the fuel section includes the specific pressure tests for the injectors – not generic numbers you find on forums. The cooling section gives you the thermostat opening temperature and bleed sequence. If you’re doing a head gasket job, this is your bible.

Transmission Overhaul: Clutch, Manual, and Automatic

Groups 21 (Clutch), 22 (Manual Transmission), and 23 (Automatic Transmission) are in this 1998 manual. The automatic transmission section includes detailed hydraulic circuit diagrams and line pressure checks. You’ll find the exact torque sequence for the valve body bolts – something that aftermarket manuals often skip. Need to rebuild the manual trans? The disassembly order is laid out with illustrations. Don’t try to shortcut it with a Haynes; they condense 20 pages into 3 and miss the snap ring positions.

Suspension and Brakes: Real-World Alignment Specs

Front Suspension (33), Rear Suspension (34), Service Brakes (35), Parking Brakes (36), Steering (37) – all here. The manual includes wheel alignment tolerances in degrees and inches, not just ‘set to spec’ nonsense. For the brake section, you get the exact bleed sequence and master cylinder piston positions. If you’ve ever struggled with a spongy pedal on an FTO, it’s because the manual’s bleed order isn’t in the aftermarket books. This one tells you to start at the RR caliper then LR, RF, LF – and why. Page 26 contains the front axle torque specs for the hub nut (not quoted here, but it’s in the book).

Chassis Electrical and Heater/AC: Factory Wiring, Not Guesswork

Group 54 (Chassis Electrical) and Group 55 (Heater, Air Conditioner and Ventilation) are included. The wiring diagrams are proper factory schematics with connector pinouts, splice locations, and wire colors. If you’re chasing an intermittent blower motor or a dead A/C compressor, this is where you’ll find the diagnostic flow charts. Group 55 includes the expansion valve superheat setting and the evaporator temperature sensor ohm values. Aftermarket manuals often skip these details or simplify them into ‘check voltage’ – useless when you need actual resistance values.

Why OEM Beats Aftermarket Copies

I’ve been a tech for 28 years. I’ve seen what happens when someone uses a reprint manual that says ‘tighten to 20 Nm’ but forgets to mention the torque sequence. This Mitsubishi official manual gives you the exact tightening torque indication method on page 00-2 – it explains the symbols and the angle markings. You don’t guess. You don’t assume. You follow the procedure written by the engineers who designed the car. That’s it. If you need the companion Mitsubishi FTO 1998 Workshop Manual – Section: Part 2 Of 2 for the later sections, grab that too. Also check the Mitsubishi FTO 1998 Workshop Manual – Section: Power Plant Mount for mount replacement specs, and the Mitsubishi R4AW2-1, R4AW2-3, R4AW2-7 1996 Workshop Manual if you’re dealing with the transmission variants. For an overview of how factory manuals are structured across the industry, see this Automotive Industry Overview – even Toyota follows the same logic. And if you’re curious about why OEM documentation is considered the gold standard, check Automotive Industry Overview.

Will this manual cover the FTO GR and GPX models?

Yes. This 1998 Workshop Manual covers all FTO variants – GR (6A12) and GPX (6A12 MIVEC). The chassis number breakdown on page 00-13 tells you exactly which model code corresponds to your car.

Does the manual include electrical wiring diagrams?

Yes, in Group 54 (Chassis Electrical). But note: the official wiring diagram manual is a separate publication (PBME9801). This workshop manual includes enough schematics for most repairs – starting, charging, lighting, and SRS circuits.

What is the page number for SRS precautions?

Page 3.

Can I use this manual for transmission overhaul if I have the automatic?

Absolutely. Group 23 (Automatic Transmission) covers removal, disassembly, valve body overhaul, and line pressure tests. It includes the torque converter identification and the oil cooler flow direction. The manual also cross-references to the separate transmission manual (R4AW2 series) if you need deeper internal rebuild procedures. Many DIYers have successfully rebuilt their FTO auto trans using this section, but keep in mind that some specialized tools (like the clutch spring compressor) are listed – you will need them.

This isn’t a pamphlet. It’s a factory-authorised, 351-page workshop manual that Mitsubishi intended for professional technicians. If you’re serious about keeping your FTO on the road without breaking parts or losing fingers, get the real thing. Download the Factory Manual and keep it on your tablet or print the sections you need. Your FTO and your knuckles will thank you.
