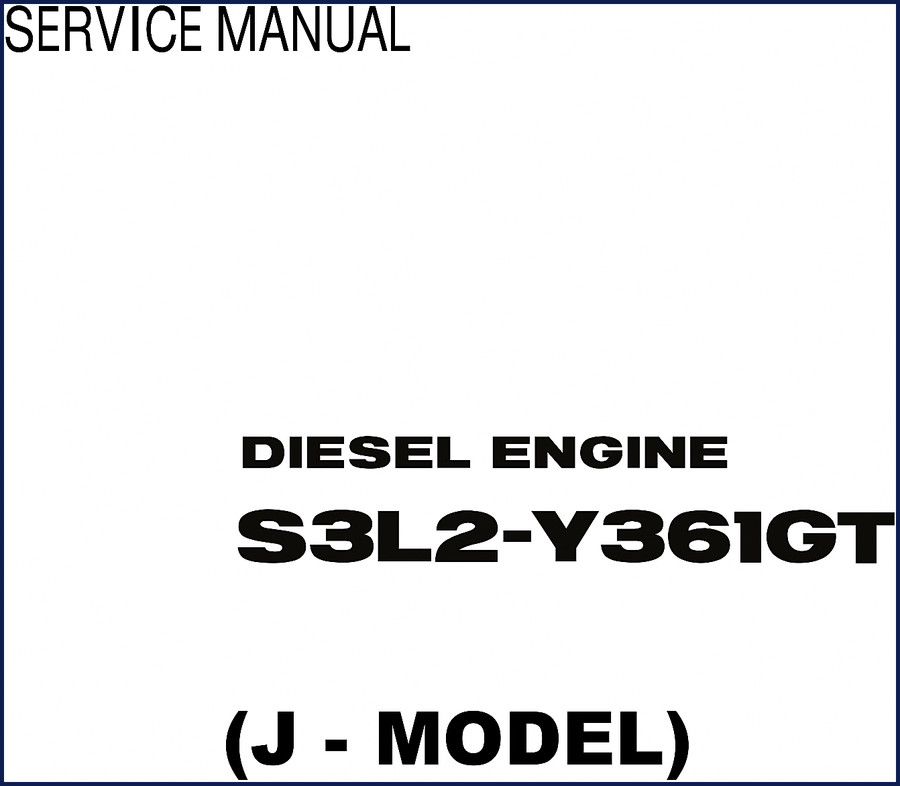

If you are working on a Mitsubishi S3L2-Y361GT Service Manual diesel engine and you don’t have this factory service manual on your bench, you are guessing. I don’t guess. I’ve been turning wrenches for 28 years, and I can tell you the difference between a job that goes smooth and one that turns into a parts cannon is having the actual OEM specs. This manual is 191 pages of the factory procedures, torque values, and safety cautions that Mitsubishi engineers wrote. Not a third-party reprint. Not a PDF scraped from some forum. This is the real thing.
Safety Cautions That Will Save Your Bench Time
Before you touch a single wrench, the manual opens with a 12-page section on safety. Fire and explosion risks? It tells you exactly when to keep flames away from the fuel system. Rotating parts? Lockout and tagout is spelled out for the cylinder block assembly. It even covers what to do if you smell exhaust fumes – ventilate the area. I have seen guys skip the part about not opening the radiator cap hot. That’s a trip to the ER. The manual makes you read it. This isn’t a suggestion.
System Flow Diagrams: Fuel, Lubrication, Cooling, Inlet/Exhaust
Chapter 1 gives you four system flow diagrams that map out exactly how your fuel gets from the tank to the injection pump, how oil circulates through the engine, how coolant moves, and how the intake and exhaust paths work. If you are chasing a no-start or an overheating issue, these diagrams cut the diagnostic time in half. The fuel system outline alone is worth the price of the manual. It shows the high-pressure injection lines and return lines – things you need to know before cracking open a fitting. For background on diesel principles, the Automotive Industry Overview can fill in theory, but the manual is your step-by-step.
Service Data and Torque Tables – Chapter 2
Chapter 2 is where the real gold lives. Maintenance service data breaks down specs for engine general, basic engine, fuel system, lubrication, cooling, inlet/exhaust, and electrical system. Then it drops the tightening torque table: everything from the cylinder head bolts to the union nuts on the injector lines. If you need to know the wet torque for a connecting rod bolt, it’s there. Standard bolt torque for metric threads is listed separately – no guessing which grade. I’ve caught three stripped threads this month because guys used dry torque on a wet fastener. The manual marks every wet torque with [Wet] right after the value. Use it.
Overhaul Instructions and Compression Testing
Chapter 4 tells you when to overhaul and how to test compression pressure. It gives you the procedure and the limits. If your engine is blowing smoke or losing power, you go here first. It references the special tools in Chapter 3 – you’ll need a compression gauge and adapters. Don’t skip the tool list. I’ve wasted a Monday afternoon because I didn’t have the right socket for a deep cylinder head bolt. The manual lists both general tools and special tools. Get them before you start.
Cylinder Head and Valve Mechanism Disassembly
Chapter 5 walks you through taking off the rocker shaft assembly, cylinder heads, valves, and associated parts. It includes inspection steps right inside the exploded view boxes. The manual shows the order of disassembly and reassembly. Pay attention to the index numbers – they tell you the sequence. If you put the rocker shaft on before you set the valve lash, you’ll be pulling it off again. The manual also specifies where to apply engine oil during assembly. That’s the difference between a head gasket that lasts and one that fails in 500 hours.
Electrical System Specs for the S3L2-Y361GT
The electrical section in Chapter 2 covers starter motor, alternator, glow plugs, and wiring. If you are diagnosing a no-crank or a charging issue, the factory amperage and voltage values are listed. The manual also cautions about preventing electrical wires from short-circuiting – a common cause of fires on equipment. Do yourself a favor and check the wiring diagrams against the actual harness. If you need to understand how a manual transmission interfaces with the engine harness, the Manual Transmission page is separate, but the engine side is all here.
- Does this manual include torque specs for all fasteners?
- Yes, Chapter 2 has a full tightening torque table covering basic engine, fuel, lubrication, cooling, inlet/exhaust, and electrical systems, plus standard bolt and nut torques.
- Can I use this manual for the S3L2 engine without the Y361GT variant?
- This manual is specifically for the S3L2-Y361GT model. The Y361GT variant has unique fuel system components and electrical configurations. Using it for other S3L2 variants may lead to incorrect torques or procedures. If you have a different variant, check the serial number and consult the Parts Catalogue referenced on page 3 of the manual. I’ve seen too many guys strip head bolts because they grabbed a generic manual. Don’t be that guy.
