Mitsubishi V5A51 2000 Service Manual

If you’re pulling a V5A51 transmission apart without the factory torque specs, you’re asking for a comeback. I’ve seen guys split a valve body case because they grabbed a generic torque chart off the internet. That bolt pattern is specific. The V5A51 uses a 10-bolt pan with a sequence you won’t find in a Chilton. This Mitsubishi V5A51 2000 Service Manual gives you the exact numbers from the Mar. 2000 release – 110 pages of nothing but factory data. No fluff, no reprints. Every spec was signed off by Mitsubishi engineers. You want to rebuild this transmission right? Start here.

Inside the V5A51 2000 Service Manual: 110 Pages of Factory Data

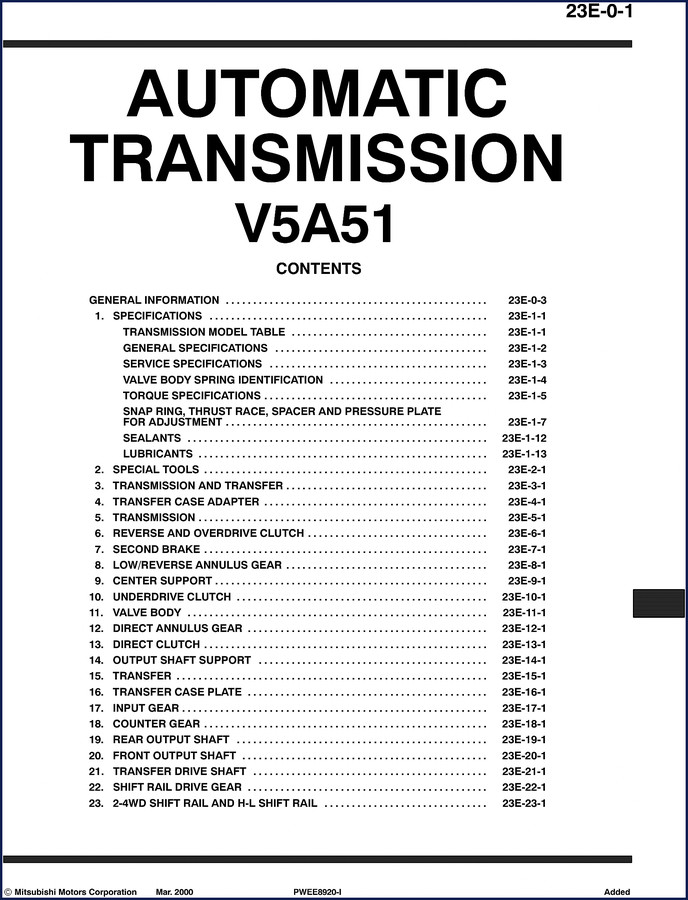

Divided into 23 sub-sections following the factory indexing system (23E-1-1 through 23E-23-1), this manual walks you through every component of the V5A51 automatic transmission. You get the transmission model table, general specifications, service specs, valve body spring identification, torque specs, snap ring and thrust race adjustment data, sealants, lubricants, and a dedicated special tools list. Sections 3 through 23 cover the mechanical disassembly and assembly from the transmission and transfer all the way to the 2-4WD shift rail and H-L shift rail. That’s the whole driveline path – no skipped steps.

Torque Specifications – The Numbers That Matter

You want a number? Page 23E-1-5 contains the full torque specifications table for the V5A51. Every fastener – valve body bolts, pump bolts, transfer case adapter, bellhousing – all in ft-lbs. Not a generic range, but the exact value Mitsubishi stamped in the factory. I’ve torqued enough transmissions to know that 8 ft-lbs on a valve body bolt isn’t the same as 10. Strip one of those M6 threads inside the case and you’re buying a new transmission. This manual prevents that. Period.

Valve Body Spring Identification – Don’t Guess the Tension

Page 23E-1-3 lists the valve body spring identification chart. Aftermarket manuals often give you a single spring rate for all positions. Wrong. The V5A51 uses different springs for the shift valves, lock-up control, and accumulator. The chart tells you the free length, outer diameter, and number of coils. Match them. If you’re doing a valve body rebuild without this page, you’re gambling with line pressure. Not smart.

Second Brake and Clutch Stack – Critical Clearances

Section 7 covers the Second Brake – one of the most common failure points on this transmission. The manual gives you the exact clearance spec for the brake band and the clutch pack. You also get the snap ring thickness chart on page 23E-1-7 for adjustment. If you set the second brake clearance too tight, you’ll burn it up in 500 miles. Too loose and you lose reverse. The factory procedure includes the tool numbers – not a generic substitute. Use the J-whatever special tool they call out, or don’t bother.

OEM vs Aftermarket: Why This Manual Wins

I’ve used aftermarket PDFs that claim to be for the V5A51 but show a diagram for a different valve body. That’ll cost you a day of backtracking. This manual is a direct scan of the Mitsubishi factory publication – PWE E8920-1 Added. The indexing follows the 23E prefix from the actual parts catalog. It’s the same manual the dealer techs used. No third-party rewrites. No generic torque values. You get the exact sealant part numbers (Mitsubishi Genuine parts, not Permatex equivalents) and the lubricant specifications. If you care about getting it right, this is it.

Who Needs This Manual?

DIY guys tackling a V5A51 rebuild in the home garage – this manual is for you. Professional shops that don’t want to waste billable hours chasing bad specs – this manual is for you. If you own a Mitsubishi Montero, Dodge Raider, or any vehicle with the V5A51, having the factory service manual on your tablet or printed out saves you from buying wrong parts. Use it during the teardown, not after you’ve already reassembled something backwards.

Does this manual cover the transfer case?

Yes. Sections 15 through 23 cover the transfer assembly, transfer case plate, input gear, countershaft gear, front and rear output shafts, transfer drive shaft, shift rail drive gear, and the 2-4WD / H-L shift rails. It’s all in there.

What torque specs are provided?

The torque specifications table on page 23E-1-5 lists values for every major fastener. That includes the valve body bolts, pump bolts, transfer case adapter, bellhousing, and internal clutch pack retention. All in ft-lbs with no ranges – one number per fastener.

Is this a reprint or a generic manual?

It’s a direct scan of the original Mitsubishi Motors Corporation publication from March 2000. No reprints, no third-party edits. You get the factory part numbers, special tools list, and diagrams as the dealer had them.

Can I use this for a Mitsubishi 3000GT VR4 transmission?

No. The 3000GT VR4 uses a different transmission (Getrag or AWD variants). This manual is strictly for the V5A51. For the 3000GT/Stealth, look at the Mitsubishi Dodge Stealth R/T Turbo 3000GT VR4 GTO Service Manual.
