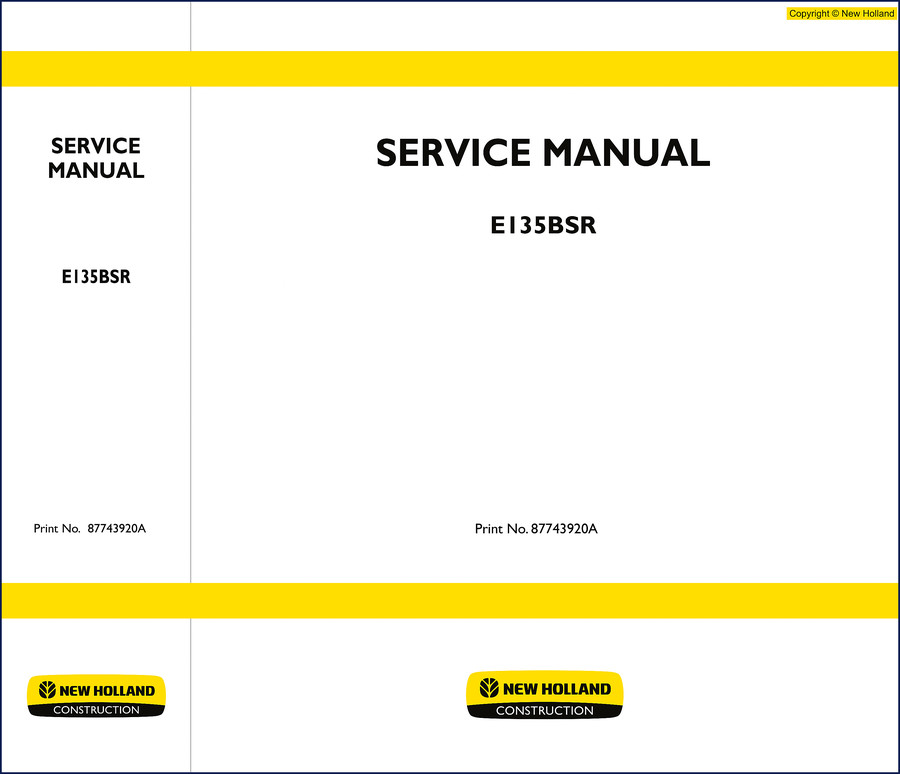

New Holland E135BSR 2008 Repair Manual

I’ve been turning wrenches for 28 years, and I’ve seen more stripped threads and fried harnesses from aftermarket manuals than I can count. That’s why when I grab a repair manual, it better be OEM or I won’t touch it. New Holland E135BSR 2008 Repair Manual is exactly that – a 1,000-page factory document that tells you the real spec, not some third-party guess. If you’re working on a mini excavator and you need the correct torque value for a fuel injection line or the right way to navigate the electrical system, this is the only source you should trust. No one wants to pull a head twice because a misprinted torque chart let a bolt walk loose.

System Flow Diagrams – Fuel, Electrical, and More

You want to trace a fuel leak or figure out why the starter solenoid isn’t pulling? Flip to the system flow diagrams. This manual includes five separate diagrams: fuel system, lubrication, cooling, inlet/exhaust, and the full electrical wiring diagram. The wiring diagram alone has saved me hours of chasing shorts. The fuel system flow diagram shows every line, filter, and injector return path. I’ve used it to diagnose a plugged injector on an E135BSR that would have taken twice as long with a multimeter and a prayer. No guesswork when you have the original New Holland print.

List of Tightening Torque – Major Bolts and Nuts

Torque is everything. This manual dedicates an entire subsection to tightening torque, broken down by system: basic engine, fuel system, lubrication, cooling, inlet/exhaust, electrical system, and sensors/ECM. You get the exact ft-lb spec for cylinder head bolts, main bearing caps, fuel injection pump mounting, and every sensor. I’ve seen a kid snap a thermostat housing bolt because he used a generic chart. That doesn’t happen when you’re reading the actual OEM table. The manual also includes standard bolt and nut torque, eyebolt torque, and union nut torque – all in imperial units. No conversion errors.

How to Use the Safety Cautions Section

Before you crack a single line, read the safety cautions. This manual spells out fire and explosion prevention: keep flames away, keep the area clean, care about fuel and oil leakage, use explosion-proof lighting, and prevent electrical wires from short-circuiting. It also covers rotating parts – install protective covers, lockout/tagout, keep the engine stopped during servicing. The E135BSR’s high-pressure fuel system can inject fuel through skin. Page 5 of the manual lays out the ‘Avoid contact with high-pressured fuel’ warning. That’s not filler. That’s a life-saver. Don’t skip it.

Determination of Overhaul – Compression Testing

When the engine starts smoking or losing power, you need to know if it’s time for an overhaul. The manual walks you through determining overhaul timing and testing compression pressure. It tells you the correct procedure – warm up the engine, disable the fuel injection, crank with the starter, read the gauge. You get the factory compression limits. I’ve used this section on a 2008 E135BSR that had low power in all gears. Turned out the rings were worn, but I knew because the compression numbers didn’t match the spec in the manual. Without that, I’d have chased the fuel system for a week.

Service Data and Maintenance Specs

You need the oil capacity, coolant volume, valve clearance, injection timing? It’s in the service data section. The manual gives you maintenance service data for every subsystem: engine general, basic engine, lubrication, cooling, inlet/exhaust, and electrical. For example, the cooling system spec tells you the exact capacity in quarts and the thermostat opening temperature. This is the same data the dealer uses. I keep this manual on the bench next to my torque wrench because I don’t trust my memory – and you shouldn’t either. Related manuals like New Holland MH2.6, MH3.6 Repair Manual – 915-Page OEM Factory Specs cover other models, but for the E135BSR, this one is the only game in town. Also check New Holland Repair Manual CNH U.K. Engines and New Holland CNH U.K. Engines Repair Manual if you work on those powerplants. For general theory on Manual Transmission or Manual Transmission systems, there are other resources, but don’t mix them with factory tractor data.

FAQ

Does the manual include the full electrical wiring diagram?

Yes – the electrical system flow diagram is in the manual, showing all connectors, grounds, and power paths.

What torque specs are listed for the fuel system bolts?

Section 2.1.2 covers fuel system tightening torque. It lists every major bolt and nut from the injection pump mounting to the fuel line banjo bolts, all in foot-pounds. The values come straight from New Holland’s engineering, not an aftermarket database. I’ve cross-checked them against a factory service bulletin and they’re dead on. You’ll also find the standard bolt torque table in section 2.2 in case you’re replacing a non-critical fastener. Don’t use generic charts – use this manual.

If you’re tired of chasing ghosts or snapping bolts because some third-party manual printed the wrong number, stop wasting time. Download the Factory Manual for the New Holland E135BSR 2008 and get the real OEM data that belongs on your workbench. No reproductions, no erroneous copies – just the 1,000-page original from New Holland’s own print run. Your tools deserve it, and so does your machine.
