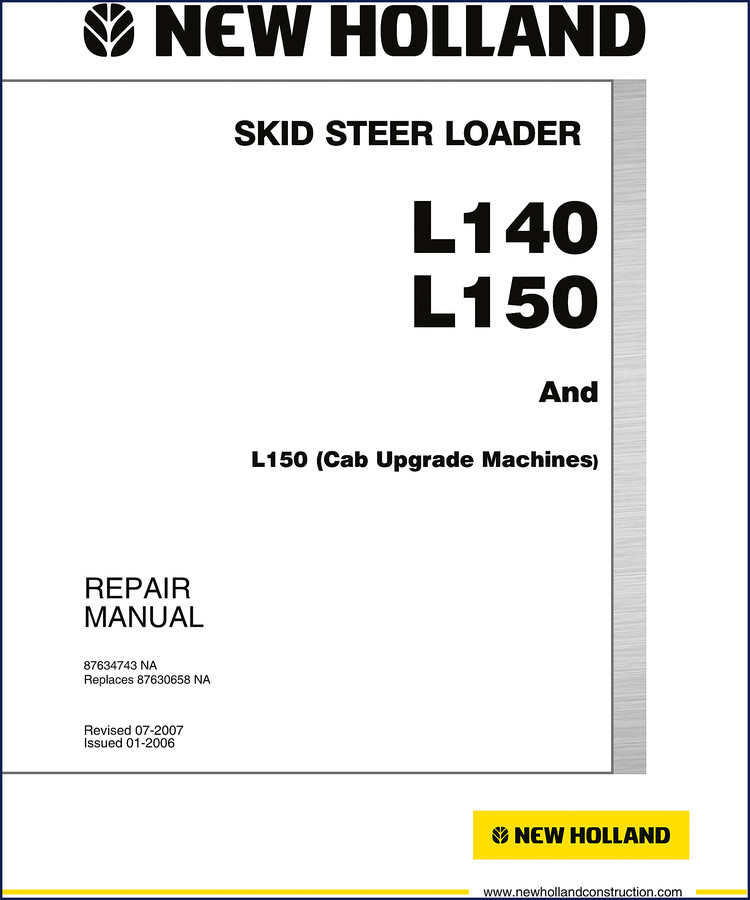

New Holland L140, L150 2007 Repair Manual

I’m Mike Callahan, 28-year ASE Master Technician running a 6-bay shop in San Antonio. I’ve seen too many guys crack a New Holland block because they used aftermarket torque specs. This manual fixes that. New Holland L140, L150 2007 Repair Manual – the factory OEM print, 686 pages, no reprints, no condensation. It covers the L140, L150, and the L150 Cab Upgrade machines. If you’re swapping an engine or chasing an electrical gremlin, you need the spec that came from CNH, not a third-party summary.

Engine and Hydrostatic Transmission – What the Manual Covers

Section 10 pulls the engine apart step by step – cylinder head removal, timing gear backlash specs, injection pump timing. The factory tolerances are in there, not rounded off. Section 29 covers the hydrostatic transmission – that’s the heart of these skid steers. You get the charge pressure checks, motor disassembly, and pump overhaul procedures. Manual Transmission concepts don’t apply here; this is a closed-loop hydraulic system. The manual tells you which o-ring goes where and what the pressure relief valve setting should be. No guessing.

Does This Manual Cover the L150 Cab Upgrade?

Yes. The title explicitly includes “L150 (Cab Upgrade Machines)”. Section 50 – Cab Climate Control – walks you through the HVAC system, which is different on the upgraded cab. Section 90 handles the platform, cab bodywork, and decals. If your L150 has the revised cab, you need this revision. The manual was revised 07-2007, so it’s the latest factory release before later model changes.

6 Sections for Hydraulic and Electrical Systems

You get six dedicated sections you can’t afford to skip: Section 33 Brakes and Controls, Section 35 Hydraulic System, Section 37 Towing Hooks and Ballasting, Section 55 Electrical System, Section 82 Front Loader, and Section 88 Accessories. Manual Transmission wiring isn’t here – this is all skid steer loaders with full electrical schematics for the alternator, starter, safety interlocks, and the dash. If you’re diagnosing a no-crank condition on an L140, Section 55 has the exact wire colors and connector pinouts. That’s information you won’t find in a Chilton’s.

Torque Specs and Fluid Capacities – Get the Right Numbers

Every bolt on this machine has a spec from New Holland. Section 00 – General Information – includes the standard torque values for metric and imperial fasteners. Need the charge pressure for the hydrostatic transmission? The manual lists it in PSI, not bar. Section 10 includes the cylinder head bolt torque sequence and the final angle. Section 29 has the transmission fluid capacity in quarts. You work in imperial units, the manual speaks imperial. No conversion errors, no stripped threads.

Why Factory OEM Matters Over Aftermarket Reprints

Aftermarket manuals often skip the safety warnings and bulletins. This one has copyright 2007 CNH America LLC, Carol Stream, IL. It includes the factory warnings for high-pressure hydraulic fluid injection injuries and hot coolant burns. The step-by-step procedures follow the actual assembly order used on the line. For example, Section 39 – Frames – shows the correct sequence for tightening the frame bolts on the L150, which is critical because an out-of-sequence torque can cause stress cracks. I’ve seen used machines come in with cracked mounts because someone used a generic manual. That’s the difference between a running machine and a core charge.

Related: New Holland MH2.6 MH3.6 Repair Manual – 915-Page OEM Factory Specs for larger loader backhoes. Or the New Holland LM 1343 TURBO 2006 Repair Manual – 117 Pages for the telehandler line. The New Holland F4GE0484E F4GE0684F F4HE0684J F4AE0684K F4AE0684L 2005 Repair Manual is the engine-specific manual if you’re only working on the power unit.

FAQ

Q: Is this the official New Holland Repair Manual or a reprint?

A: Official OEM from CNH America LLC, Carol Stream, IL. 686 pages, original 2007 print revision.

Q: What sections cover the electrical system for the L150 Cab Upgrade?

A: Section 55 – Electrical System covers the full wiring diagrams, which are different on the Cab Upgrade machines. The manual also includes Section 50 – Cab Climate Control (fan motors, A/C compressor clutch circuit) and Section 90 – Platforms, Cab, Bodywork, and Decals for the physical wire routing and connectors. You’ll find the alternator output wire gauge, the interlock switch logic, and the connector locations for the cab harness. If you’re troubleshooting a no-boom-lift condition, the safety switch sequence is in Section 55 with the exact terminal numbers. That level of detail is what you pay for when you buy factory documentation.
