New Holland T6030, T6050, T6070, T6080 2008 Parts Catalog – Factory Specs You Can Trust

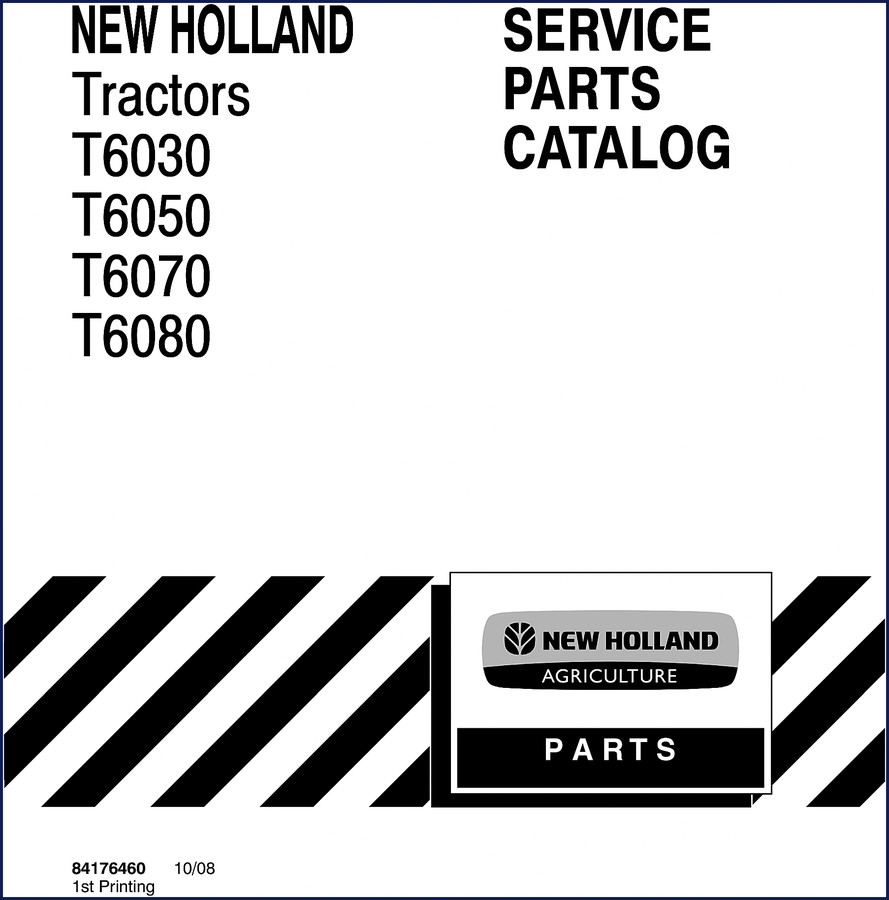

If you’re pulling a transmission or swapping an engine on a New Holland T6030, T6050, T6070, or T6080, you need the exact part number. Not a cross-reference, not a “fits like” guess. I’ve seen guys order a piston ring set off an aftermarket list and end up with a .020 oversize that didn’t seal. This 2008 Parts Catalog is what New Holland factory guys use. It’s 1,572 pages of exploded views, torque specs for fasteners, and the exact OEM part numbers that match the tractor’s build date. No third-party document. New Holland T6010-T6070 2010 Technical Manual – Section: Enganche Control Del El

7 Major Systems Covered: Engine to Decals

Look at the table of contents. Sec. 01 ENGINE covers crankcase, cylinder head, rocker shaft, injection pump, turbocharger, oil pump, water pump – the whole breathing system. Sec. 03 TRANSMISSION gives you every gear, shaft, and bearing. Sec. 06 ELECTRICAL includes wiring harnesses, sensors, and control modules. Sec. 07 HYDRAULICS lists pumps, valves, and lines. Sec. 10 DRIVER’S COMPARTMENT has cab parts and controls. Plus Sec. 13 DECALS – because you’ll need the correct decal kit for a cab roof replacement. The subsections go deep: 0.06.3 CYLINDER HEAD COVERS, 0.08.0 CRANKSHAFT, 0.14.0 INJECTION PUMP. Every section uses the factory numbering system so you won’t mix up a left-hand tie rod with a right-hand one.

Parts Ordering Accuracy: What the TOC Tells You

This catalog isn’t a service manual – it’s a parts breakdown. You get the illustration plus a parts list with description, quantity, and the New Holland part number. For example, under 0.06.0 CYLINDER HEAD you’ll see the head gasket, bolts, and sealing washers. The hardware that mounts each component is listed right after the service part. If you order the cylinder head as an assembly, the mounting bolts aren’t included unless you specify. That’s how OEM catalogs work. The general information page (page 3) states: “The service part immediately preceding a hardware listing is the part using these particular items for mounting purposes.” Read that sentence twice before you order. Automotive Industry Overview

Real-World Use Case: Finding a Piston for a T6070

You’ve got a T6070 with a scored #3 cylinder. You pull the pan, measure bore – it’s standard. The catalog shows PISTON under 0.08.2 with the OEM number 87345421. You order that exact number, the rings, and the connecting rod bearing from 0.08.1. The manual lists the piston pin, clips, and the ring set as separate line items. No guessing if the aftermarket kit includes the circlips. You get the factory kit. That’s the difference between a job that’s back together in a day and one that sits waiting for the wrong parts to be returned. If you’re working on a T6030 or T6080, the same structure applies – just verify your build date against the catalog’s revision (1st Printing 10/08).

Source Authenticity: OEM vs Aftermarket Documentation

I’ve used aftermarket parts catalogs that show a generic illustration for “cylinder head” with a number that matches nothing on the shelf. This is a genuine New Holland publication, printed by CNH America LLC in Racine, WI. The PDF is a direct scan of the factory parts catalog, not a rekeyed or OCR-corrected copy that shifts part numbers. The original file name – NewHolland_T6030-T6050-T6070-T6080_2008_Parts_Catalog_en-28114006888.pdf – confirms the source. Every page is in English, with left/right orientation defined as facing the direction of travel. That’s a detail aftermarket guys often get wrong. New Holland T6010-T6070 2007 Operators Manual – Factory Specs

Does This Manual Cover Optional Equipment?

Yes. Section 0.0040 OPTIONAL EQUIPMENT and its subsections list cab add-ons, hydraulic kits, PTO upgrades, and axle options. The catalog shows both standard and optional parts in the same exploded views, noted in the description column. If your tractor has a factory loader or a rear remote, the part numbers are here. The decal section (Sec. 13) includes safety decal sets for CE and non-CE models. You’ll also find the DRIVER’S COMPARTMENT sections (10 01 and 10 02) covering different cab configurations – flat deck or deluxe. Always verify your serial number prefix against the manual’s applicability note. Ford New Holland 853 1993 Parts Catalog

FAQ

Can I use this to order parts for a T6050 with a cab?

Yes. The T6050 is explicitly listed in the catalog title and all sections apply.

What’s the difference between Sec. 10 01 and Sec. 10 02 Driver’s Compartment?

Sec. 10 01 covers the standard operator platform and seat assembly; Sec. 10 02 covers deluxe cabs with air conditioning, radio, and additional trim. The catalog includes separate exploded views for each. If you don’t have the exact cab trim level, pull the factory build sheet or measure the existing parts against the illustrations. The front axle and steering column differences are detailed in Sec. 04 FRONT AXLE and Sec. 09 LINKAGE. Always cross‑reference the part number with your tractor’s serial number range printed in the front matter. The manual uses “left” and “right” from the operator’s seat facing forward – that orientation is critical when ordering steering arms and tie‑rod ends. A mismatched left/right on a T6080 will cost you an afternoon of rework.

You’ve got the part number. You’ve got the exploded view. You know exactly what bolts to order and which gasket set fits. This 1,572-page factory catalog takes the part-ordering guesswork out of a 100-hp tractor rebuild. The OEM diagrams are from 2008 – the same year these tractors rolled off the line. Download the Factory Manual and get the right parts the first time. Automotive Industry Overview
