New Holland W50, W60, W70, W80 2005 Workshop Manual

I’ve seen too many backyard mechanics tear into a wheel loader with a generic aftermarket manual and end up with a transmission full of wrong fluid. That mistake costs you a shift pack. New Holland W50, W60, W70, W80 2005 Workshop Manual is what the dealer techs use. It’s 452 pages of factory-specified repair procedures, not some third-party paraphrase. The diesel engine section alone covers complete overhaul with torque sequences and timing specs. The transmission section walks you through pressure tests without special tools. If you skip the safety instructions on page 1, you’re asking for a hydraulic injection injury. Don’t. This manual demands you work safe and work right.

Page 1 has the warnings. Read them.

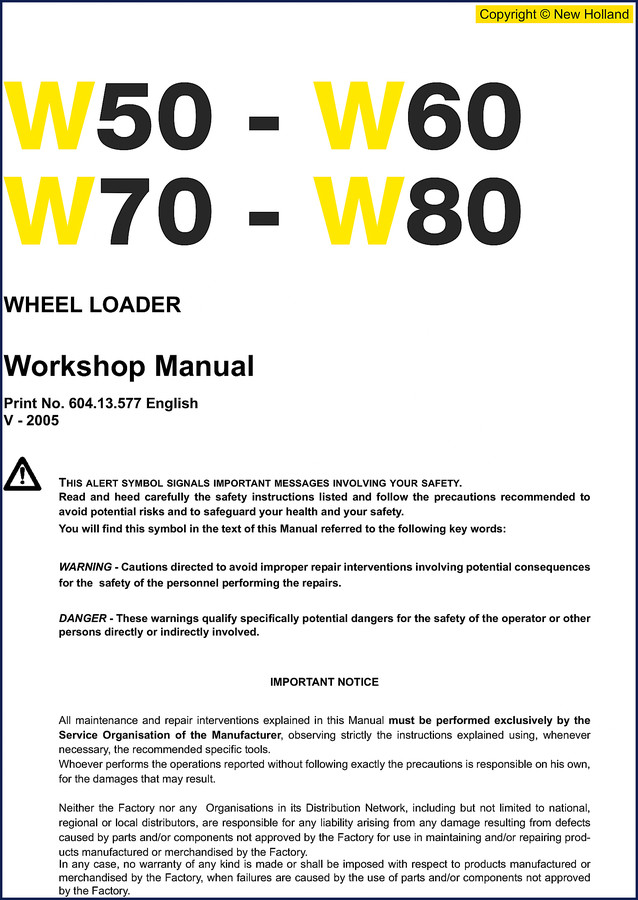

Read the Safety Instructions Before You Start

Page 1 of this manual has the alert symbol and the warnings. DANGER and WARNING are not suggestions. I’ve had apprentices skip this section and then wonder why they lost a finger. The manual states clearly: “Never attempt to clean, lubricate or maintain a machine while it is in motion.” Page 2 reinforces that. Respect the machine, respect the manual. The safety instruction section (Section 0) is not boilerplate – it’s specific to the W50-W80 loader hydraulics and moving parts.

Diesel Engine: What Section 2 Covers for the W50 to W80

The diesel engine section runs from service data to full teardown. You get torque sequences for cylinder head bolts, injection pump timing specs, and clearance measurements. All in Imperial units. No metric conversion games. The manual tells you the exact tool needed for each step – no guessing. If you’re rebuilding the Engine on a W70, you need this section open on the bench. The W50’s smaller engine has different specs – the manual distinguishes each model’s data. For more on manual transmission theory, refer to Manual Transmission on Wikipedia for background on gear ratios.

Transmission and Axles – Common Failure Points

Transmission problems on these loaders often come from low charge pressure or worn clutch packs. Section 3 gives the factory test procedure. The manual walks you through pressure checks without special dealer tools – just a gauge and the specs. Axles and Steering in Sections 4 and 5 cover bearing preload and steering cylinder disassembly. A common mistake: overtightening the kingpin nut. The torque is in the book. Use it. The W80 uses a powershift, but understanding the basics of a Manual Transmission helps when diagnosing shift issues.

Does the Manual Cover the Hydraulic System?

Yes, and it’s not a vague diagram. Section 7 (Hydraulic System) includes pump flow rates, relief valve settings, and cylinder rebuild specs. The loader’s hydraulic circuit is complex – if you bypass the correct sequence, you’ll blow seals. The manual lists required tools for each job. For example, you need a torque wrench capable of 200 ft-lb for the pump mounting bolts. Don’t use a cheap clicker. Get the right tool and the right spec from the factory book.

3 Reasons to Use the Factory Wiring Diagrams

First, the wire colors match the actual harness – no aftermarket guessing. Second, the diagrams show connector pinouts and terminal numbers. Third, the manual includes the electrical system section (Section 8) with troubleshooting flowcharts. Short circuits cause fires. Use the factory schematic to trace ground faults. See the related manual New Holland LM1330 LM1333 2008 OEM Workshop Manual for another loader platform. If you work on larger excavators, check the New Holland E245B, E215B 2007 Workshop Manual – 821 Pages of OEM Factory Specs for similar quality. For a compact model, the New Holland E385B 2007 Workshop Manual | Factory OEM Repair Guide is also available.

Why OEM Specs Beat Aftermarket Copies

I’ve seen aftermarket manuals that omit entire sections – like the brake system bleeding procedure. This New Holland manual has Section 6 with full brake system details, including master cylinder rebuild and caliper torque. You won’t find that in a Chilton. The 2005 publication date means it matches the production year. Never trust a manual that says “covers models 1990-2005” – that’s a lie. This one is specific to the W50, W60, W70, and W80. Every torque spec, fluid capacity, and wire color came from the factory floor. That’s the only way to keep a loader running without comebacks.

Can I use this manual if I’m not a professional mechanic?

Yes. Read the safety section first and follow each step exactly.

Does the manual include torque values for all major fasteners?

All torque values are factory-sourced and listed in Imperial units. The manual dedicates a full section (Service Data, Section 1) to standard torque charts plus specific values for engine, transmission, axle, and hydraulic components. For example, the cylinder head bolts on the diesel engine have a specific sequence and angle turn. The manual warns against reusing torque-to-yield bolts. You get the exact foot-pounds and inch-pounds needed. Never rely on a generic chart – use this book’s numbers. The manual also includes fluid capacities and pressures. That’s the difference between a proper rebuild and a comeback.

If you want to keep your New Holland loader out of the dealer shop and running straight, Download the Factory Manual. It’s the only source you can trust for rebuilds, diagnostics, and safety.
