O&K L3000 Parts Catalog

If you’re wrenching on an O&K L3000 and need the right part number, you don’t have time to guess. I’ve seen parts counter guys hand out the wrong bearing because someone ordered off a third-party list. That’s why this O&K L3000 Parts Catalog exists. Factory printed, 236 pages, and it gives you the exact part number and name for every component on the L3000. No cross-referencing. No “close enough.” You get the OEM number, and you get it right the first time.

Let me walk you through what’s inside and why this manual belongs on your bench, not in a drawer.

236 Pages of Factory Part Numbers

That’s not filler. Every page covers a specific assembly – from the hydraulic tank to the transmission to the front axle. The manual uses a group numbering system. Take group 32-05-01: the first two digits (32) mean you’re in the hydraulic system. 05 is the hydraulic tank assembly. 01 points to the hydraulic filter. You don’t flip through every page hoping to spot a picture. The index in the front references the exact page where your system is illustrated. Page 3 of the manual explains this grouping, and page 4 gives ordering instructions. You need the machine serial number – every time. Without it, you’re rolling dice.

Use the Group Numbering System to Find Parts Fast

The manual breaks the L3000 into systems. Engine, transmission, axles, brakes, electrical – all assigned two-digit group numbers. Inside each system, two more digits narrow the assembly, then two more digits identify the component. Example: 05-01 for hydraulic filter. That structure lets you jump straight to the right illustration. I’ve had to train guys not to skip reading the group number index. It’s there for a reason. If you want to order a seal for the lift cylinder, you find “Hydraulic System – Cylinders – Lift Cylinder” in the index, turn to that page, and pick item number 14. Then you write down the part number next to it. Done.

What Information Must Accompany Every Parts Order?

Page 4 spells it out in bold: machine model number, machine serial number, part number of the desired part, part name, quantity, and your shipping address. Miss the serial number and you might get a part that doesn’t fit a later production L3000. O&K Trojan Industries updated components over the years without changing the model name. The serial number tells the factory which revision you have. I’ve seen guys order a brake caliper rebuild kit from a generic catalog and end up with wrong pistons. That doesn’t happen when you use this Parts Catalog and order by the OEM number.

OEM Documentation: Why Aftermarket Reprints Fail

I don’t trust aftermarket parts lists. They often copy from the wrong revision, swap part numbers, or drop superseded information. This manual is an original O&K Trojan print. It was current at the time of printing, and while O&K reserves the right to update without notice, the base information – group numbers, illustrations, and part names – is factory verified. When you order from the numbers in this catalog, you’re ordering from the source. If you’ve ever had a three-week delay because the part didn’t match, you know why this matters. Stick with OEM docs.

Does This Manual Cover Your L3000 Model?

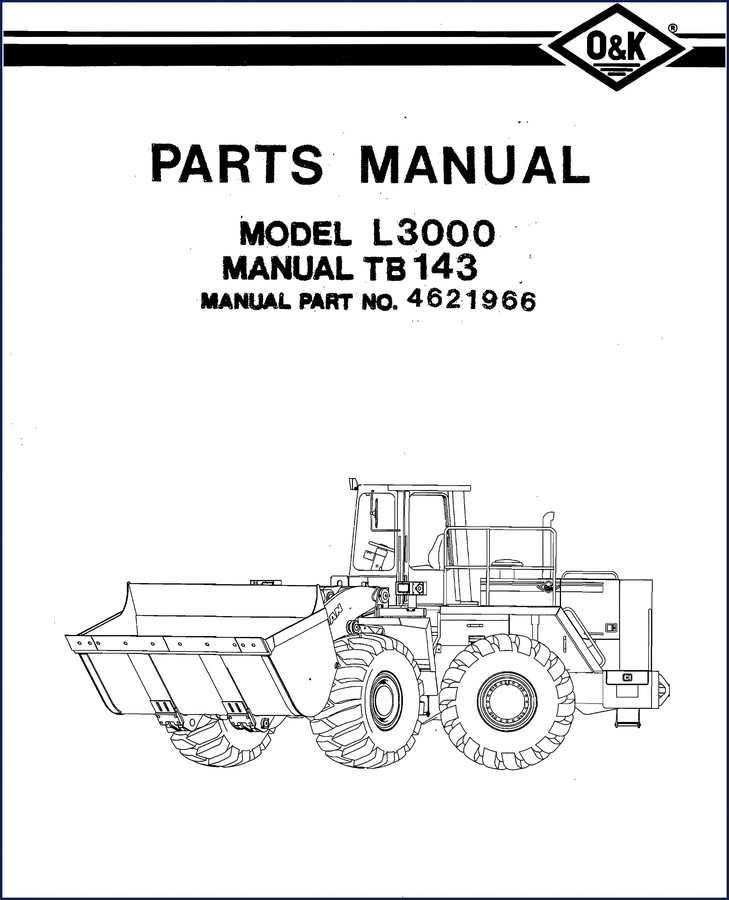

This Parts Catalog is titled “MODEL L3000 / MANUAL TB 143 / MANUAL PART NO. 4621966.” It covers the L3000 loader. If your machine serial number falls within the range intended for this manual, you’re good. The product page at O&K L3000 Parts Catalog will show compatibility details. For other O&K models, check O&K L45, 4500Z 1990 Parts Catalog – Parts Manual TB126 or O&K L2500 Parts Manual TB141. The Automotive Industry Overview on Wikipedia gives context on loader manufacturing, but for parts ordering you stick to the factory manual. The Automotive Industry Overview page is background reading, not a substitute for spec data.

FAQ

Is this a service manual or a parts catalog?

Parts catalog. It lists part numbers, names, and illustrations. No repair procedures or torque specs. You need a separate service manual for that.

How do I find a part for my L3000 if I don’t know the group number?

Use the index. It’s organized alphabetically by system name – engine, transmission, hydraulics – and each system lists the relevant group numbers. Turn to the page referenced, find your component in the illustration, and note the item number. The corresponding part number is in the table next to the illustration. This manual is designed to be used even if you haven’t memorized the group system. Index first, then illustration. Do not start flipping randomly; the index is there to save you time. I’ve had apprentices waste an hour looking for a brake line, then find it in two minutes once they used the index. The group number index is on page 3, and the ordering instructions on page 4 are critical for getting the right part. If you skip reading those pages, you’re working blind. That’s the honest truth – use the system and you’ll get the part number in under a minute.

What if my machine serial number is not listed?

Contact O&K Trojan with your serial number. This manual covers a range; if your serial is outside it, you need the manual that matches. Do not guess.

Can I use this manual for ordering replacements?

Yes. That’s its purpose. Provide the part number and name exactly as shown, along with your machine serial number, and you’ll get the right part.

That’s the hard truth about parts ordering: one wrong digit and you’ve got a drawer full of useless steel. This Parts Catalog gives you the factory data. Don’t make your parts guy guess. Download the Factory Manual.

O&K L3000 Parts Catalog

I’ve lost count how many times a guy orders a hydraulic line for a loader, gets the box open, and it’s the wrong length. Wasted a week waiting. That’s what happens when you use some third-party parts list that doesn’t tie the part number to the machine serial number. This O&K L3000 Parts Catalog – 236 pages – is the factory document that tells you exactly which part goes on which machine, down to the serial number break. No guesswork. No phone tag with a dealer who’s reading the same manual you should have bought first. O&K L3000 Parts Catalog – Factory OEM Manual (236 Pages)

Why a Factory Parts Catalog Beats Aftermarket Lists

Aftermarket parts catalogs copy from copies. By the time you get the PDF, the part numbers have been OCR’d wrong, illustrations are pixelated, and group numbers are missing. The O&K L3000 Parts Catalog is an OEM original print from O&K Trojan Industries. It uses their group numbering system – first two digits are the machine area, next two are the assembly, last two are the specific component. Example: Group 32-05-01 means Hydraulic System, Hydraulic Tank, Hydraulic Filter. That system doesn’t exist in any aftermarket hack job. You want to order a filter element? You need that group number to cross-reference the illustration. Without it, you’re guessing. And I don’t like guessing on a loader that lifts 3 tons.

Group Number System: How to Navigate 236 Pages

The manual is split into system groups. The index in the front lists each group – drivetrain, hydraulic, steering, axle, engine – and the page where that group starts. Each group has an exploded-view illustration with numbered callouts. Below the illustration is a parts table with item number, part number, part name, and quantity per assembly. The group numbers are not random; they follow a logical sequence that mirrors the physical layout of the machine. Land on page 73 and you’ll see the brake group. The callout numbers are in alphabetical order? No. They follow the assembly sequence. That’s why the index matters. Use it.

Serial Number Requirements: What You Must Provide

O&K updated components over the production run. A hydraulic pump on serial number 5000 might be different from serial number 6000. The manual has a field on page 2 for you to write in your machine serial number, engine model, transmission part number, front axle serial, and rear axle serial. Every time you order a part, you need that serial number. If you don’t, the dealer will send you the wrong part. I’ve seen shops tie up a loader for two weeks because they ordered a steering cylinder without checking the serial. The manual explicitly states: “To assure the receipt of the proper part, it is essential that the following information be included with your parts order: MACHINE MODEL NUMBER, MACHINE SERIAL NUMBER, PART NUMBER OF THE DESIRED PART, PART NAME, QUANTITY, SHIPPING ADDRESS.” That quote is from page 4. Read it.

Ordering Parts the Right Way: Avoiding Delays

The manual includes a note that any part not authorized by O&K Trojan Industries will void the original dependability. That means aftermarket hydraulic filters that don’t match the flow rating? Not covered. This catalog lists only OEM part numbers. When you call a dealer, you read them the part number out of this manual – not some scribbled note from a forum post. The catalog also has a section on abbreviations used in the parts lists (page 4 lists them). I’ve had techs order a “SEAL KIT” and get a box of o-rings that were the wrong durometer because they didn’t read the abbreviation for the specific kit. Don’t be that guy.

What This Manual Covers: Loader Systems

This is a parts catalog for the O&K L3000 loader, model TB 143, manual part no. 4621966. It covers every bolt, seal, hose, cylinder, valve, filter, bracket, and fastener on the machine. The group numbers range from engine mounts to hydraulic control valves. The manual does not include repair procedures – that’s a service manual. Parts Catalogs are for ordering. If you need torque specs for the wheel lug nuts, you need the service manual. But if you need a part number for the steering column U-joint, this catalog has it. Also check the O&K L45, 4500Z 1990 Parts Catalog – Parts Manual TB126 and O&K L2500 Parts Catalog – Factory Specs for Part Ordering for other models in the line.

FAQ: Common Questions About This Catalog

Does this manual include torque specifications?

No. This is a parts catalog – it lists parts with illustrations and part numbers. Torque values are in the service manual.

How do I know which group number corresponds to the front axle?

Use the index in the front of the manual. Look up “Axle, Front” or group numbers starting with 01. The group numbering system is explained on page 3 and 4 of the catalog. If you don’t have the index, flip to the approximate page range for chassis components – usually groups 01-10.

Can I use this catalog to order parts for an L3000 built after 1995?

The manual’s serial number field on page 2 is blank – you must write in your machine serial. O&K updated parts over production; the catalog covers all serials up to the print date. If your machine serial is higher than the last entry, contact O&K with the serial. The manual notes that contents are subject to change at the company’s discretion due to continuous improvement.

Is this a digital download or a printed book?

Digital download in PDF format. You can print the pages you need. The file is the original factory scan – not re-keyed or edited. Automotive Industry Overview and Automotive Industry Overview are not relevant here – focus on the manual.

Bottom line: if you’re working on an O&K L3000 and you need to order parts, this catalog is the only source you should trust. I’ve been turning wrenches for 28 years and I’ve seen machines sit dead because someone ordered a part from a generic list that didn’t match the serial. Don’t be that shop. Download the Factory Manual now and get the right part the first time.
