Sandvik QA441 2015 Operators Manual – Factory Specs for Heavy Screens

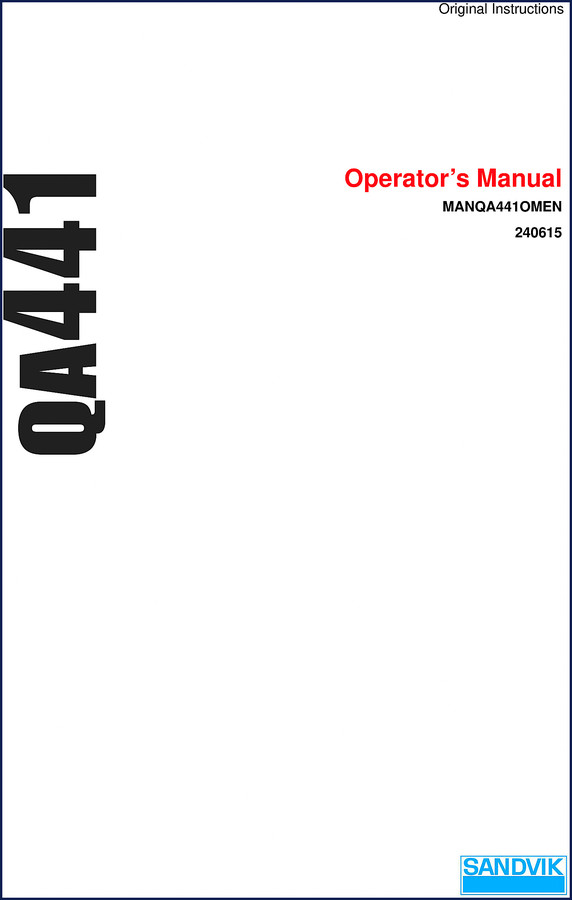

If you’ve ever had a screen plant throw a belt because you trusted a generic torque chart from the internet, you know the feeling. Loose bolts, misaligned conveyors, and a machine that costs you a day of production. I’ve seen crushing plants come in with aftermarket manuals that skip the lockout steps, use the wrong wire gauge references, and miss half the safety decals. That’s why when you need the real Sandvik QA441 2015 Operators Manual, you get the 254-page factory document – the one that Sandvik engineers wrote for the guys who actually run the equipment. This isn’t a third-party scan; it’s the original OEM print, and it shows.

Safety Principles – More Than Just Decals

Chapter 1 of this manual isn’t a feel-good lecture. It breaks down hazard signal words, color-coded safety signs, and symbols for prohibited actions – all on page 8. Need to know the difference between a warning and a danger triangle? It’s laid out with the exact icons you’ll find on your machine. The manual also covers battery disposal (section 1.3.2), machine disposal procedures, and what PPE is required for each job. Section 1.4 lists the personal protective equipment you need before you even turn the key. This is the kind of detail that keeps you from having a hydraulic line blow in your face because you skipped a lockout step. Page 16 lists the full PPE requirements.

Transport & Technical Data: Getting the Machine on the Truck

Section 2 is where the manual earns its keep. The Sandvik QA441 2015 Operators Manual goes through machine preparation for transport step by step: check bolts and fixings, remove tools from the transport area, verify pre-start checks from the engine manufacturer’s manual, and lock out the machine before you touch anything. Subsection 2.1.2 covers moving the machine on or off the transport vehicle – including the pre-set tracking speed and the sequence for removing temporary sealing, straps, and chains. If you’ve ever seen a operator try to track a screen off a trailer with the safety pins still in, you’ll appreciate having this written out in black and white.

Machine Preparation for Transport – Step-by-Step

The manual doesn’t assume you know the order. It gives you a numbered list: make sure all bolts and fixings are tight, safety devices operate correctly, remove tools, keep people away, check oil levels, and perform lockout/tagout per section 4.7. Each step has a check mark. You can literally work through this list before you move the machine. The vibratory grid fold-down procedure (section 2.1.4) tells you to lock out, remove bolts, remove nuts with washers, then start the machine to move the lever. It’s that specific. No guessing, no shortcuts.

Lockout/Tagout Procedures: Why the Manual Wins

Aftermarket manuals love to abbreviate lockout/tagout. This one devotes section 1.8.1 to “Securing equipment before performing maintenance” and references the full procedure in 4.7. The machine preparation checklist on page 73 (from the TOC) tells you to remove a tag per 4.7 before starting. The emergency stop reset procedure is in section 1.14.2. I’ve had to override an ESX control unit on a Sandvik before – the factory manual had the reset sequence that the aftermarket junk missed. That’s how you avoid blowing a hydraulic hose.

Hazardous Materials and PPE Requirements

Section 1.3 covers hazardous materials, battery disposal, and machine disposal. Section 1.9 goes through specific hazards: electrical energy, automotive batteries, gas/dust/steam, welding, hydraulic equipment, hazardous substances. If you’re welding near the frame, you need to know the naked flame warning – it’s right there in 1.9.4. The manual also gives measured noise levels (1.12) and vibration levels (1.10). That’s the kind of data OSHA wants and that you can’t fake.

FAQ

Does this manual cover the vibrating grid removal procedure?

Yes – section 2.1.4 details the vibratory grid fold-down: lock out and tag the machine, remove bolts and nuts with washers, then start the machine and operate the lever to lift the grid flares down. It also shows how to raise them back. The sequence includes removing the tag if safe to do so. The manual includes illustrations (not shown here) that identify the exact bolt positions.

Is this manual the original OEM print?

This is the factory-published Sandvik document from 2015, not a reprint or a third-party copy.

You can keep relying on forum posts and pirated PDFs that skip pages and misprint torque values, or you can get the document that Sandvik intended for the QA441. This manual sits in the cab of every well-run screen plant. Download the Factory Manual and put it on your tablet or print it out. Either way, you’ll stop wasting time chasing specs that don’t match the machine on your yard.
