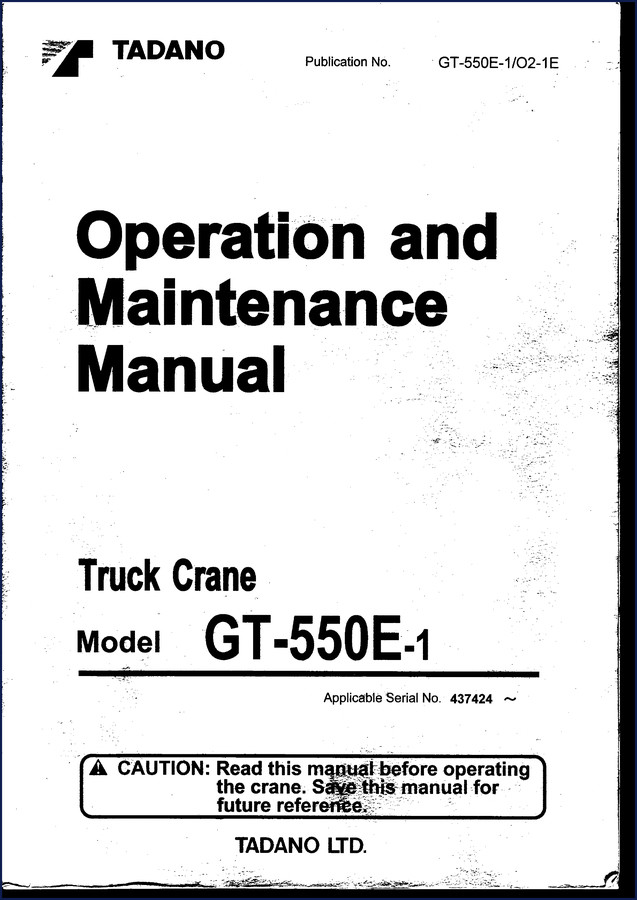

Tadano GT-550E-1 Operators Manual – Factory OEM Specs

You’re chasing an AML overload error on a GT-550E-1 crane and the aftermarket PDF skips the override key switch function. That’s how cranes get parked and bills pile up. I’ve seen it. The Tadano GT-550E-1 Operators Manual is the original factory print from Tadano Ltd. – no reprints, no third-party guesswork. Every page matches the serial number range 437424 and up. This is what the techs in the shop floor reference when the bargraph shows a red moment ratio and the customer is watching.

AML (Overload Prevention Device) Coverage

The AML unit is the brain of this crane. Page 3 in the manual lays out the names and functions of the AML main unit parts – bargraph display, display panels 1 and 2, control buttons. Each frame on the bargraph represents 2.5% moment ratio, and the manual tells you exactly what the moment ratio mark means: safe (green), notice (yellow), limit (red). If you need to know how to scroll through error messages using the scroll-up and scroll-down keys, it’s right there in the OCR excerpt. No guessing.

Control Panel Breakdown

The controls section (page 2) covers the AML override switch, override key switch, emergency outrigger control switch, and indicator lamps. These are emergency switches used to stow the boom when the AML system fails. The manual explicitly says: “For details, see the ‘Disposition of System Troubles’ section.” That’s the difference between a factory manual and a generic rewrite – they don’t cross-reference their own content.

Disposition of System Troubles: Factory Procedures

When the AML cancellation warning lamp lights up or the outrigger extension detector errors out, you need the exact procedure. The manual provides the “Emergency Outrigger Control Switch” operation – used to temporarily register outrigger extension width on the AML while sustaining crane operation. A shop manual that skips this step gets someone hurt. Page references inside the document keep you on track.

25 Pages – No Bloat, Just Specs

Twenty five pages. That’s the whole manual. No 500-page binder with half the content irrelevant to a GT-550E-1. The manual covers bargraph display, display panel 1 (jib angle display, number of part-lines of rope), and display panel 2. It also includes the AML unit’s moment display and error message handling. For a crane operator or a heavy-equipment tech, those 25 pages are worth more than an afternoon of scrolling forums.

Source Authenticity – Why OEM Matters

This is an original Tadano publication, publication number GT-550E-1/O2-1E. The document came from Tadano Ltd., not a third-party packager. I’ve seen aftermarket manuals mislabel the override key switch as a “boom stow button” – that’s how you get a crane tipped. The factory manual uses the correct terminology and serial number range. For related documentation, check the Tadano TR-500XL-4 2005 Operators Manual – Factory Specs and the Tadano TL200, TL200L 1980 Operators Manual – Crane Operation & Maintenance. Also, the TADANO TR-800XXL Operation and Maintenance Manual – Section: Air Condition [Opti] covers the optional A/C system. If you’re working on manual transmissions in other equipment, see Manual Transmission and Manual Transmission for general principles.

Frequently Asked Questions

What serial numbers does this manual cover?

Applicable serial number 437424 and up. It’s printed on page 1.

How many pages does the manual have?

25 pages.

Does it cover the AML override procedure for emergency boom stow?

Yes. Page 2 describes the AML override switch and override key switch as emergency switches to stow the boom when the AML system fails. The manual then directs you to the “Disposition of System Troubles” section for complete steps. That section includes the emergency outrigger control switch operation and how to handle outrigger extension detector errors without shutting down the crane completely. The procedure is specific to the GT-550E-1; aftermarket manuals often skip the part about temporarily registering outrigger width on the AML.

Is this a digital PDF or a printed book?

This is a factory PDF download. No reprint, no copy. You get the original file from Tadano.

Twenty five pages of factory data – that’s the difference between guessing and knowing. Get the original Tadano GT-550E-1 Operators Manual on your workbench or tablet before you touch the AML system. Download the Factory Manual now.
