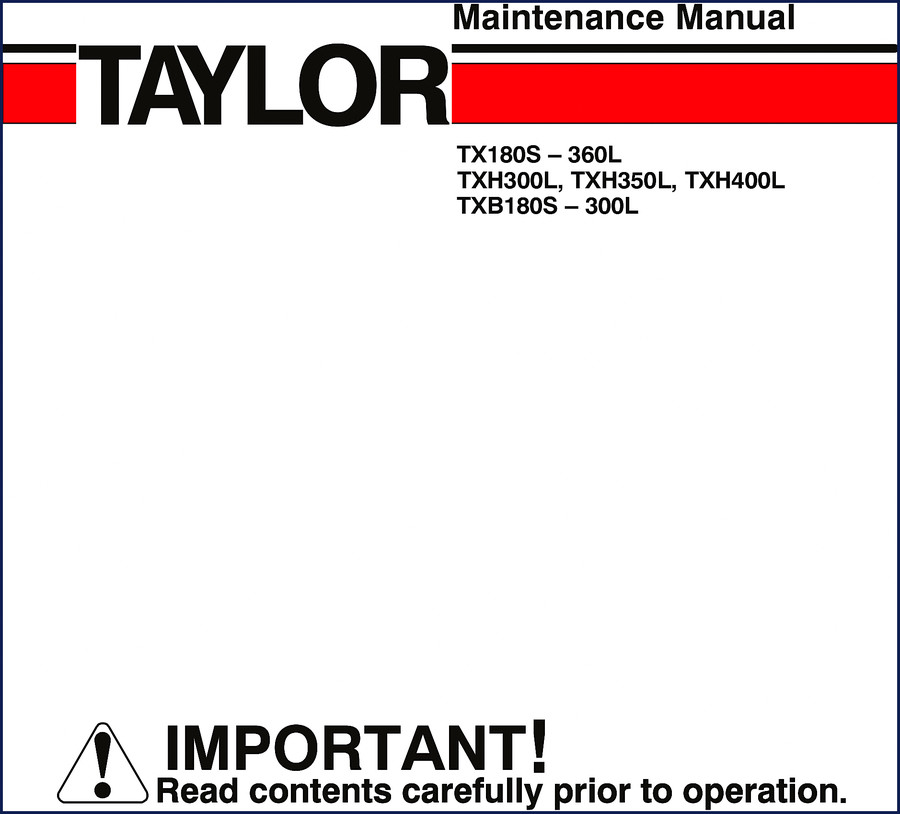

Taylor TX180S, TXH300L, TXH350L, TXH400L, TXB180S 2007 Service Manual

You’ve had it with aftermarket manuals that give you a generic torque table and call it a day. I’ve seen guys torque a head bolt to 80 ft-lbs that wanted 120 because the spec they used was from a different engine family. That’s a blown gasket and a comeback you don’t need. This Taylor TX180S, TXH300L, TXH350L, TXH400L, TXB180S 2007 Service Manual is the actual OEM document Taylor Machine Works issued. 343 pages of factory procedures, not a reprint from a third party. The warning on page 1 tells you exactly what you’re dealing with: death or serious injury from improper operation. That’s the kind of reality I want on my bench.

Engine and Fuel Systems: Factory Procedures

Section 01 covers the engine. The manual calls out the QSB circuit specifically. If you’re chasing a no-start on a TXH300L, you need the factory diagnostic path, not a guess. The fuel system section (02) includes the injection timing and fuel pump settings. I’ve seen a shop try to set timing by ear on a TXH350L — they were 4 degrees off. That’s power loss and black smoke. The manual gives you the OEM spec. Page 3 of the safety section reminds you: test hydraulic controls before using the machine. That’s not fluff, that’s survival. At the end of the day, you need the right numbers, and this manual has them.

Cooling and Transmission: Why the Specs Matter

Cooling section (05) covers the radiator, fan drive, and belt tension. If you run a TXH400L in a hot Texas yard and the coolant temp climbs, the manual walks you through the pressure test and flow check. The transmission section (09) is where most guys screw up. The cooler (9A) and electric shift (9C) have specific pressure settings. I’ve had a tech swap a solenoid on a TXB180S without checking the control circuit first — wasted two hours and a $200 part. The wiring diagrams in section 06, sheets 06-2485, give you the actual pinouts. Don’t guess. Use the diagram.

Appendices: Torque Chart and Hydraulic Pressure Settings

The back of the manual saves your bacon. The torque chart lists fastener sizes and grades with ft-lbs. The hydraulic pressure settings appendix tells you exactly what the main relief, steer relief, and brake accumulator should read. I keep a copy of that page taped to my toolbox. The PM chart tells you when to change fluids at what hours. You want to know the service capacity for the TXH300L? It’s in there. No guessing. No calling the dealer. The appendices also cover fork inspection, leaf chain care, and welding precautions — all written by the guys who built the machine.

Is This Manual for You?

If you own a TX180S, TXH300L, TXH350L, TXH400L, or TXB180S, you need this. Period. Whether you’re a shop owner tired of comebacks, a DIY mechanic who wants to keep your own forklift running, or a tech who needs the right spec the first time — this is the document. No generic procedures. I’ve used it to fix a brake control issue on a TXH350L that had stumped two other shops. The manual’s step-by-step approach to the brake control section (15) saved me a day. The wiring diagrams in section 06 (sheet 06L-0123) showed a broken ground that was intermittent. You can’t get that from a Haynes manual.

Factory OEM vs. Aftermarket: No Contest

I’ve been an ASE Master for 28 years. Aftermarket manuals are fine for oil changes. For anything with hydraulics, electronics, or safety-critical systems, you need the OEM document. This is the exact PDF Taylor released in 2007. It’s not scanned from a paper copy that lost resolution on the wiring schematics. It’s the original file. The Taylor T-180S through T-360L Maintenance Manual is related but this one is specific to the TX/TXH/TXB series with the 180S through 400L models. If you’re working on a different brand, the White Outdoor LT-5 – 700 Series Rider Service Manual might help, but for a Taylor big forklift, stick with this. The Maruti MB308 Service Manual Procedures and Repair – Section: Section 8A Wiring D is for a completely different animal — don’t mix them up. For transmission work, the Manual Transmission theory is covered in the service manual’s section 09, and the Manual Transmission disassembly procedure is in the same chapter. Use the factory diagrams, not YouTube hacks.

Does this manual cover the TXH400L’s electric shift system?

Yes, section 9C covers the electric shift with wiring schematics.

My forklift’s hydraulics are erratic. Where do I start?

Start with the hydraulic pressure settings in the appendices (near the end of the 343 pages). Check the main relief and accumulator pressures against the factory spec. Then follow the troubleshooting steps in section 22. The manual includes a hydraulic schematic with test points. I’ve seen a worn pump seal cause a 500 psi drop that looked like a control valve issue. The pressure test procedure on that page will save you from replacing parts you don’t need. If the pressures check out, move to the steer axle (section 13) and brake control (section 15) for related circuits. The manual chains these tests together logically — don’t skip steps.

You want to fix it right the first time. You want the specs that came from the factory. Download the Factory Manual and put it on your tablet next to your torque wrench. No more guessing. No more comebacks. That’s the difference between a professional repair and a hack job.
