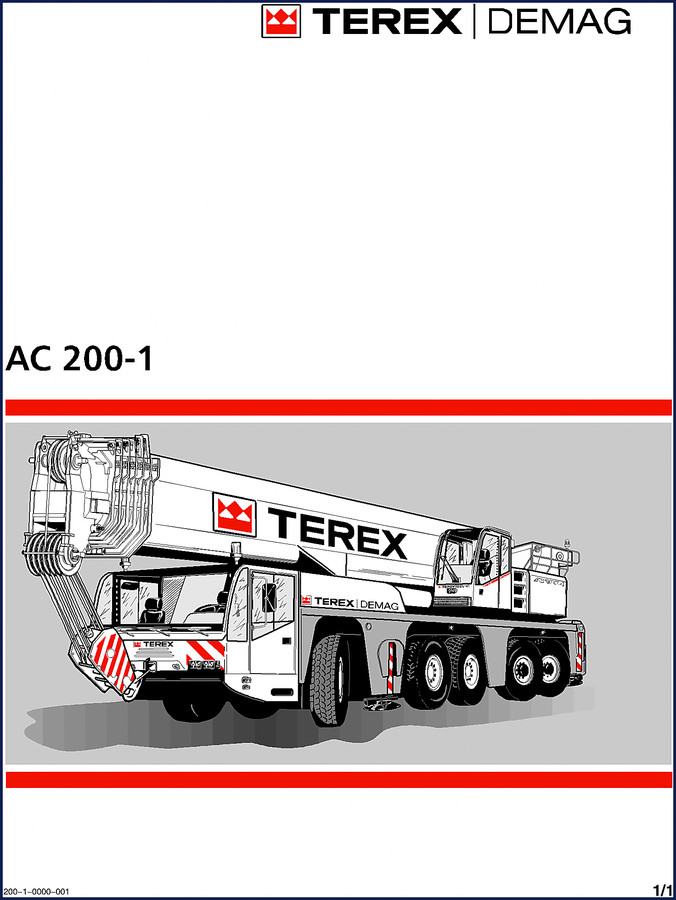

Terex Demag AC 200-1 Technical Manual – 1808 Pages of Factory Truth

You’ve got a Terex Demag AC 200-1 Technical Manual on the job site, and something’s not right. Maybe the counterweight alignment is off, or the cab hydraulics are acting up. You can’t afford to guess – one wrong torque on a swing drive bolt and you’re looking at a costly teardown. This is where the factory technical manual steps in. I’ve seen too many guys skip the safety chapter on a crane this size. Don’t be that guy. The OEM gives you the exact procedures and specs the factory uses. No paraphrasing, no missing pages – 1808 pages of original documentation.

Let me be direct: aftermarket guides for heavy equipment are a gamble. You don’t know if the torque values are copied correctly. This manual is a direct scan of the Terex Demag original. Every bolt torque, every hydraulic pressure, every wire color is factory-verified. If you’re paying for a manual, pay for the real one.

Safety Instructions: The First Section You Read

Section 1 runs from page 1 to 79. It covers everything from correct use (Korrekt bruk) to hand signals (Håndsignaler). Page 73 documents the official hand signals – both general and for work movements. If you’re running multiple cranes or have a new operator, you need this chapter memorized. The manual also covers hazard combinations when cranes work together. That’s information you won’t find in a condensed guide.

15 Counterweight Combinations Listed

Jump to section 9. The counterweight (Motvekt) chapter documents every valid combination from 0 t to 69.0 t. Each combination has its own page with assembly instructions. Page 27 starts the list with 0 t, 5.7 t, 8.9 t, and goes up to the optional 69.0 t on page 35. If you’re rigging the AC 200-1 for a job, you need the exact weight distribution. The manual tells you which plates go where.

IC-1 Cab Information System: Full Diagnostic Procedure

Section 10 covers the electronic crane information system (IC-1). It’s not a user guide – it includes system start, menu navigation, and the main screens. If the system locks up or shows an error, the manual walks through the submenus and background lighting adjustments. This is stuff you’d otherwise have to call a Terex Demag technician for.

Does the Manual Cover the Engine and Hydraulics Start-Up?

Yes. Section 5 Motor (engine) covers start procedure, warm-up of the hydraulic system, and shutdown. It includes details on the diesel particulate filter (optional) and coolant preheating. Page 5 shows the pre-start checklist. If you’re doing a cold start in a San Antonio winter (yes, it gets cold enough), you want the warm-up procedure from the OEM.

Use Factory Torque Specs – No Substitutes

Every fastener on the AC 200-1 has a specified torque. The manual provides them in the appropriate chapters. For example, swing drive bolts, wheel lug nuts, engine mounts – all factory values. I’ve seen what happens when someone uses a generic chart. Don’t learn that lesson the hard way.

For other Terex Demag crane models, check the Terex Demag CC4800 2011 Technical Manual – Official Specs, the Terex Demag AC 155 Technical Manual – Factory Specs & Dimensions, and the Terex Demag Standard Crane Technical Manual – 160 Pages of Factory Specs.

For a deeper understanding of the crane’s drivetrain components, you may want to read about Manual Transmission fundamentals on Wikipedia. Also, the gearbox section references Manual Transmission principles – the manual’s wiring and hydraulic diagrams are specific, but knowing the basics helps.

Is this manual only for the AC 200-1 model?

Yes. Covers only the Terex Demag AC 200-1.

How many pages and what format?

The manual is 1808 pages of original OEM content, scanned as PDF. Contains every section from manufacturer’s declaration to counterweight rigging. You get the exact same documentation that Terex Demag provides to their service centers. No aftermarket interpretation.

Stop guessing on that AC 200-1. Download the Factory Manual and have the right specs at your fingertips. One click, 1808 pages of truth.
