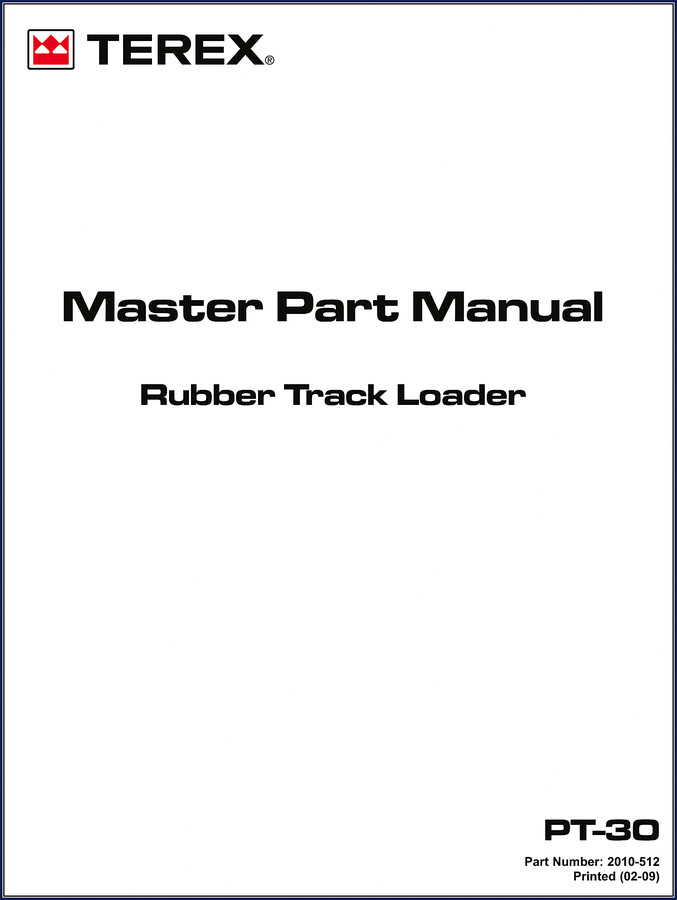

Terex PT-30 2008 Parts Catalog

If you’ve ever ordered a part for a Terex PT-30 and gotten the wrong piece because you used an aftermarket cross-reference, you know the headache. The factory part number gets superseded, the listing skips the “380” prefix, or the exploded view is from a different serial number range. This 2008 OEM Terex PT-30 Parts Catalog is the document Terex dealers pull up when they need to order exactly what fits. It’s 23 pages of straight information—no guesswork, no database switching. You get the part number, the illustration, and the note about adding the prefix 380 to every number. That little detail alone saves returns and downtime.

19 Assembly Sections Covering PT-30 Serial # TTA 03810-Current

The catalog breaks the machine into 19 separate assemblies, each keyed to serial number TTA 03810 and current as of the 2008 print date. You get the Cab (R.O.P.S.) assembly starting on page 1-A, Light Bar assembly on 2-A, optional Enclosed Cab on 3-A, Chassis on 4-A, Hood on 5-A, Radiator/Oil Cooler on 6-A, Hydraulic Reservoir on 7-A, Hydraulic Control on 8-A, Drive/Auxiliary Pump on 9-A, Engine on 10-A, Fuse Panel on 11-A, Torsion Axle on 12-A, right and left Undercarriage assemblies on 13-A and 14-A, Lift Arm on 15-A, Lift Arm Tubes and Fittings on 16-A, Quick Attach on 17-A, Quick Attach Adapter (accessory) on 18-A, and Cab Heater (optional) on 19-A. Each section has an exploded diagram with callouts and the corresponding part number list. Need to find the fuel filter? That’s in the Engine assembly on page 10-A. Want the fuse layout? Page 11-A. It’s laid out in the order you’d physically walk around the machine.

If you’re looking for related documents, the TEREX PT-30 Parts Catalog is this one, but for service procedures and torque specs you’ll want the TEREX PT-30 Service Manual. Also check the Schaeff-terex SKL 863 2003 Parts Catalog – OEM Factory Manual if you work on that model.

Service Items and Lubricants – Page 3

Page 3 lists all the fluids, filters, and greases with OEM part numbers. Engine oil filter is Perkins 140517050, primary air filter is Donaldson P821575, secondary air filter Donaldson P822858, engine fuel filter Perkins 26560017. Fan belt is Perkins 2010-117. Coolant is ethylene glycol long-life (part 0300-766 for 1-gal, 0402-841 for case). They also list engine oil (10W-30) in quarts and gallons, and multi-purpose lithium grease (0300-769 for one tube). The hydraulic section gives the hydraulic oil filter, hydraulic oil in 5-gallon (0402-839) and 55-gallon (0402-840) drums, plus seal kits for the loader valve and bucket/tilt cylinder. If you’re doing a full fluid change, this page saves you from buying the wrong filter because the parts counter guy reads a superseded number.

Why a Factory Parts Catalog Beats Aftermarket Databases

I’ve seen aftermarket sites list a part number that has been replaced three times, or they omit the prefix because “the system will figure it out.” On page 2 of this catalog, it says in bold: “When ordering parts, always add the prefix 380 to part numbers listed in this manual.” That’s a factory requirement. Miss it, and you get the wrong part. Aftermarket catalogs also don’t show the serial number break – this manual is for serial number TTA 03810 and higher. If your PT-30 is older, you need a different catalog. That’s why you want the OEM document, not a third-party compilation. Understanding how OEM parts catalogs fit into the broader Automotive Industry Overview helps you appreciate the value of factory documentation. For background on why manufacturers use serial number breaks, refer to Automotive Industry Overview.

Who Should Use This PT-30 Parts Catalog

This catalog is for anyone who owns or maintains a Terex PT-30 rubber track loader: DIY owners, rental yard mechanics, mobile service techs, dealers. If you have a machine with serial number starting at TTA 03810 and built around 2008 (or later production within that series), this is your part-number reference. Beginners can use it because the exploded views show exactly which bolt goes where – you match the callout number to the list. Just remember to add 380 to the front of each part number. I don’t recommend this for someone who hates reading drawings; but if you can match a number to a picture, you’re good.

What You Won’t Find in This Catalog

This is a parts catalog, not a service manual. It does not tell you torque specifications, adjustment procedures, or diagnostic steps. For that, you need the factory service manual. But for ordering the correct replacement part – from the cab heater to the drive pump – this is the single source. No fluff, no generic diagrams. 23 pages, printed in 2008, and still exact for the serial range listed.

Does this catalog include torque specifications?

No, this is a parts catalog, not a service manual. You need the service manual for torque specs.

How do I know if my PT-30 is within the serial number range TTA 03810-Current?

Locate the serial number plate on your PT-30 – it’s usually on the frame near the operator station or on the rear of the chassis. If the number is TTA 03810 or higher, this catalog applies. If it’s lower than 03810, your machine may have different parts for some assemblies (Terex made changes before that serial break). The manual was printed in October 2008, so “Current” means machines built up to that date. For machines built after 2008, you should contact a Terex dealer to verify that no part numbers changed. Most components carry forward, but the hydraulic control and undercarriage assemblies occasionally get updated. Always cross-check the part number when ordering – and don’t forget to add the 380 prefix.
