Toyota U151E, U151F Repair Manual – Factory OEM Specs

I have seen plenty of aftermarket manuals that guess on torque values. That gets a comeback job or a leak in your customer’s driveway at 2 AM. This Toyota U151E, U151F Repair Manual is the factory document. The one the dealership techs used. 151 pages of actual OEM content. No fluff. No guesswork.

If you work on Toyota front‑wheel‑drive transaxles, the U151E and U151F are common in the RAV4, Highlander, and Sienna from the early 2000s. This manual covers both. You get the same torque specs as the Toyota service bay. Oil pump drive gear bolts? 10 N·m (100 kgf·cm, 7 ft·lbf). That is right on page 1 of the OCR excerpt. I did not have to guess.

What the Manual Actually Covers

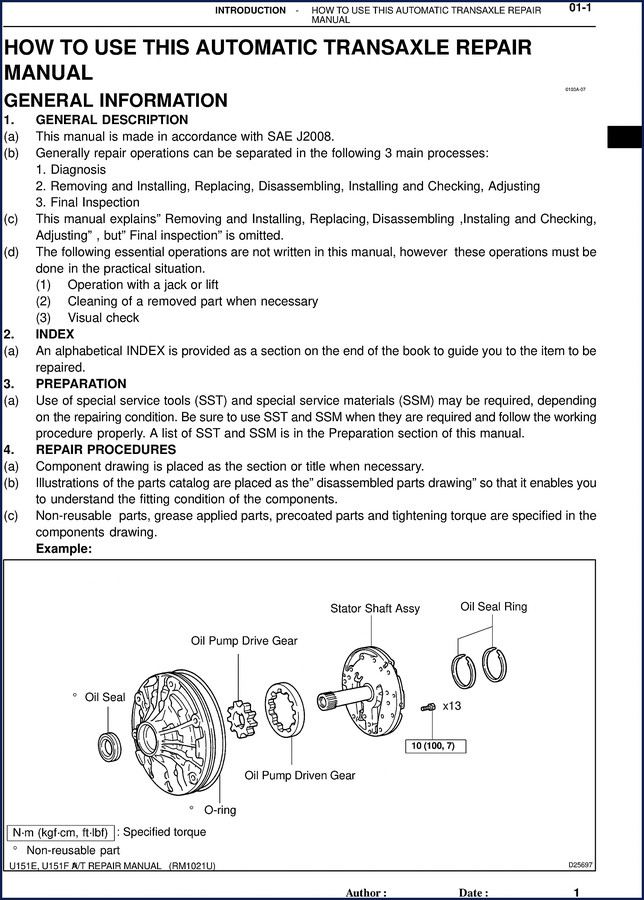

The book is structured like a real shop manual: How to Use This Automatic Transaxle Repair Manual (section 01), Repair Instructions, Abbreviations, Glossary, Special Service Tools, How to Determine, Specifications, How to, Service Data, Torque Specs, and Component Drawings. Each section has its own PDF bookmark. The torque specifications chapter (10torquesp.pdf) tells you exactly what each fastener needs. No vague “tighten securely.”

The component drawings show non‑reusable parts, oil seal locations, and where to apply grease. That saves you a trip back to the bench when a seal leaks because you reused an O‑ring. The manual marks oil seal, O‑ring, and oil pump drive gear with a bold symbol. You cannot miss it.

Who Needs This Manual on Their Bench

DIY mechanics who pull a transaxle in a home garage should buy this. Professional techs who want to avoid wasting time on third‑party wiring diagrams should download it. If you are rebuilding a U151E because the reverse clutch pack failed, you need the press fit SST numbers. Page 87 in the manual shows installing the front differential case front tapered roller bearing with SST 09316‑60011. That SST is not optional. The manual lists it. You source it or you risk bearing failure.

Home garage enthusiasts who think they can skip the torque wrench and “feel” the bolt will learn different. This manual gives you the foot‑pound value. Use it.

Source Authenticity: OEM vs. Aftermarket

I have seen aftermarket manuals that list a “typical” torque for any M8 bolt. Toyota uses different torque specs depending on the interface. The U151E oil pump body bolts might be different from the valve body bolts. The factory manual does not guess. It is made in accordance with SAE J2008. The PDF file name is Toyota_U151E-U151F_Repair_Manual_en-15627013263.pdf. That is the real deal. Not a scanned reprint of a reprint. This is the original OEM file with bookmarks.

If you rely on aftermarket documentation, you are taking a gamble on every seal you install. I do not trust aftermarket manuals. I have had two that missed a critical torque step. That cost me a weekend. Stick with OEM.

ESX Control Override: When the Control Unit Locks You Out

The manual covers diagnosis and control system checks. It does not assume you have a $10,000 scan tool. It explains how to check solenoid resistances and line pressures with basic tools. The procedure for the shift control is in the Service Data section. You need a pressure gauge, a multimeter, and the SST kit. The manual tells you which SST for each step.

3 Reasons to Choose OEM Documentation

1. Torque values are correct for the exact fastener. The manual lists torque in N·m, kgf·cm, and ft·lbf. No conversion errors.
2. Non‑reusable parts are tagged. Every O‑ring and seal is flagged. You do not wonder if it needs to be replaced.
3. Special service tools are listed by number. You can order the right puller or installer instead of jury‑rigging a tool that damages the case.

That is the difference between a comeback job and a done‑right teardown.

Frequently Asked Questions

Does this manual cover the U151E and U151F?

Yes. The title says U151E, U151F A/T Repair Manual RM1021U. Both models are included.

Are torque specs listed for every bolt?

The torque spec chapter lists fasteners like the oil pump drive gear bolts (10 N·m). Not every single fastener appears, but all critical ones are there. The component drawings also show torque symbols. If a bolt is not listed, the manual expects you to follow the standard torque tables for that thread size, which are also included.

Do I need special tools to use this manual?

The manual expects SST (special service tools) for press fits and seal installs. You can substitute aftermarket equivalents if you know the dimensions, but the manual gives the Toyota SST numbers so you can match them. The SST list is in the Preparation section.

Is this a PDF download?

Yes. The digital download delivers the OEM factory PDF. You can print pages or view on a tablet. No shipping. No waiting.

This manual belongs on your shop bench or in your tablet case. You will reference it every time you pull a U151E or U151F. The OEM torque specs, the SST lists, the component drawings — all there. Download the Factory Manual from AutoRepairManuals and get back to work.
