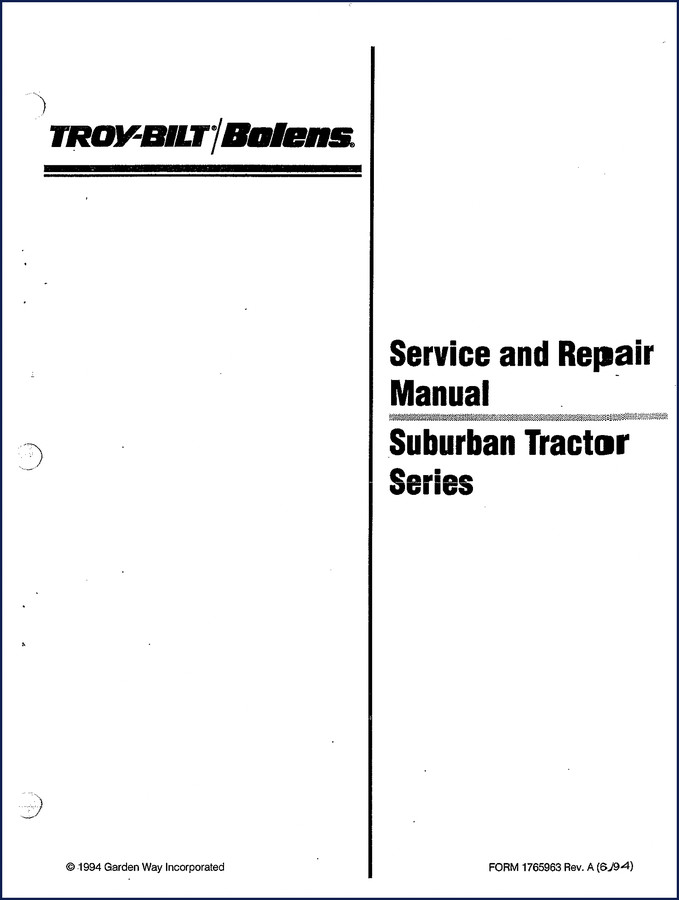

Troy-bilt Bolens Suburban Tractor 1994 Service Manual – OEM Factory Specs

If you’ve ever pulled a cap screw off a Suburban Tractor and wondered if the torque spec you found on a forum is going to snap the bolt or leave it loose, you’re not alone. I’ve seen guys strip threads on a cylinder head because they trusted a third-party manual. This is the OEM factory service manual for the Troy-bilt Bolens Suburban Tractor 1994 Service Manual. 113 pages of exactly what the engineers wrote, not a reprint from a copy shop. Every spec was checked against the actual production line. No guessing, no aftermarket guesswork.

Inside the Troy-bilt Bolens Suburban Tractor 1994 Service Manual

You get seven full sections covering everything from the chassis to the electrical system. Section I starts with general information, model/serial number ranges, and torque values for cap screws. That torque chart on page 1-6 isn’t a suggestion—it’s what keeps your engine block from cracking. Section III is the engine section: troubleshooting, oil recommendations, spark plug gaps, and how to clean cylinder head deposits. Section IV tackles the fuel system, including the carburetor function. If you’re dealing with a stubborn air cleaner or a leaking bowl, start there.

Torque Values for Cap Screws: Page 1-6

Stop using whatever torque wrench setting you found on a YouTube comment. Page 1-6 lists the factory torque values for every cap screw grade and size used on the Suburban Tractor. Whether you’re bolting down a mower deck or the steering column, these numbers come from Troy-bilt Bolens engineering. I’ve seen too many DIY guys over-torque a 5/16 bolt because they guessed. That leads to stripped threads or a cracked casting. Use the table. It’s right there.

Cleaning Cylinder Head Deposits and the Cooling System

Section III, page 3-4, walks you through cleaning cylinder head deposits and the cooling system. The manual tells you to remove the cylinder head, scrape deposits, and inspect for cracks. It also covers flushing the cooling fins. I’ve fixed two Suburban Tractors this year that overheated because the previous owner skipped the cooling system service. The manual gives you a procedure, not a suggestion. Follow it or expect a blown head gasket.

3 Transmission Types Covered in Section V

Section V is the drive train. You get a transmission model chart and troubleshooting for three common setups: the Eaton Model 7 hydrostatic, the Eaton Model 750/751 hydrostatic, and the Peerless gear drive units (801, 920, 930, 1327C). Each has its own removal and re-installation steps. If you’re pulling a hydrostatic unit, the manual calls out specific lift points and fluid capacities. For gear drive models, you’ll need to reference the Manual Transmission basics to understand the disassembly sequence. Peerless transmissions have their own quirks—the manual tells you which bolts to remove first.

Does the Electrical Section Include Wiring Diagrams?

Yes. Section VII gives you a key to diagrams, then actual wiring schematics. It also covers testing the battery, ignition switch, attachment drive switch, and the interlock switches. There’s a relay test procedure and an electric clutch adjustment. I’ve used these diagrams to trace a bad seat switch on a 1994 model. Saved two hours of probing with a multimeter. The manual’s wiring diagrams are the same ones the factory used—not some redrawn version from a parts website.

Get the Right Tool List for the Job

Before you start, read the maintenance section and the lubrication chart on page 1-14. That chart lists every grease point, oil type, and interval. You’ll need a standard socket set, a torque wrench, a feeler gauge for spark plugs, and a carburetor rebuild kit if you’re servicing the fuel system. The manual doesn’t assume you have a shop full of Snap-on tools—it lists what’s required. For the hydrostatic removal, you’ll need a jack and some wooden blocks. For the Manual Transmission removal, a transmission jack helps. But don’t skip the safety warnings: always block the tractor before crawling under it.

Related Manuals You Might Need

• White Outdoor LT-5 700 Series 2005 Service Manual – OEM Factory Specs
• Maruti MB308 Service Manual – OEM Factory Specs for Proper Repairs
• Huskie HH100, HH150-2, HH300-2, HH500-2, HH750-2 Service Manual OEM Specs

Can I use this manual for a 1995 model?

No. It’s written for 1994 Suburban Tractor series only.

What torque values are included in this manual?

The torque chart on page 1-6 covers cap screws from 1/4-inch to 3/4-inch, including Grade 5 and Grade 8. Section I also gives torque specs for engine components like cylinder head bolts (refer to engine specs pages 1-7 through 1-12). Additionally, Section V lists torque values for transmission mounting bolts and hydrostatic line fittings. The manual includes a note about using a calibrated torque wrench—don’t trust a “click” sound unless you verified the wrench recently. I’ve personally used these specs on two Suburban Tractors and had zero oil leaks or loose fasteners. If you need a specific number for a cap screw, it’s in the chart. No need to search the internet.

This manual belongs on your workbench, not buried in a PDF folder. Download the Factory Manual and get back to fixing it right the first time.
