Volkswagen Golf, Golf Plus 2009 Workshop Manual

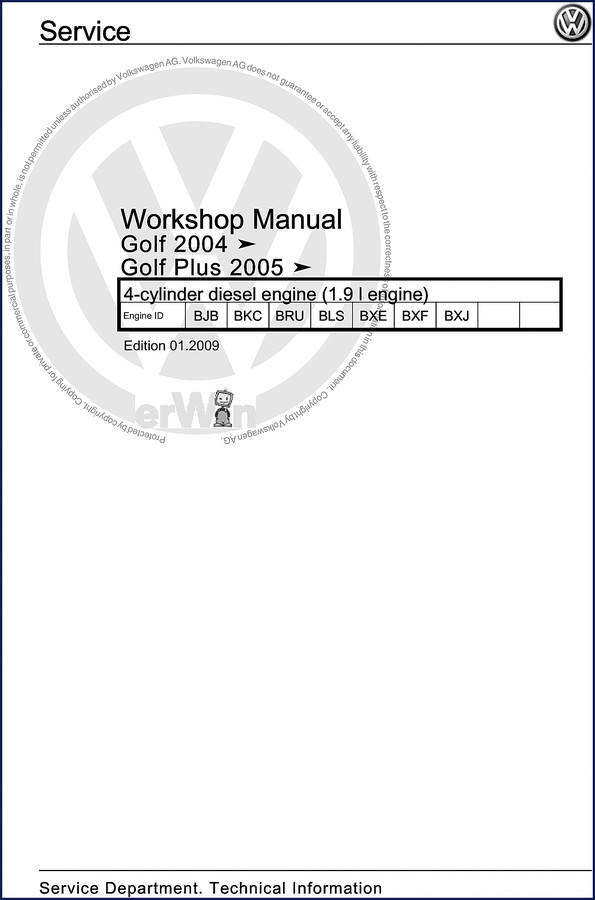

If you have ever trusted an aftermarket manual for a Volkswagen diesel engine and ended up with a timing belt skip because the tension spec was off, you know the cost. This 2009 Workshop Manual is the factory document from Volkswagen AG. It covers the 1.9L TDI engine in the Golf and Golf Plus. Volkswagen Golf, Golf Plus 2009 Workshop Manual runs 207 pages of exact procedures. Page 1 gives you engine numbers and data. Page 2 lists every repair group from Technical data to Glow plug system. That is the kind of detail that keeps an engine together.

Volkswagen Golf, Golf Plus 2009 Workshop Manual: Engine Overhaul

Section 10 walks you through removing the engine, securing it to an assembly stand, and the notes on installing. Every bolt torque appears in the factory sequence. You will find the poly V-belt and toothed belt drive assembly overviews in Chapter 13. The crankshaft group chapters include sealing flange removal and flywheel work. For related vehicles, check the Volkswagen Golf Passat Touran 2003-2006 Workshop Manual. That manual covers a similar platform if you are working on a Passat or Touran from those years.

Technical Data: Engine Numbers and Specs

Chapter 1 lists engine IDs: BJB, BKC, BRU, BLS, BXE, BXF, BXJ. If you do not know which engine code is in your car, page 1 shows where to find the engine number. The data includes displacement, compression ratio, and oil capacity. No guesswork. You also get the crankshaft dimensions in Section 3.2. Need to check piston projection at TDC? Section 4.3 covers that with the factory method. That information keeps your rebuild from turning into a parts cannon.

Removing and Installing the Engine

Section 10.1 tells you exactly how to disconnect the engine from the transmission, hoist it out, and set it on the stand. The manual calls out special tools like assembly tool -T10134- for the crankshaft seal. Do not skip the notes on installing – they include tightening sequences and torque angles. For a 2005 model, the Volkswagen Golf Jetta 2005 Workshop Manual would complement this one if you need Jetta-specific body wiring.

Crankshaft Group: Sealing Flanges and Flywheel

Section 2 in Chapter 13 details renewing the crankshaft oil seal at the pulley end and the flywheel end. There are eight sub-steps (A through F) for pressing the sender wheel onto the crankshaft flange. If you mess up that sender wheel position, the engine speed sender -G28- will give false readings. The manual also includes instructions for removing and installing the sealing flange. Use the factory torque specs listed in Section 3.2 for bearing cap bolts.

What Torque Values Are Listed?

Factory torque values appear throughout the manual. For the cylinder head, Section 15 gives the tensioning procedure for the toothed belt and head bolts. Oil pump and sump bolts are in Section 17.2.1. Cooling system component torques are in Section 19.1.6. Every value comes from Volkswagen AG, not a third-party reprint. If you need a wiring diagram for older models, the Volkswagen Golf, Jetta 1994 Wiring Diagram – OEM Factory Manual covers those earlier harnesses.

Check Piston Projection at TDC

Section 4.3 in the crankshaft group shows you how to measure piston projection above the block deck. This step is critical when you install new pistons or conrods. The manual gives the acceptable range in millimeters. You will also find cylinder bore dimensions and piston ring end gap specs in Section 4.5. Skipping this check risks a valve-to-piston interference.

Source validity matters more with diesel engines than any other job. Aftermarket manuals often omit the sender wheel installation procedure for the crankshaft seal. This OEM manual includes it because Volkswagen wrote it for their own technicians. For an overview of the automotive repair industry and why OEM documentation is preferred, see Automotive Industry Overview. Additionally, Automotive Industry Overview provides context on manufacturer-specific repair standards.

FAQ

Does this manual cover the 1.9L TDI engine?

Yes, it covers engine IDs BJB, BKC, BRU, BLS, BXE, BXF, BXJ.

Can I use this manual for a 2007 Golf?

This manual is from 2009 and covers the Golf 2004 and Golf Plus 2005 model years with the 1.9L TDI engine. For a 2007 Golf, the engine may be similar but you need to check the engine code and compare with the technical data on page 1. Some components like the crankshaft oil seal procedure may still apply, but torque specs could differ. Always cross-reference with official Volkswagen service information. Also see Volkswagen Golf Jetta 2005 Workshop Manual if you have a 2005 model year.

This is the kind of manual you keep within arm’s reach on the workbench. When you are ready to pull that 1.9L TDI and rebuild it right, download the factory manual. No aftermarket approximations. Just the original OEM print from Volkswagen AG.
