Xtreme XR2045 2011 Parts Catalog

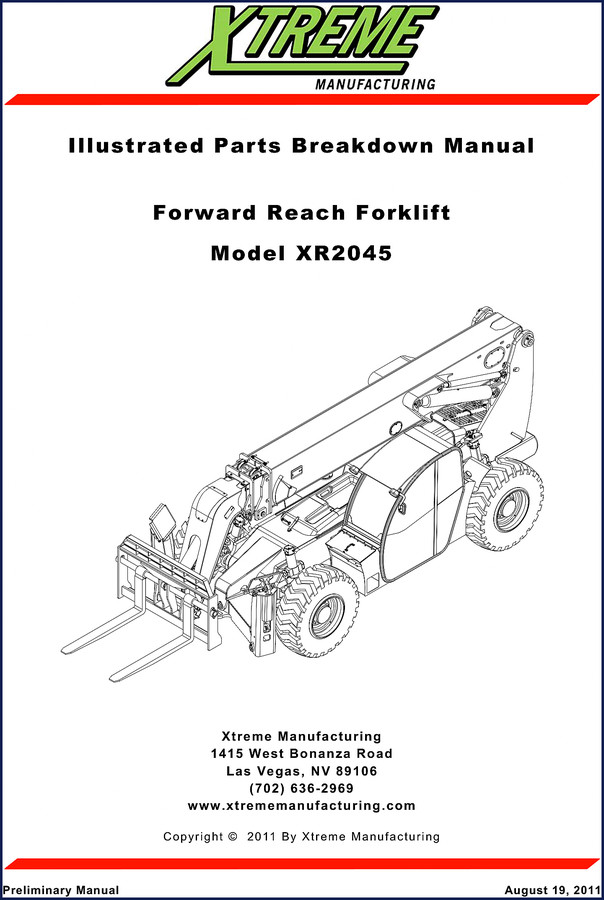

Nothing burns my ass more than a third-party parts book that shows the wrong seal for a hydraulic cylinder. You lose a day, pay return shipping, and the machine sits. The Xtreme XR2045 2011 Parts Catalog is the factory-issued Illustrated Parts Breakdown Manual for the Forward Reach Forklift Model XR2045. 338 pages, published August 19, 2011, from Xtreme Manufacturing in Las Vegas. If you work on these machines, this is the only source you should trust for part numbers.
What the Xtreme XR2045 Parts Catalog Actually Covers
Every section of the machine is broken down. Section 2 – Chassis covers Basic Assembly, Final Assembly, Chassis Engine, Axles, and Covers. Pages 2-2 through 2-24. Section 4 – Engine includes the Engine Trans Assy breakdown in two views. Section 7 – Hydraulic System runs 50 pages (7-1 through 7-50). That tells you how complex the hydraulic circuit is. Section 8 – Electrical System, Section 9 – Boom (with Inner, Mid, Outer Boom assemblies), Section 10 – Cab & Consoles, Section 11 – Boom Attachments. All of it.
Section 4 – Engine: Get the Right Part for the Block
Need a head gasket for the XR2045? The Engine Trans Assy on pages 4-2 and 4-3 shows every component. The catalog uses multi-view breakdowns – 1 of 2 and 2 of 2 – so you see the full assembly. Each part has an Xtreme part number. Do not trust an aftermarket cross-reference. I have had guys bring me the wrong oil pan because a generic book listed a similar engine. This catalog is specific to the XR2045. For the internal combustion engine fundamentals, you can reference Internal Combustion Engine but for the actual parts, use this book.
7 Systems Covered by the Factory Index
Beyond the engine, the manual covers: Steering, Brakes, Wheels & Tires (Section 6), Hydraulic System (Section 7), Electrical System (Section 8), Boom (Section 9), Cab & Consoles (Section 10), and Boom Attachments (Section 11). Plus Sections 1 through 3 for General Info, Chassis, and Labels & Load Charts. An Alphabetical-Numerical Parts Index at the back lets you look up any part number fast. That index alone is 90 pages.
Use the Alphabetical-Numerical Parts Index Correctly
Too many guys flip through pages randomly. This manual has a List of Effective Pages (page A) that tells you exactly which pages are current. Then the Alphabetical-Numerical List of Parts Breakdowns (Section 6 in the front) gives you a roadmap. If you are ordering a part for the boom, find Section 9, locate the specific subassembly (9-1 Boom Assy, 9-2 Inner Boom, etc.), and read the part number. Write it down. Do not rely on memory. The Automotive Industry Overview has standards, but this manual is specific.
Aftermarket Catalogs: What They Get Wrong
Aftermarket catalogs reuse images from different models. They miss design changes. The Xtreme XR2045 2011 Parts Catalog includes Service Bulletins (page B) and Design Change Notices (page C) that have been incorporated. You get the latest revision. Aftermarket books do not. If you order a tie rod end from a generic source, you might get the old design that doesn’t fit the updated knuckle. This catalog shows the current part.
Frequently Asked Questions
- Is this a service manual with repair steps?
- No. This is a parts catalog — exploded views and part numbers only.
- How many pages does it have?
- 338 pages, as listed in the List of Effective Pages.
- Does it cover the engine?
- Yes, Section 4 covers Engine and Transmission Assembly across pages 4-2 and 4-3. The Engine Trans Assy breakdown shows every bolt, seal, and gasket with Xtreme part numbers. If you are rebuilding a motor for your XR2045, you need this to order the correct components. Aftermarket pistons never match OEM specs — this catalog gives you the exact Xtreme part. I have seen too many jobs held up because a guy ordered a “universal” ring set. Stop doing that. Get the factory numbers.
- Can I use this catalog to order parts for a different forklift?
- This manual is specific to the XR2045 model. Other Xtreme models like the Xtreme XR2450 2011 Parts Catalog or Xtreme XR842 2006 Parts Catalog have separate catalogs.
Stop wasting time with bad parts. Download the Factory Manual from AutoRepairManuals and get the exact part numbers from Xtreme Manufacturing.
