Yanmar 1640E, 2012 2008 Parts Catalog

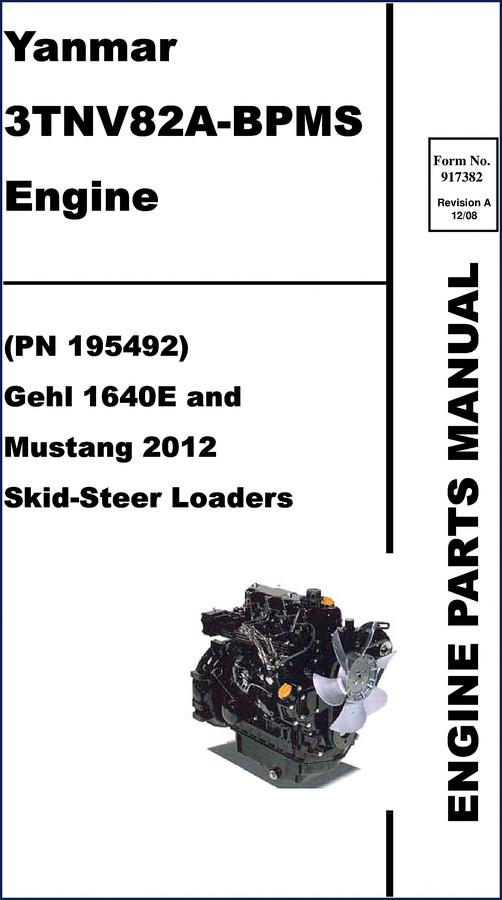

Nothing sinks a Saturday rebuild faster than ordering a piston ring set that doesn’t match your crank throw. I’ve seen it. You pull the pan, measure the bore, then find the part number you ordered belongs to a different engine suffix. That’s why this Yanmar 1640E, 2012 2008 Parts Catalog lives on my bench. It’s the OEM source – not a recompiled aftermarket PDF that swapped camshaft illustrations between model years. 42 pages, published 2008, covering the 3TNV82A-BPMS engine. If you’re tearing down a Gehl 1640E or Mustang 2012, you stop guessing here.

Cylinder Block, Gear Housing, and Flywheel Housing

These three sections open the catalog. Cylinder Block shows the bare block, sleeves, and liner specs. Gear Housing covers the front timing cover and idler gear assembly – critical if you’ve sheared a dowel pin because someone used the wrong bolt. Flywheel Housing and Oil Sump includes the rear main seal housing and the oil pan gasket. Each exploded diagram carries the Yanmar part number, not a cross-reference from a third-party warehouse. I’ve watched guys try to match a pan gasket by measuring bolt holes. That’s how you end up with a leak on Monday morning.

Camshaft and Crankshaft – Bottom End Breakdown

Camshaft and Driving Gear section lists the cam gear, thrust plate, and the timing mark locations. Crankshaft and Piston gives you the piston ring set, wrist pin, and rod bearing part numbers. If you’re rebuilding a 3TNV82A-BPMS that overheated, the piston-to-cylinder clearance data is in here. The crank journal widths are specified – don’t trust a micrometer if you don’t know the factory tolerance. These pages save you a second teardown.

Cooling Water System and Fuel Injection Valve

Cooling Water System covers the thermostat housing, water pump, and bypass hose routing. Aftermarket catalogs often omit the smaller seal inside the thermostat bypass. This one doesn’t. Fuel Injection Valve shows the injector nozzle assembly and the copper gasket – two parts that get replaced as a set. I’ve seen a $200 injector job turn into a $900 head job because someone reused the copper washer and lost compression. Don’t be that guy.

Why the OEM Parts Catalog Beats Aftermarket Diagrams

Aftermarket manuals combine engines from different equipment lines and call it close enough. This catalog was printed by Yanmar specifically for the 3TNV82A-BPMS used in Gehl 1640E and Mustang 2012. The part numbers in the Suction Manifold and Air Cleaner section won’t send you a filter that fits a boat engine. The Fuel Line routing shows the exact clips and clamps. If you’ve ever ordered a fuel return line that was six inches too short, you understand. Automotive Industry Overview standards for documentation exist for a reason.

Three Systems That Often Get Misordered

First – the Governor. It’s a mechanical unit on this engine, and the spring sets are specific to rpm range. Second – the Starting Motor. The catalog lists the Bendix drive and solenoid separately. Third – the Tool and Gasket Set page. Always order the complete gasket kit listed there, not individual head gaskets from a bin. The LUBRICATION OIL SYSTEM section also shows the oil cooler lines – a common failure point.

Torque values for the cylinder head and main bearing caps are listed at the back of the catalog after the Generator section. I don’t have a page number to give you because the index is by assembly, not page count. But it’s there – factory spec, not a generic chart. Use it.

Does this manual include torque specifications for the cylinder head?

Yes. Torque values for the cylinder head bolts and main bearing caps are listed in the rear torque specs section.

Is this catalog specific to the Gehl 1640E or the Mustang 2012?

It covers both. The same Yanmar 3TNV82A-BPMS engine is used in Gehl 1640E and Mustang 2012 skid-steer loaders. Parts are identical.

How many pages and what year was this published?

42 pages, published 2008 by Yanmar. It’s not a reprint – original factory scan.

Can I use this catalog for a different engine model or a different equipment brand?

No. This catalog is strictly for the 3TNV82A-BPMS. While some components like the injection pump might physically look similar to other Yanmar engines, the part numbers and internal clearances differ. Using it for a 3TNV88 or a different skid loader will lead to wrong parts. Order the correct manual for your engine serial number. For related factory-correct parts catalogs, see Yanmar 1640E 2012 Parts Catalog – OEM Factory Specs, Ammann Yanmar B12 B17 1991 Parts Catalog – OEM Factory Specs, or Yanmar YB271, B27 1994 Parts Catalog – OEM Factory Specs.

Every time I’ve rebuilt one of these 3TNV82A-BPMS engines, I come back to this catalog for the camshaft gear alignment marks and the fuel injection valve torque sequence. Aftermarket diagrams swap the coolant flow direction – this one doesn’t. If you need to verify the oil pump drive gear part number, it’s in the LUBRICATION OIL SYSTEM section. Automotive Industry Overview documentation quality matters when you’re holding a $700 crankshaft. Download the Factory Manual.
